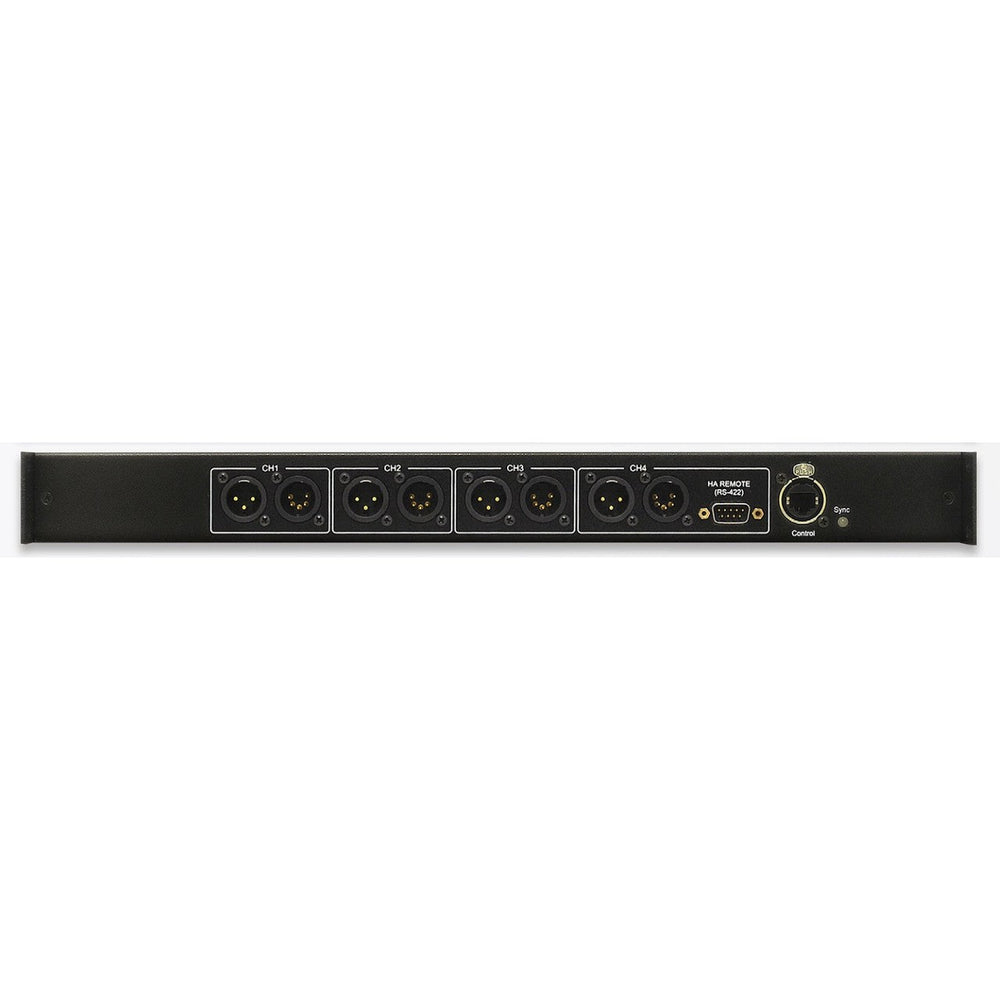

fiberplex DMX4i LightViper DMX Input Unit

The LightViper DMX4 system is comprised of a DMX4i input box and a DMX4o output box.
These units are accessories for the LightViper Series 32 product line and are not stand alone products.
They need to be connected to an existing LightViper Series 32 system to function. The DMX4 will allow the user to send 4 universes of DMX lighting control from FOH to Stage, or 3 universes of lighting control
PLUS Yamaha HA control from FOH to Stage. DMX connections on the units can be made via 3-pin XLR or 5-pin XLR. The Yamaha head amp control input / output is connected via a DB9 connector.
The connection to the LightViper Series 32 system is made via the rear panel EtherCon connector. Power for the DMX units comes from this connection to the LightViper Series 32 devices at each end. There is an LED sync indicator on each unit which indicates the sync status of the units. Solid green indicates sync is present, off indicates there is no sync or unit is off.

Key Features

• Allows DMX lighting control and Yamaha HA remote control to be transported on existing input (return) fiber along with audio data on a LightViper Series 32 system
• 3-pin XLR connectors: 4
• 5-pin XLR connectors: 4
• DMX4i = Input Device

Technical Specifications

Operating Temp: 0 to +50°C ambient temperature.
Sync LED: LED (green) indicates the RJ45 link is OK, LED (red) indicates problem with RJ45 link, LED (off) indicates no power.
AC Power: N/A
Max Current Rating: VIM-MY32M 3.5 W from RJ45 host unit
Control RJ-45 connector for logic level control, CMOS or TTL at 2 MHz max per channel.
DMX Data: Single Direction, fully complies with the USITT DMX512 Specification
Dimensions: DMX4 1 Rack Unit X 6.5" (165mm) Deep
Weight: DMX4 9 lbs (4 Kg) Packed for shipment
