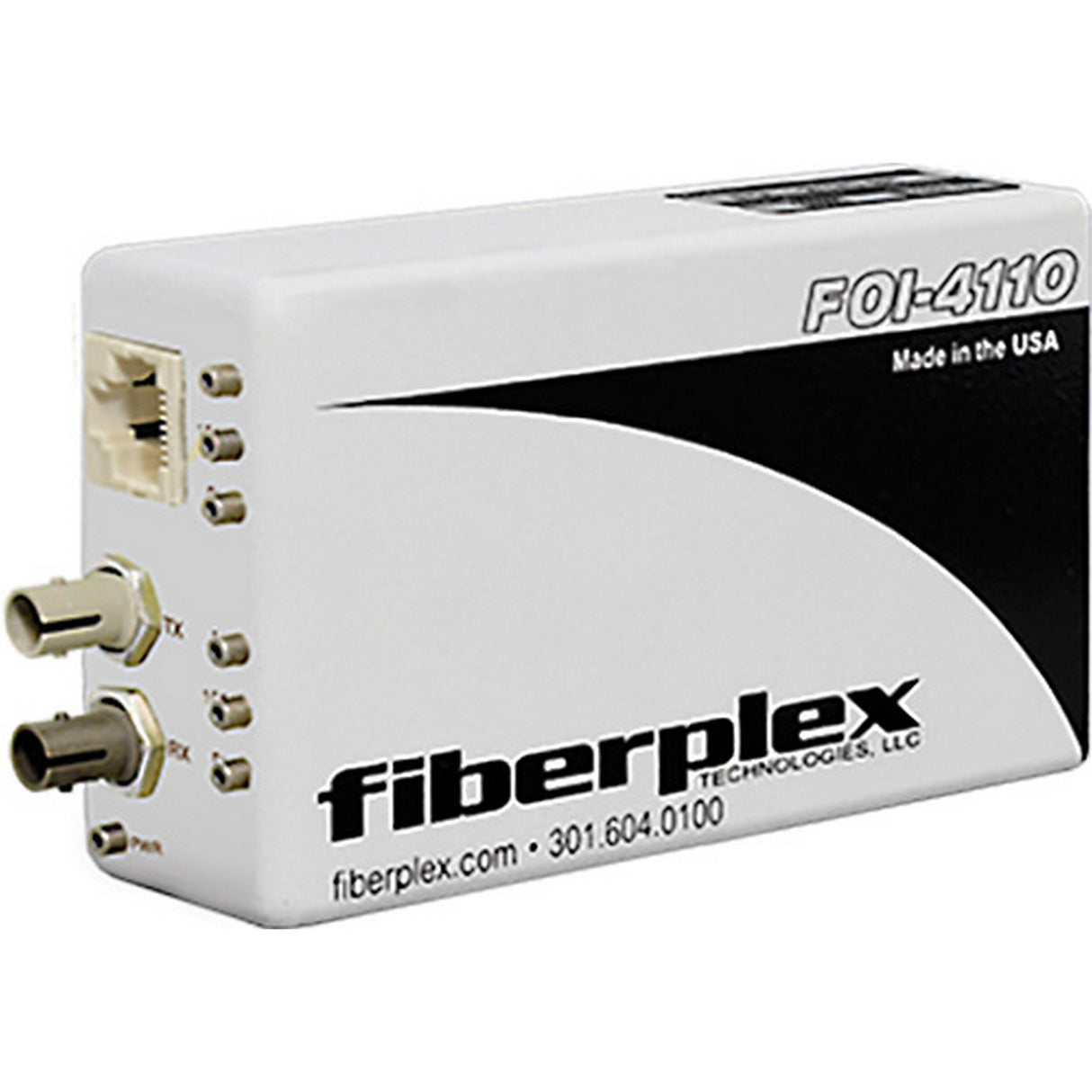

Fiberplex FOI-4110-W-ST Isolator/Media Converter
Fiberplex FOI-4110-W-ST Isolator/Media Converter
Free Shipping
Fiberplex FOI-4110-W-ST Isolator/Media Converter
The Fiberplex FOI-4110 is a flexible solution for the converting 10BASE-T to 10BASE-FL, and 100BASE-TX to 100BASE-SX or just plain extending your copper Ethernet signal. Auto MDI/MDIx enables users to use either a straight-through or crossover cable for any LAN configurations and will adjust polarity +/- and TX/RX automatically. The multimode variant of the FOI-4110 uses 820nm optics as a low-cost solution and provides backward compatibility with legacy devices that have a 10BASE-FL interface.
The units will have an automatic MDI/MDIX switch over capability that allow users to use either a straight or crossover cable for all LAN configurations. This eases the installation process for simple plug and play.
The units can be used in areas of high electrical noise or in and out of RF shielded enclosures. The fiber optic cable is not susceptible to interference caused by impulse noise, crosstalk, or EMI. FiberPlex recommends āRā units for high security applications because they have added filtering and shielding for RFI suppression.
FOI version units can be mounted in several redundant powering chassis; rack and wall mount options including Tempest and NEMA alternatives.
Key Features
- Extends 10/100BASE-TX Ethernet up to 1.2 miles (2 km) over multimode fiber and 12.4 miles (20 km) over singlemode fiber
- Optical interface options include ST, SC, and FC
- Compliant with IEEE 802.3, TIA/EIA-785
- Optically compatible with Ethernet optical standards
- Rugged metal enclosures with RFI shielding
Technical Specifications
Power Requirement
Voltage Range
7 9 12 V
Supply Current
400 - mA
Environmental
Storage Temperature
-40 - 85 Degrees C
Operating Temperature
0 - 50 Degrees C
Data Rate
10BASE-T 10 Mbps
100BASE-TX 100 Mbps
Line Encoding
10BASE-T Manchester
100BASE-TX MLT3 (Multi Level Transition 3)
Interface Connector
RJ-45
Case Dimensions/Weight
4.5 in (114 mm) 1.453 in (37 mm) 2.562 in (65 mm) 2 lb (0.9 kg)
Item Includes
1x Fiberplex FOI-4110-W-ST IsolatorMedia Converter for 10 / 100Base-T Ethernet / 100Base-FX & Multimode ST Optics
