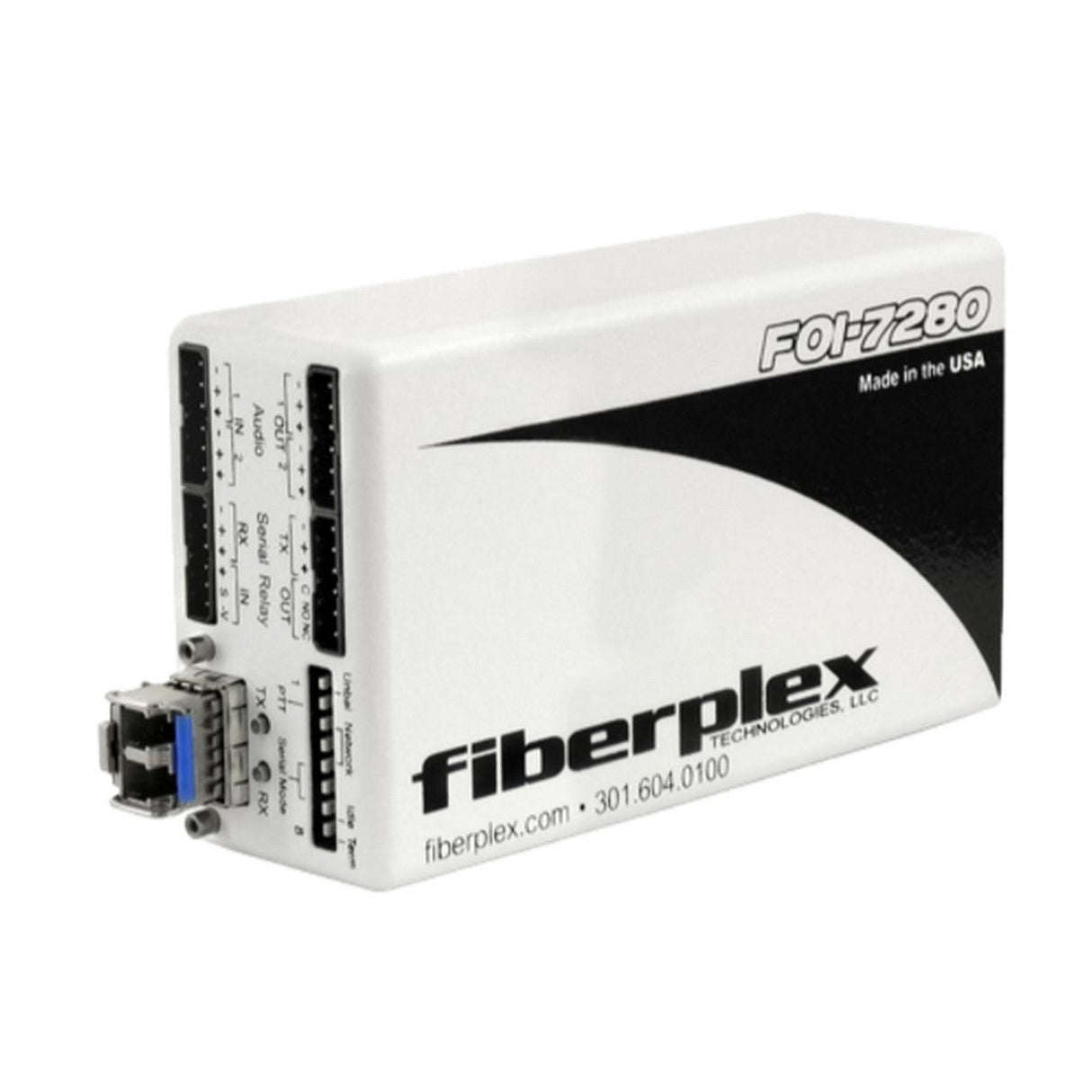

Fiberplex FOI-7280-L22 Line Level Stereo Audio Transceiver
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
fiberplex FOI-7280-L22 Line Level Stereo Audio Transceiver
Elegantly simple yet packed with an advanced feature set, the FiberPlex Technologies, FOI(TD)-7280 is a powerful problem solver when it comes to routing audio. The unit converts line level, stereo analog audio to fiber for long or short haul transport. In addition to the audio, a multi-format serial data connection and a bidirectional pair of contact closures are included.
Key Features
- Supports Balanced and Unbalanced Audio I/O
- High Quality 24-bit audio
- Ultra Wide 20 Hz to 45 kHz Frequency Response
- Supports Ultrasonic Signaling
- RS-232, RS-422, RS-485 (2/4 wire)
- Data Rates from 0 to 1 Mbps
- ‘Form C’ Contacts
- Supports Push to Talk
- Point to Point
- Broadcast Mode
- Intercom/Loop
- Multichannel Add/Drop
- TD includes power adapter as well as a 3-position Phoenix
- 1310nm Multimode
- LC optics
Technical Specifications
OPTICAL SPECIFICATIONS
Data Rate: Typical 346 Mbps
Recommended Jitter: Typical 40 Psec
Operating Voltage: Typical 3.3VDC
Maximum Current: Max 500 mA
Optical Modules: SFP MSA (SFF?8431, SFF?8432, SFF?8433) compliant slot, data rate 266 - 1.25 Gbps
Environmental
Storage Temperature (°C): -40 - 85 °C
Operating Temperature (°C): 0 - 50 °C
Power Requirement
Voltage Range: Min 7VDC, Typical 9VDC, Typical 24 VDC
Supply Current, no SFPs: 600mA
Phoenix Mating Plug 6 pos Audio/Serial/Control (PN 1778874)
Wire Accepted: 20 - 26 AWG
Nominal Voltage: Max 160 V
Nominal Current: Max 6 A
Power Adapter Connection
FOI?7280: LEMO
