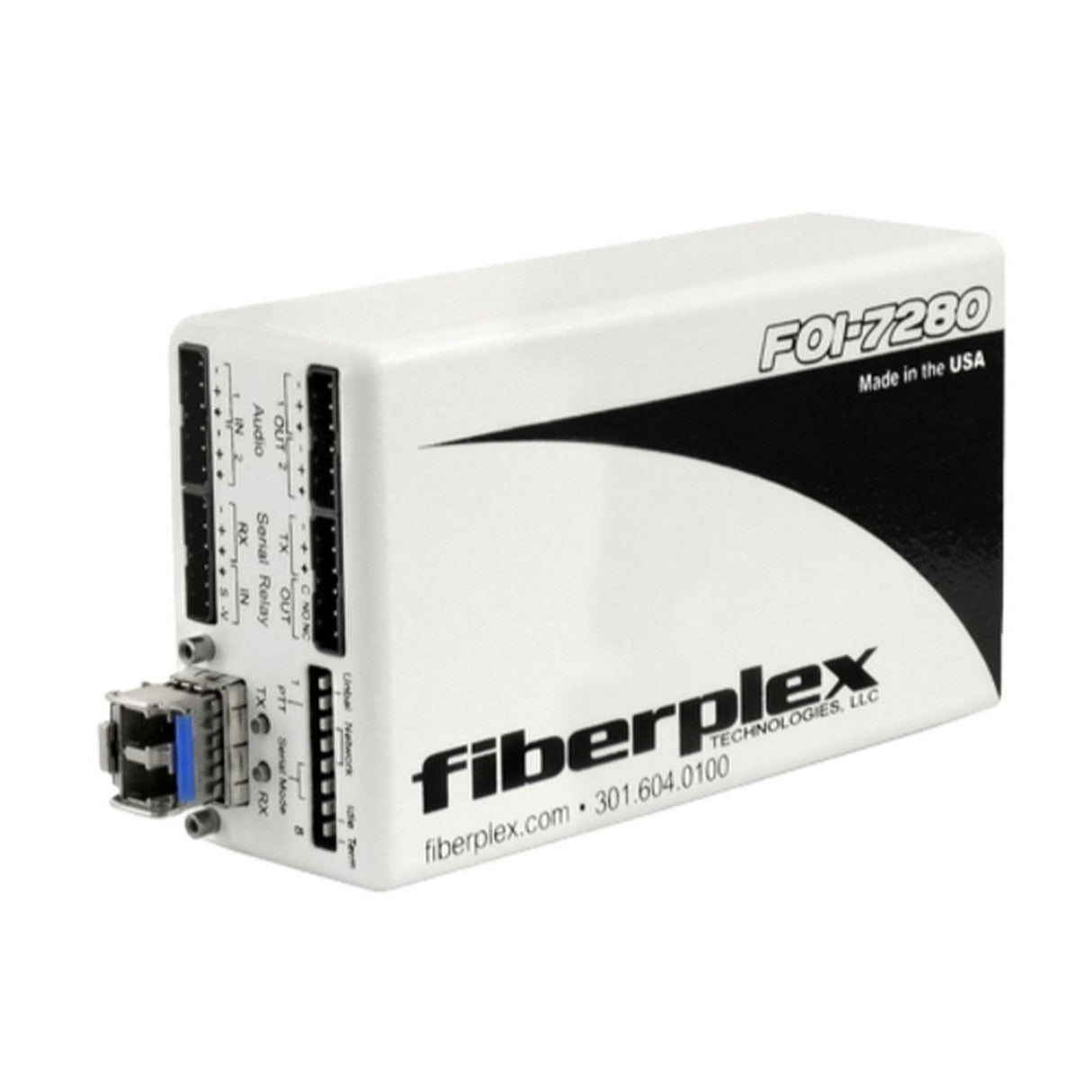

fiberplex FOI-7280-L5B Line Level Stereo Audio Transceiver
Elegantly simple yet packed with an advanced feature set, the FiberPlex Technologies, FOI(TD)-7280 is a powerful problem solver when it comes to routing audio. The unit converts line level, stereo analog audio to fiber for long or short haul transport. In addition to the audio, a multi-format serial data connection and a bidirectional pair of contact closures are included.
Key Features
- Supports Balanced and Unbalanced Audio I/O
- High Quality 24-bit audio
- Ultra Wide 20 Hz to 45 kHz Frequency Response
- Supports Ultrasonic Signaling
- RS-232, RS-422, RS-485 (2/4 wire)
- Data Rates from 0 to 1 Mbps
- āForm Cā Contacts
- Supports Push to Talk
- Point to Point
- Broadcast Mode
- Intercom/Loop
- Multichannel Add/Drop
- TD includes power adapter as well as a 3-position Phoenix
- 1300nm Multimode
- LC optics
Technical Specifications
OPTICAL SPECIFICATIONS
Data Rate: Typical 346 Mbps
Recommended Jitter: Typical 40 Psec
Operating Voltage: Typical 3.3VDC
Maximum Current: Max 500 mA
Optical Modules: SFP MSA (SFF?Ā?8431, SFF?Ā?8432, SFF?Ā?8433) compliant slot, data rate 266 ā 1.25 Gbps
Environmental
Storage Temperature (Ā°C): -40 Ā? 85 Ā°C
Operating Temperature (Ā°C): 0 Ā? 50 Ā°C
Power Requirement
Voltage Range: Min 7VDC, Typical 9VDC, Typical 24 VDC
Supply Current, no SFPs: 600mA
Phoenix Mating Plug 6 pos Audio/Serial/Control (PN 1778874)
Wire Accepted: 20 Ā? 26 AWG
Nominal Voltage: Max 160 V
Nominal Current: Max 6 A
Power Adapter Connection
FOI?Ā?7280: LEMO
