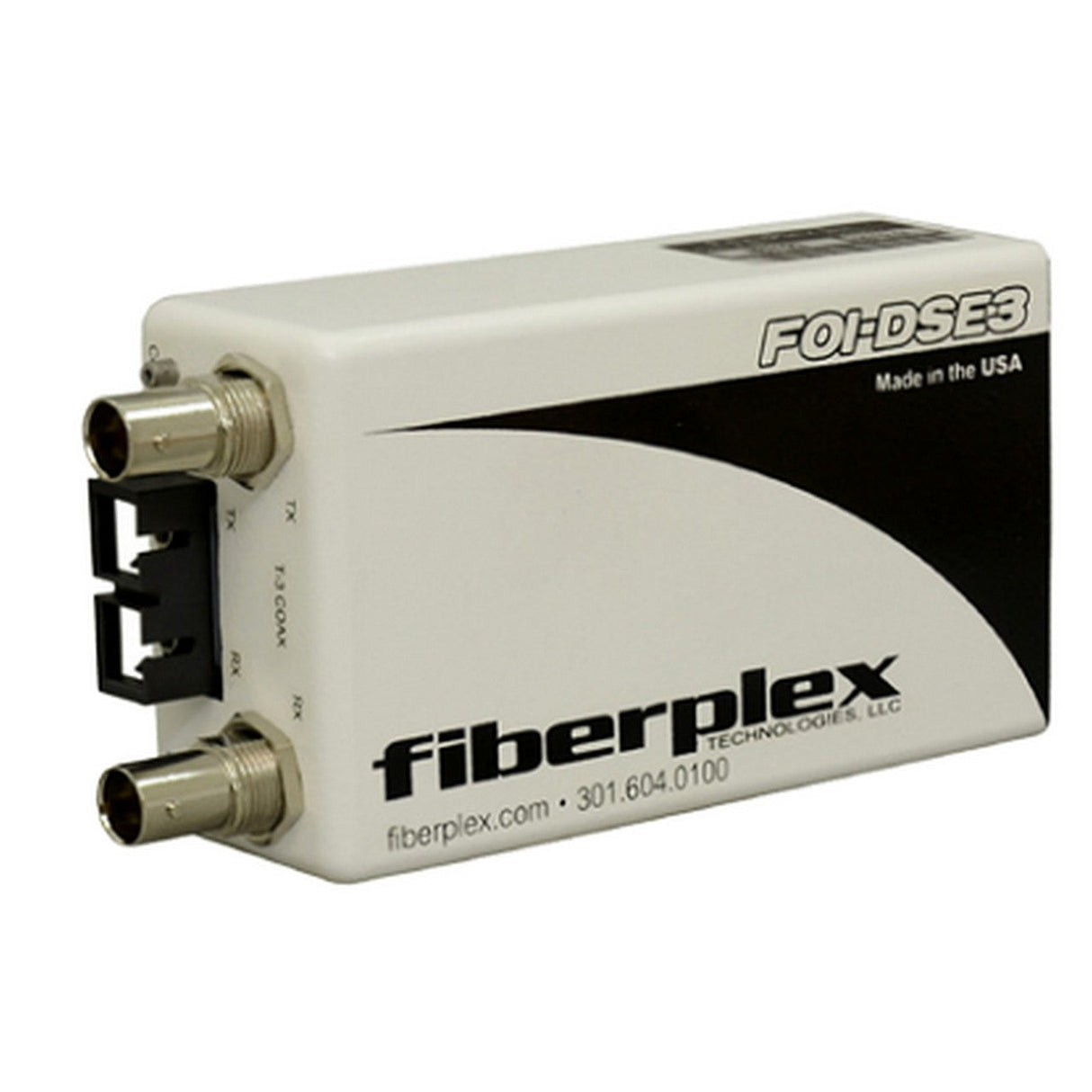

fiberplex FOI-DSE3-RS-ST Isolator for T3 or DS3
The FOI-DSE3 provides complete electrical isolation for E3 communications. The unit can be used in areas of high electrical noise or in and out of RF shielded enclosures. The fiber optic cable is not susceptible to interference caused by impulse noise, crosstalk, or EMI. Privacy of communications is also enhanced because the fiber optic cable does not radiate any emissions. In addition, fiber optic cable offers much longer transmission distances than copper wiring. Traditional E3 coax cabling is limited to a maximum distance of 1100ft (335m), but multimode optics on the unit can extend the distance to 2km, while singlemode optics can further extend the distance to 20km.
Key Features
- Data Rate: 34.368 Mbps
- Compliant with: ITU-T G.703, ITU-T G.823, ITU-T G.775 for loss of signal
- Applications include: SONET Add/Drop Multiplexers (ADMs), PDH Equipment, ATM WAN access routers and switches
- Satisfies K41 protection specifications for E3 systems
- RFI suppressed
- Singlemode ST optics
Technical Specifications
Power Requirement
Voltage Range: Min 7V, Typical 9V, Max 12V
Supply Current: 300mA
Environmental
Storage Temperature: -40 - 85 Ā°C
Operating Temperature: 0 - 50 Ā°C
Data Rate: 34.368 Mbps
Line Encoding: AMI (Alternate Mark Inversion) / HDB3 (High Density Bipolar 3)
Interface Connector: BNC
Singlemode
Size: 9 / 125 Ī¼m
Max Distance: 20 km
Wavelength: 1300 nm
Output Power: -17 dBm
Receiver Sensitivity: -35 dBm
Loss Budget: 18 dB
