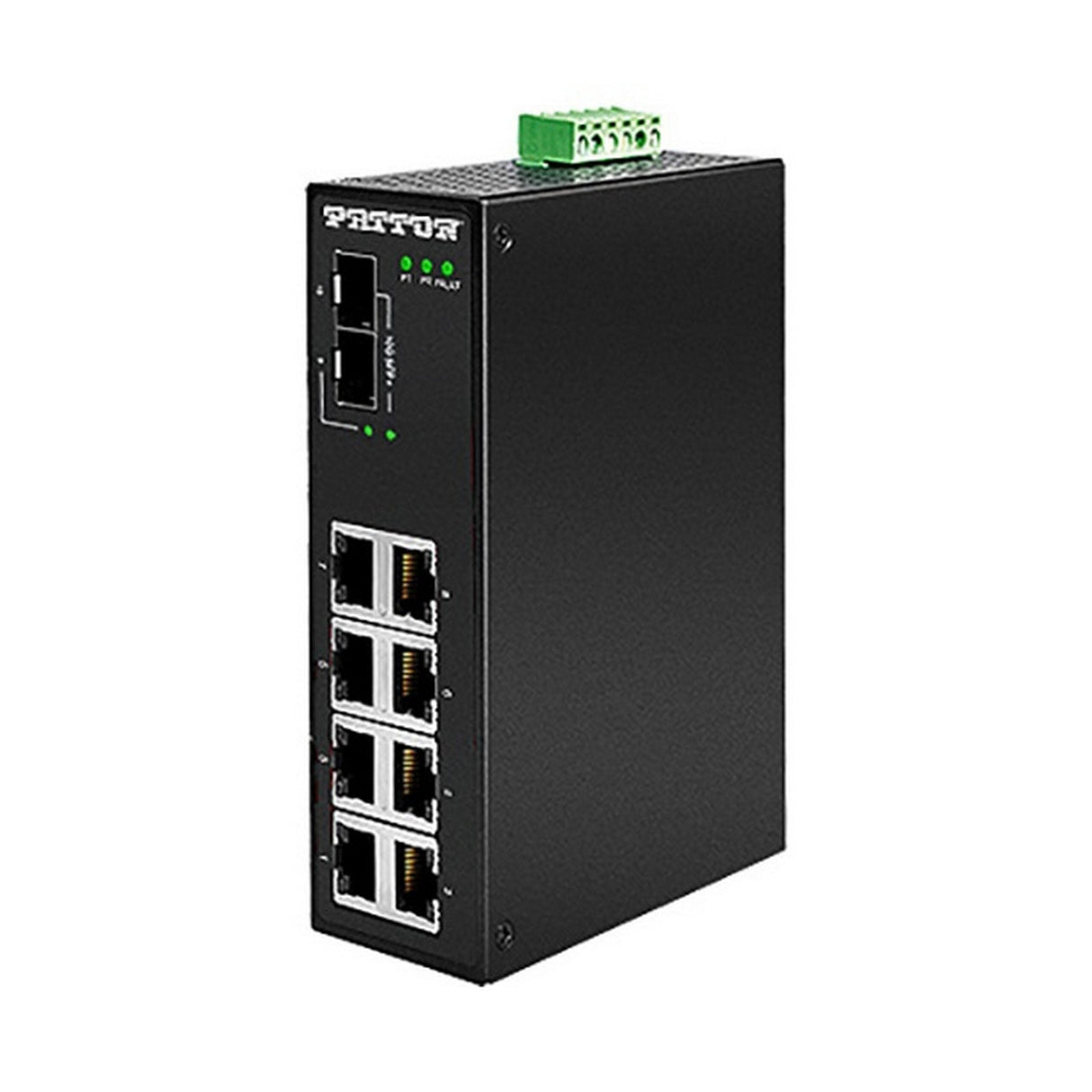

Fiberplex FP1108E/2SFP/DC Un-Managed Industrial PoEplus 10 Gig Ethernet Switch
Patton's FP1108E Un-Managed Industrial 10 Gig Ethernet Switch supports industrial applications requiring high bandwidth or high density connections, such as power/utilities, water/wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems. The FP1108E is housed in a sturdy IP30 rated DIN-rail enclosure with wall mount options. The physical layer interfaces include eight port 10/100/1000 Ethernet ports on RJ45 connectors and two 10G SFP+ cages that can be utilized for fiber trunk connections. To ensure operation in harsh environments the FP1108E provides additional EFT and ESD protection to prevent any unregulated voltage or harmful transients and has an operating temperature rating of -40 to 75C (-40 to 167F).
Key Features
Supports auto MDI/MDI-X function
10 ports include 8 10/100/1000TX RJ45 ports and 2 10-Gig SFP+ cages
Store-and-forward switching architecture
20-Gbps backplane (switching fabric)
16K MAC address table
9,216 bytes Jumbo frame supports
ESD protection: 6,000 VDC support
Redundant power input design: 12-48 VDC
Built-in relay output for power failure detection
Surge protection: 2,000 VDC support
Operating temperature range--EOT: -40 to 75C
IP30 rugged metal case design
DIN-rail and wall mount support
Technical Specifications
Ethernet Port
8 RJ45 Ports with 10/100/1000TX auto MDI/MDI-X connection & 2 100/1000 SFP cages
Fiber Port
Wavelength:?Refer to SFP+ modules/SFP-OC 2 1-Gig SFP cages
Standards
IEEE 802.3, 3u, 3ab, 3az
Switching Architecture
Backplane (Switching Fabric): 20 Gbps
Transfer Rate
up to 1.0Gbps for Gigabit Ethernet port
Jumbo Frame
9.6 Kbytes
MAC Table Size
8K
Free fall / Shock / Vibration
IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
Overload Current Protection
Present
Operating Temperature
-40 to 75C (-40 to 167F)
Storage Temperature
-40 to 85C (-40 to 185F)
Ambient Relative Humidity
5 to 95%, (non-condensing)
Input Voltage
12-48 VDC, Redundant Input (with 1 removable 6-contact terminal block) 100-240 VAC adapter (optional)
Power Consumption
10 Watts
Reverse Polarity Protection
Yes
Housing
Metal, IP30 protection, DIN-Rail Mounting (wall mounting bracket is also included)
Dimensions
2.12W x 3.89D x 5.59H in. (54W x 99D x 142H mm)
Weight
Unit Weight
2.5 lbs. Shipping Weight: 3.0 lbs
Certifications
FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
EMI
FCC Class A
EMS
EN6100-4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11, 4-12, 6-2, 6-4
