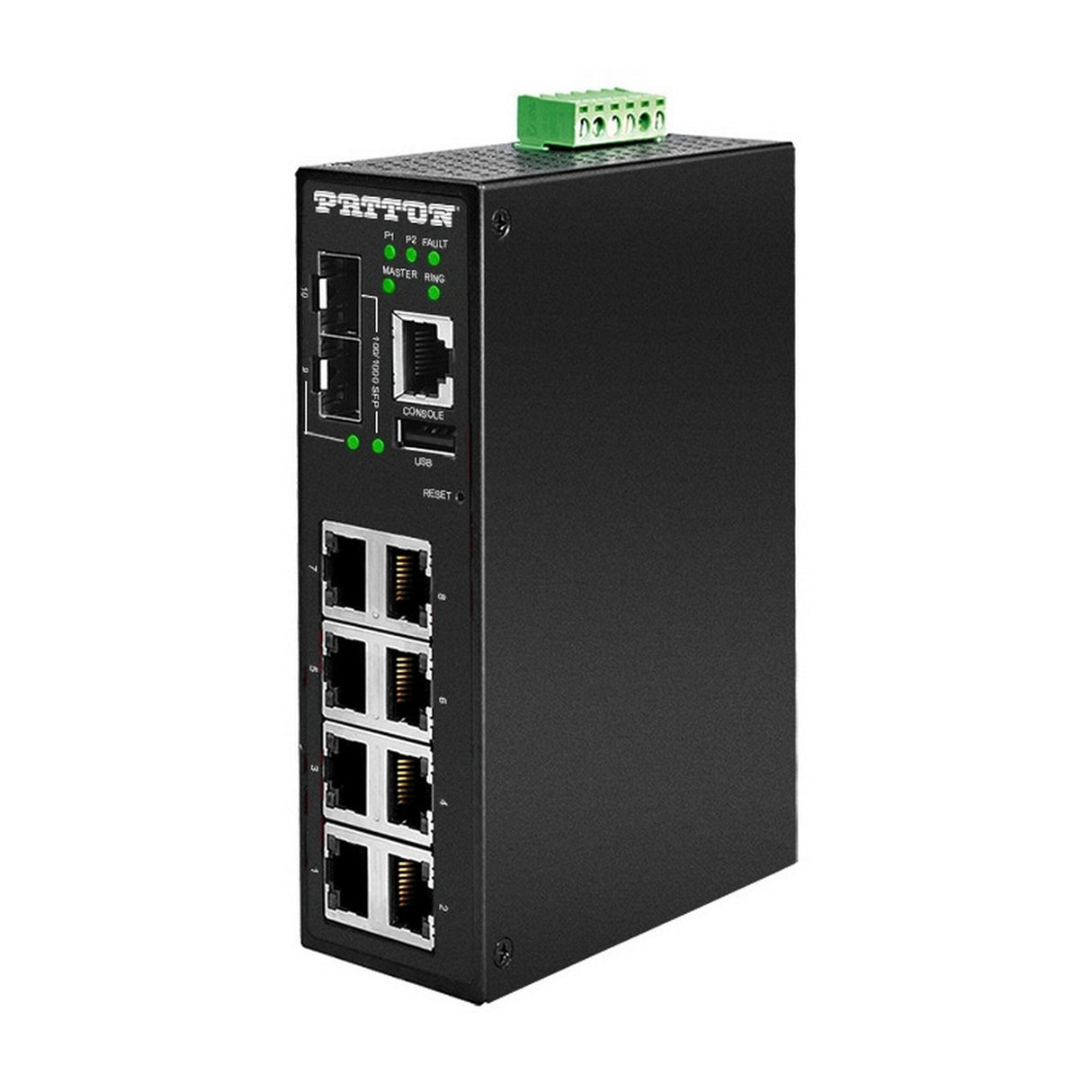

Fiberplex FP2008E/2SFP/DC Managed Industrial Gigabit Ethernet Switch, 10 Port
The Patton FP2008E is an industrial-grade, 10-port 10/100/1000 Ethernet switch ideally suited for Industrial Ethernet communications over a moderate bandwidth Gigabit fiber trunk. Layer 2 management enables this switch to provide reliable redundant connectivity throughout your network. Patton's FP2008E Managed Industrial Gigabit Ethernet Switch supports industrial applications requiring high bandwidth or high density connections. The FP2008E is a fully manageable Layer 2 Ethernet switch, pre-loaded with a user-friendly web management console design. Ring network redundancy is provided by MSTP/RSTP and open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol which has a < 50ms network recovery time. Advanced L2 network filtering and prioritization include IGMP, VLAN, QoS/CoS/ToS. Efficient monitoring and security can be achieved through SNMPv1/v2/v3, RMON, port mirroring, 802.1x, HTTPS, SSH/SSL.
Key Features
- System Interface/Performance
- Supports auto MDI/MDI-X function
- 10 ports include 8 10/100/1000TX RJ45 ports and 2 100/1000 SFP cages
- Redundant power input design: 12-48 VDC
- Built-in relay output for power failure detection
- Surge protection: 2,000 VDC support
Technical Specifications
Copper Ethernet Port
8 x RJ45 10/100/1000TX auto MDI/MDI-X
Fiber Ethernet Port
2 x GigE SFP cages
RS232 Console Port
1 x RJ45, 115.2kbps, 8, N, 1
USB2.0 Port
Configuration Backup
Networking Standards
IEEE 802.3 10Tx
Ethernet IEEE 802.3u 100Tx Fast Ethernet
IEEE 802.3ab 1000Tx Gigabit Ethernet
IEEE 802.3z Gigabit Fiber
IEEE 802.3x Flow Control for Full Duplex
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.1d STP (Spanning Tree Protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
ITU-T G.8032/Y.1344 ERPS (Ethernet Ring Protection Switch) Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1x for Network Authentication
IEEE 802.1p QoS/CoS Protocol for Traffic Prioritization
Additional Standards
IGMPv1/v2, SNMPv1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option
66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6
Power
Power Consumption
15 Watts
Input Voltage
12-48 VDC
Redundant Input (with 1 removable 6-contact terminal block) 100-240 VAC adapter (optional)
Protection
Reverse Polarity
Overload Current
CPU Watchdog
Temperature Operating
-40 to 167F (-40 to 75C), Storage: -40 to 185F (-40 to 85C)
Ambient Relative Humidity
5 to 95%, (non-condensing
Housing
Metal, IP30 protection, DIN-Rail Mounting (wall mounting bracket is also included)
Dimensions
2.12W x 3.89D x 5.59H in. (54W x 99D x 142H mm)
Weight
Unit Weight
2.5 lbs (1.1 kg), Shipping Weight: 3.0 lbs (1.4 kg)
Certifications
FCC, CE, UL 61010-1, UL 61010-2-201 Class 1 Div 2
EMI
FCC Class A
EMS
IEC61000-4-2, 4-3, 4-4, 4-5, 4-6, 4-8, IEC61000-6-2, 6-4
Free fall / Shock / Vibration: IEC60068-2-32 / IEC60068-2-27 / IEC60068- 2-6
