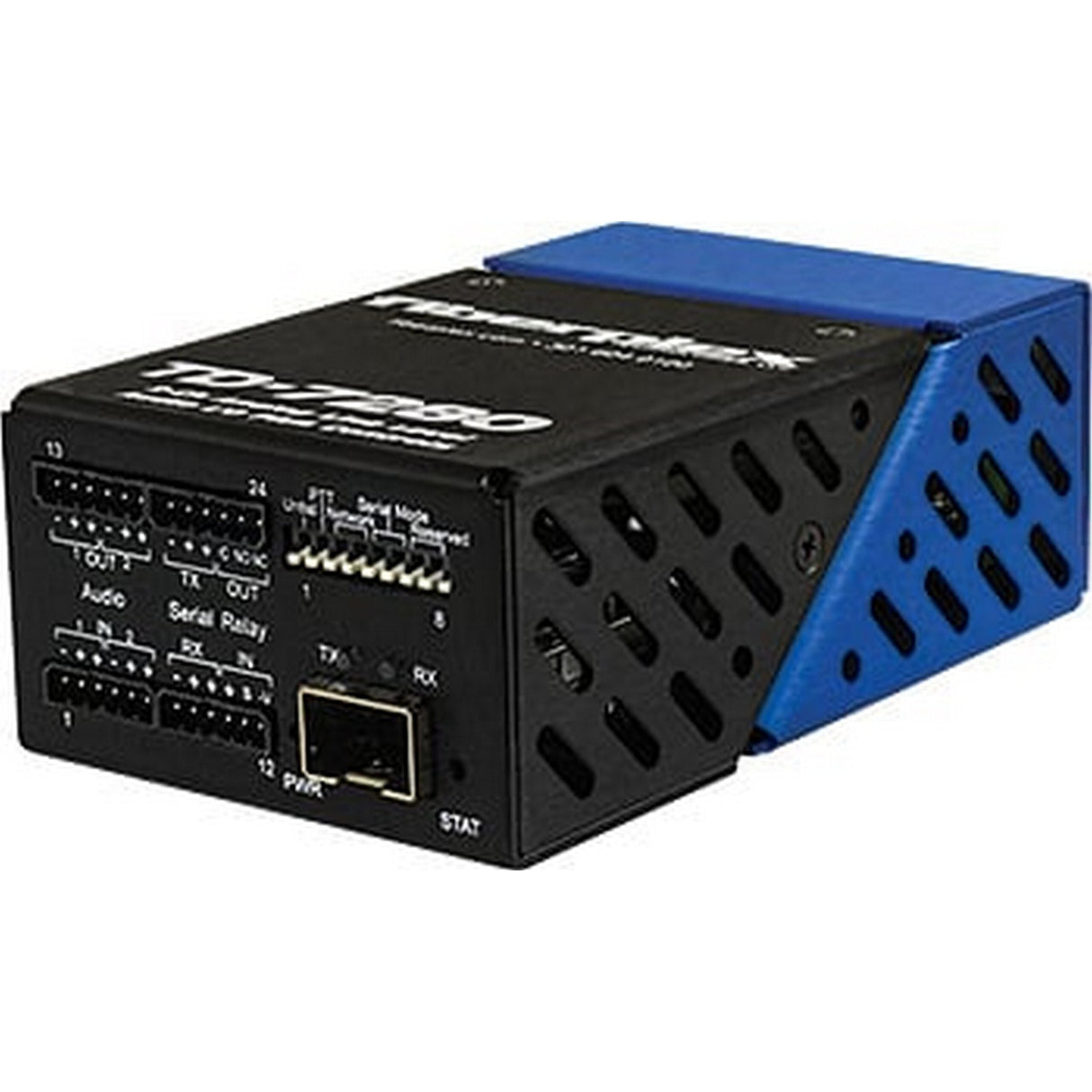

Fiberplex TD-7280-C Line Level Stereo Audio Transceiver with PTT Serial Data

Elegantly simple yet packed with an advanced feature set, the TD-7280 is a powerful problem solver when it comes to routing audio or transporting E&M signals. The unit converts line level, stereo analog audio to fiber for long or short haul transport. In addition to the audio, a multi-format serial data connection (RS-232/422/485) and a bidirectional pair of `form C' contact closures are included.

The combination of audio and signaling provides a seamless solution for 4-wire E&M applications, push-to-talk, intercom, audio distribution, railway signaling, and more

Various advanced routing and networking options are available via DIP switch setting.

In point-to-point mode basic audio inputs one unit map directly to audio outputs on the other unit and serial data and contact closures are a direct connection.

In Broadcast Mode one unit is configured as the master, which sets the clock and sampling rate. Analog and serial inputs to the master are sent to all the slaves, which output the data on their respective ports. No communication is sent from the slaves to any other units.

In Intercom or “Loop mode” one unit is configured as the master, which sets the clock and sampling rate. It polls the loop, with each unit in the loop adding its own input to the aggregated sample, gated by its push to talk, if enabled. When the sample returns back to the master, it then sends out that aggregated sample as the output for all units in the loop. All units forward the aggregated output around the loop until it returns to the master, which discards it. Serial data from the master is replicated on all slaves, and serial data from the slaves is aggregated to output on the master.

Key Features

• Supports Balanced and Unbalanced Audio I/O
• Supports E&M (Ear and Mouth) Types II-V
• High Quality 24-bit audio
• Ultra-wide DC to 45 kHz Frequency Response
• Serial Data Rates from 0 to 1 Mbps
• Available with a variety of mounting options including DIN rail, NEMA enclosures and 1U rack tray mounting.
• Power Adapter Included

Technical Specifications

Audio Interface
Supports Balanced and Unbalanced Audio I/O
High Quality 24-bit audio
Ultra-Wide 20 Hz to 45 kHz Frequency Response
Supports Ultrasonic Signaling
Serial Interface
RS-232, RS-422, RS-485 (2/4 wire)
Data Rates from 0 to 1 Mbps
Contact Closures
`Form C' Contacts
Supports Push to Talk
Advanced Routing
Point to Point
Broadcast Mode
Intercom/Loop
Multichannel Add/Drop
Item Includes
1x TD-7280-C Cage Only
1x AC Power Adapter
