Fiberplex TKIT-MADI-M MADI AES10 to Multimode Optical Conversion Pair
Fiberplex TKIT-MADI-M MADI AES10 to Multimode Optical Conversion Pair
Free Shipping
Fiberplex TKIT-MADI-M MADI AES10 to Multimode Optical Conversion Pair

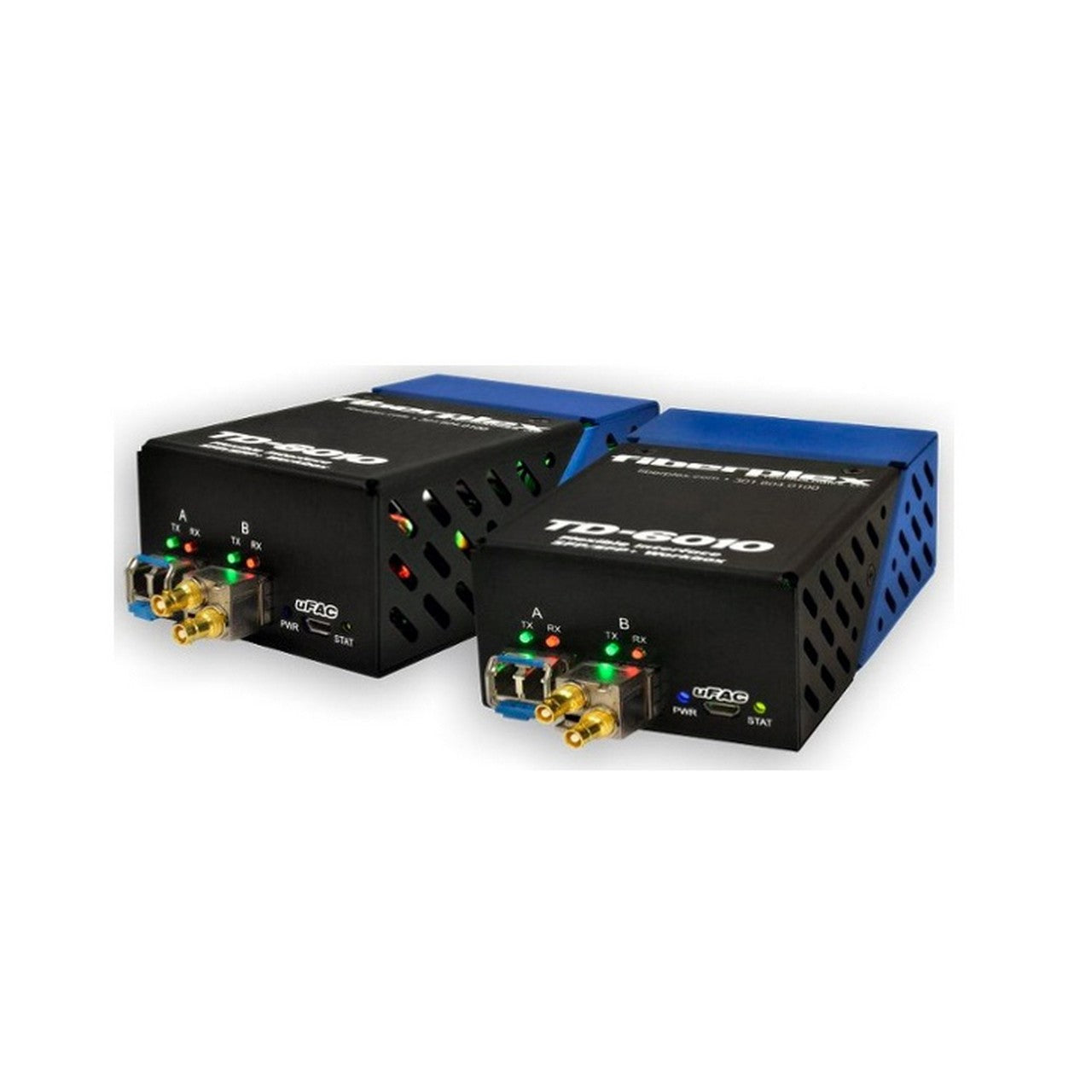

The FiberPlex Technologies `TKIT' bundles takes the incredible flexibility of the TD-6010 12.5 Gbps workbox and bundles it with a set of application specific SFP modules to create a simple, easy to order solution for your specific application. Includes AC Power Adapters.
Key Features
- Meet Electrical Specifications of AES10-2003
- Available as Tranciever, Dual RX or Dual TX
- HD-BNC connectors (75&Omega)
- Integrated Equalizer: Typical length of Belden 1694A cable: 100m at 125Mb/s
- Integrated Cable Driver: Control via serial interface
- Input signal detection, Voltage & Temperature Monitoring, Module Information
Technical Specifications
Storage Temperature (C)
-40 - 85C
OperatingTemperature (C)
0 - 50C
Interface
Full speed USB 2.0 compliant MicroB Device
Optical Modules
2 SFP+ MSA (SFF-8431, SFF-8432, SFF-8433) compliant slots, data rate 0 - 12.5 gigabits
