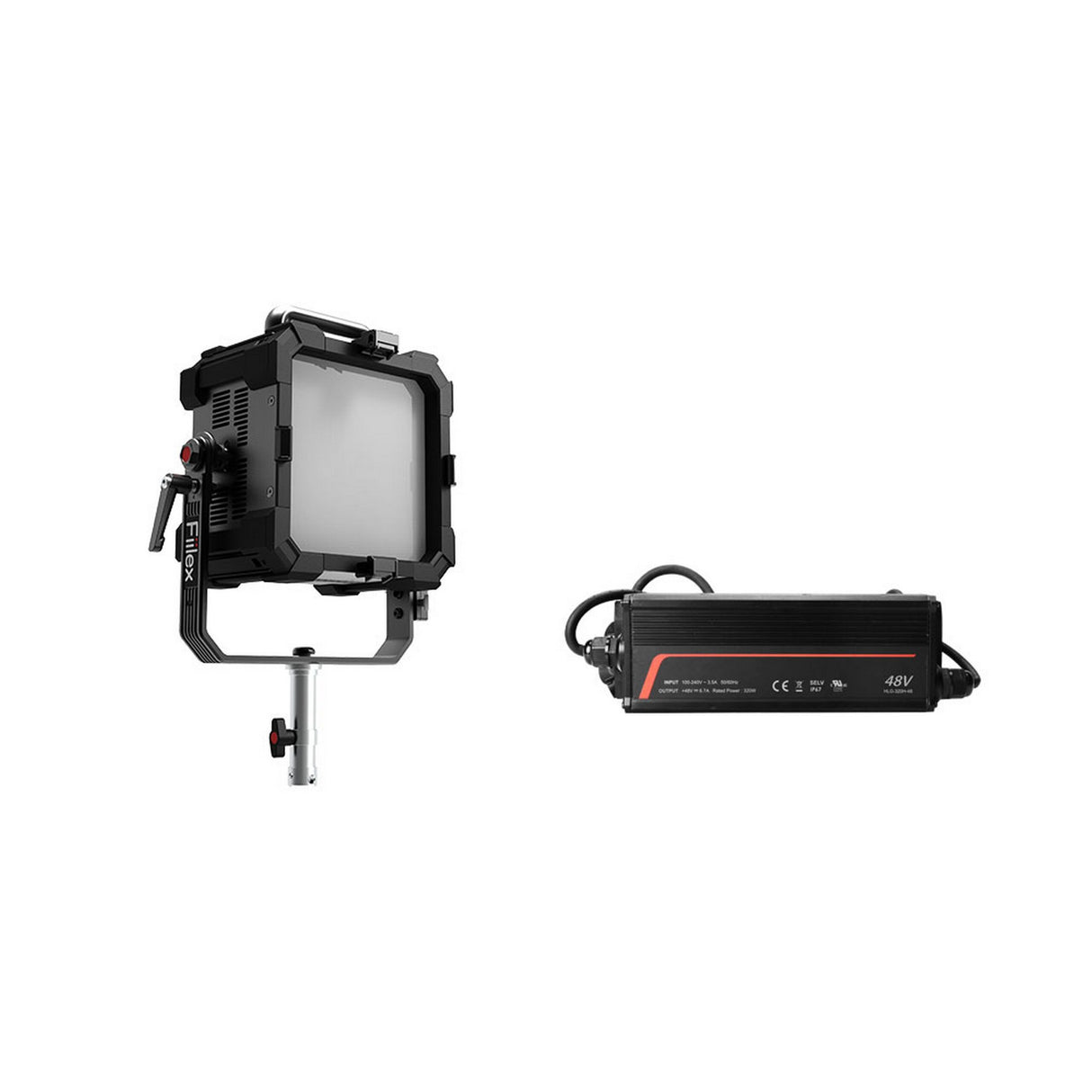

Fiilex Matrix Color 320W 8-Inch LED Fresnel
Fiilex Matrix Color 320W 8-Inch LED Fresnel
Free Shipping
Fiilex Matrix Color 320W 8-Inch LED Fresnel
The Matrix Color is a 320W LED fixture that combines high-fidelity soft-source illumination with a focusable, fresnel-like forward punch. This optical versatility is made possible by Fiilex’s custom Dense Matrix LED technology, which also features smooth dimming to 0%, no flicker, and very high CRI. Two snap-on fresnel accessories are available to narrow the Matrix Color’s standard 100° spread down to 30° or 18°.
Key Features
- High-CRI white light output (2000-10000K)
- 8 and 16-bit color modes: CCTRGBW, CCTHSI, CIExy, etc.
- IP-X5 Rating (water resistant)
- Lightweight (only 9.9lbs)
- Accessories available for multiple lighting styles
- Smooth and Sharp dimming modes
- DMX-controllable fan modes: Full, Variable, Silent, Off
Technical Specifications
Beam Angle
100° (30° or 18° with fresnel accessories)
CCT Range
2000-10000K continuous tuning + magenta/green shift
CRI / TLCI
95 / 90 typical
Control Modes
CCT, HSI, RGBW, Gels, Effects, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming
100% - 0% flicker free
Dimming Modes
Smooth, Sharp
Light Engine
4x 75W DiCon Dense Matrix LED
Power Consumption
320W max AC | 300W max DC
BTUs/hour
1091 (BTUs/hour) max
DC Input
48V DC (via XLR-3)
AC Input
100 - 240V AC, 50 ~ 60Hz (via powerCON TRUE1)
DMX/RDM Port
XLR-5
Ethernet
sACN, ArtNet (via RJ45)
USB Power Output
5V/1A (via USB-A)
Weight Fixture
9.9 lbs / 4.5kg (includes yoke) | Power adapter: 6.4lbs / 2.9kg
Size (L x W x H)
6.7” x 12.6” x 17.7” / 17.1cm x 32.1cm x 45.0cm
Mount Type
Baby stud 5/8” female (16mm) & junior stud 1-1/8” male (28mm)
IP Rating
IP-X5 (water-resistant)
Thermal Design
Advanced vapor cooling system (fan cooled)
Operating Temperature
0-40ºC / 32-104ºF
