Condition: New
AMS-ISA428MK2
Focusrite ISA 428 MkII 4-Channel Rack-Mount Transformer-Based Microphone Preamplifier

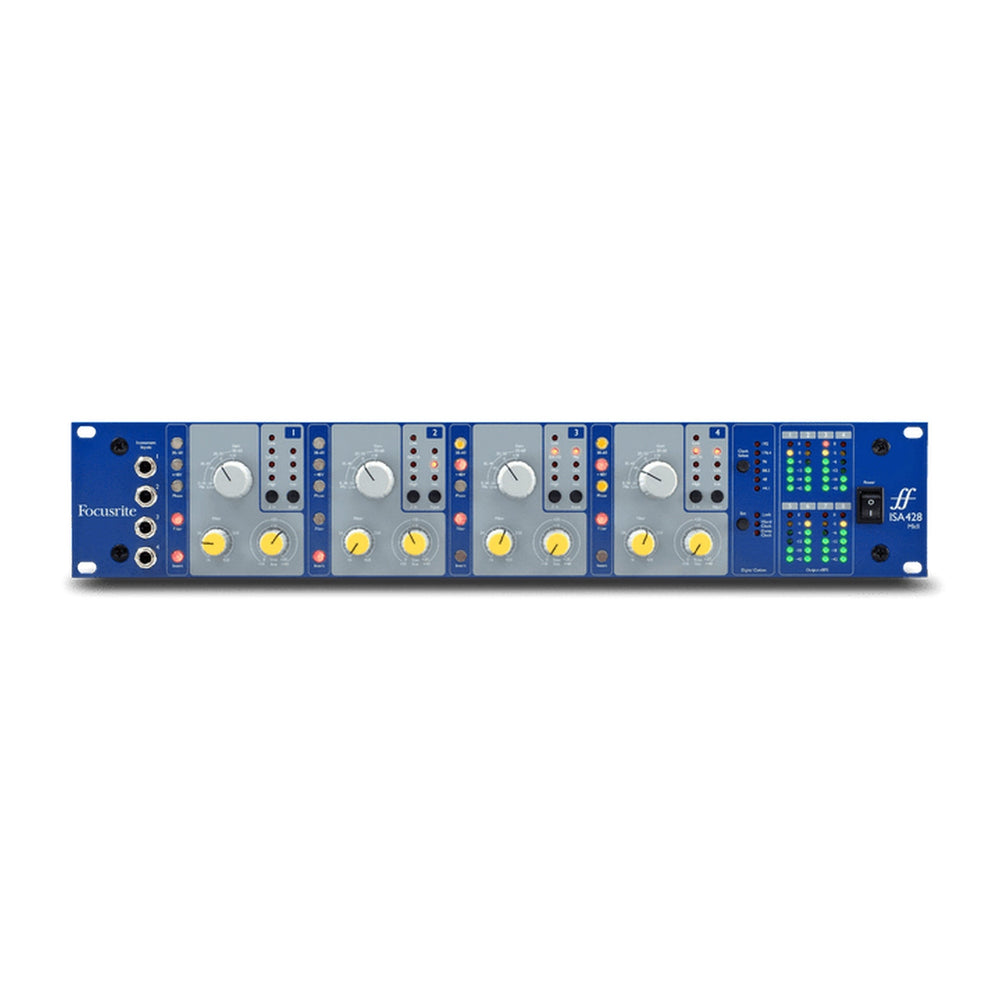

The Focusrite ISA 428 MkII houses four acclaimed transformer-based ISA mic preamps in a compact 2U rack enclosure. With selectable input impedance, front-panel instrument inputs, insert points, LED metering, and optional onboard A-D conversion, it offers both classic sonic character and modern flexibility.
Each channel delivers up to 60 dB of stepped gain plus an additional 20 dB trim (80 dB total), a variable high-pass filter (16ā420 Hz), and transformer-driven warmth. Add the optional A-D conversion card to integrate eight analog inputs with high-quality digital output.
Key Features
- Mic Preamps: 4 transformer-based ISA series mic pres with Lundahl LL1538 transformers
- Gain Range: 0ā60 dB stepped, plus 0ā20 dB continuous trim (80 dB max)
- Input Types: Mic (XLR), Line (TRS), front-panel Instrument (Ā¼ā³ TS)
- Input Impedance: Selectable: Low (600 Ī©), ISA 110 (ā¼400 Ī©), Medium (2.4 kĪ©), High (6.8 kĪ©)
- High-Pass Filter: 18 dB/octave, 16ā420 Hz (continuously variable)
- Inserts: Switchable per channel for outboard processing
- Metering: 6-segment LED peak meters per channel
- Optional A-D Conversion: Internal 8-channel AD card (ADAT/AES3, up to 192 kHz, 122 dB dynamic range)

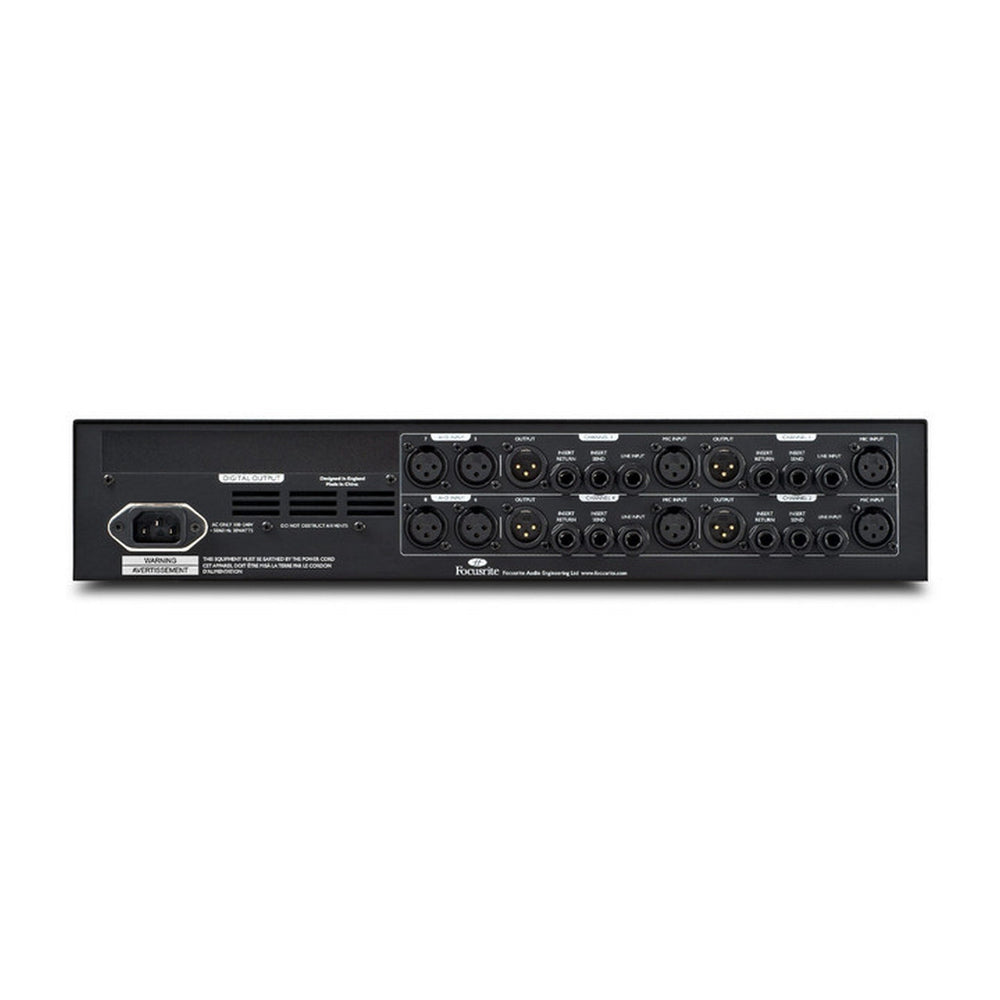

- Connectivity & Power: IEC mains (100ā240 V), rear-panel I/O including mic/line inputs, inserts, outputs; sealed 2U rack unit requiring 75 mm rear clearance
- Warranty: 3-year manufacturer warranty (as with other ISA products)
Technical Specifications
- Dimensions: 19" W Ć 3.5" H Ć 11" D (480 Ć 88 Ć 280 mm)
- Weight: 12.2 lb (5.5 kg)
- Package Weight: 15.5 lb (7.03 kg)
- Box Dimensions: 25" Ć 18" Ć 9"
- Gain (Mic): Up to 80 dB total
- HP Filter: 16ā420 Hz, 18 dB/octave
- Impedance Settings: 600 Ī©, 400 Ī©, 2.4 kĪ©, 6.8 kĪ©
- Metering: 6-segment LED
What's Included
- 1x ISA 428 MkII unit
- 1x IEC power cable
- 1x User manual
- 3-year warranty
- Optional: A-D conversion card (sold separately)
