Focusrite RedNet A16R MkII 16-Channel Analog I/O Dante Audio Interface

Focusrite | SKU: FOCUSRT-REDNETA16RMKII-AMSREDNETA16RMKII
1 3
$4,39999

Free Shipping

Estimated Shipping Widget will be displayed here!

Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability. Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible. Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand. No restocking fee will be charged when you opt for store credit. Exclusions apply.

Condition: New

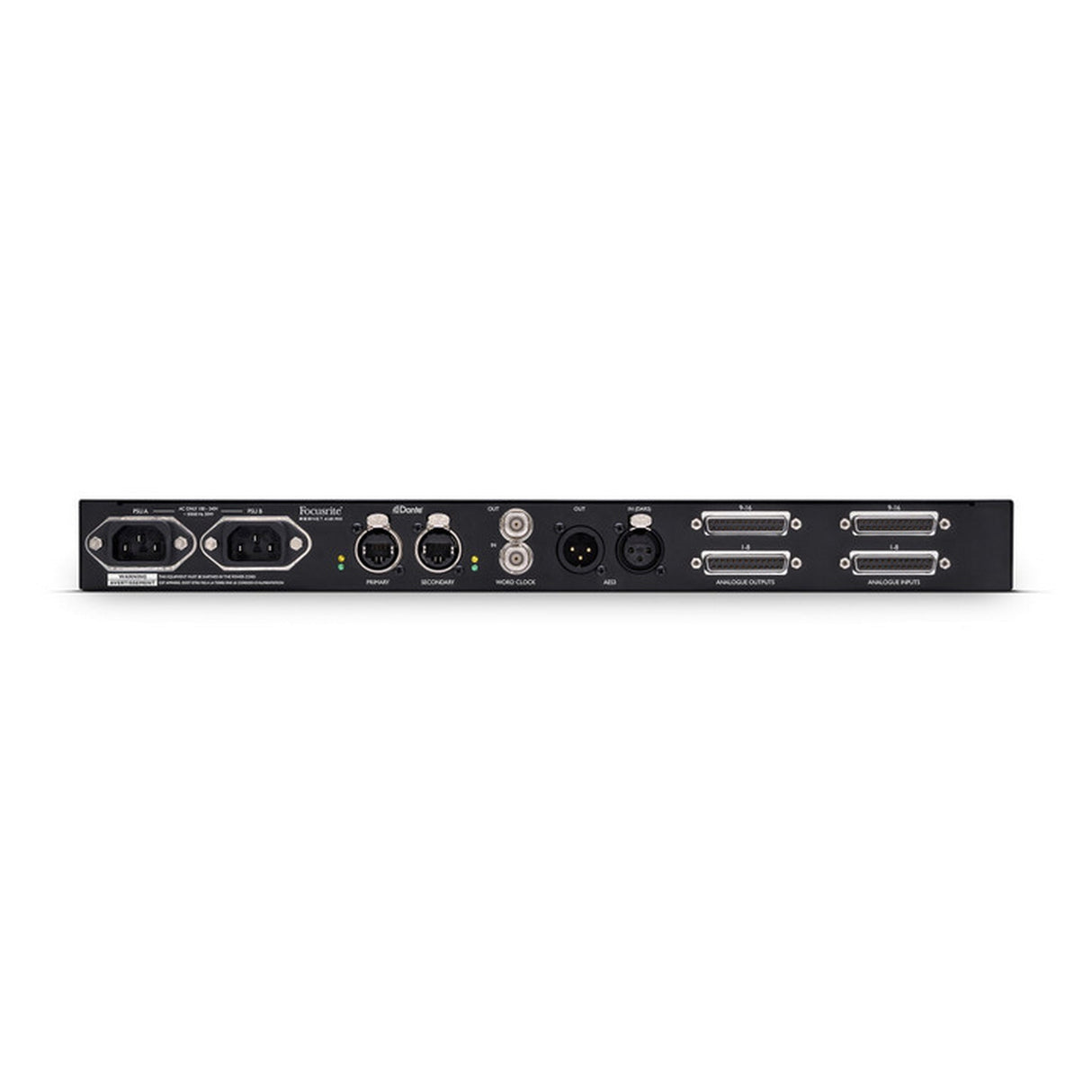

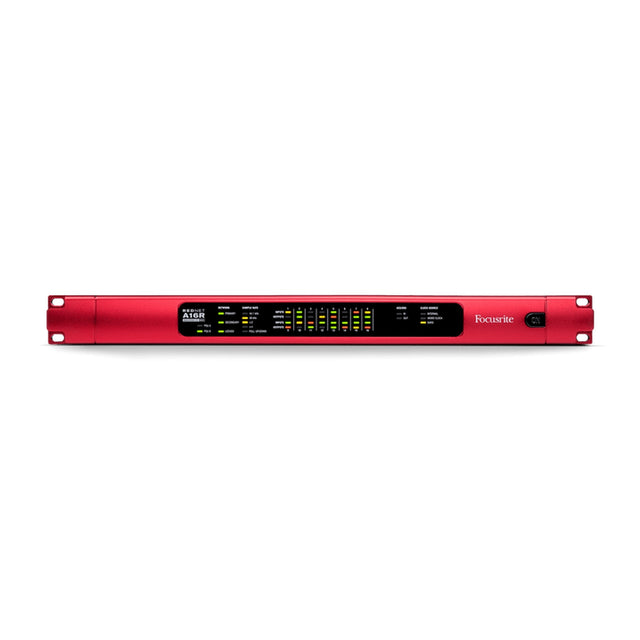

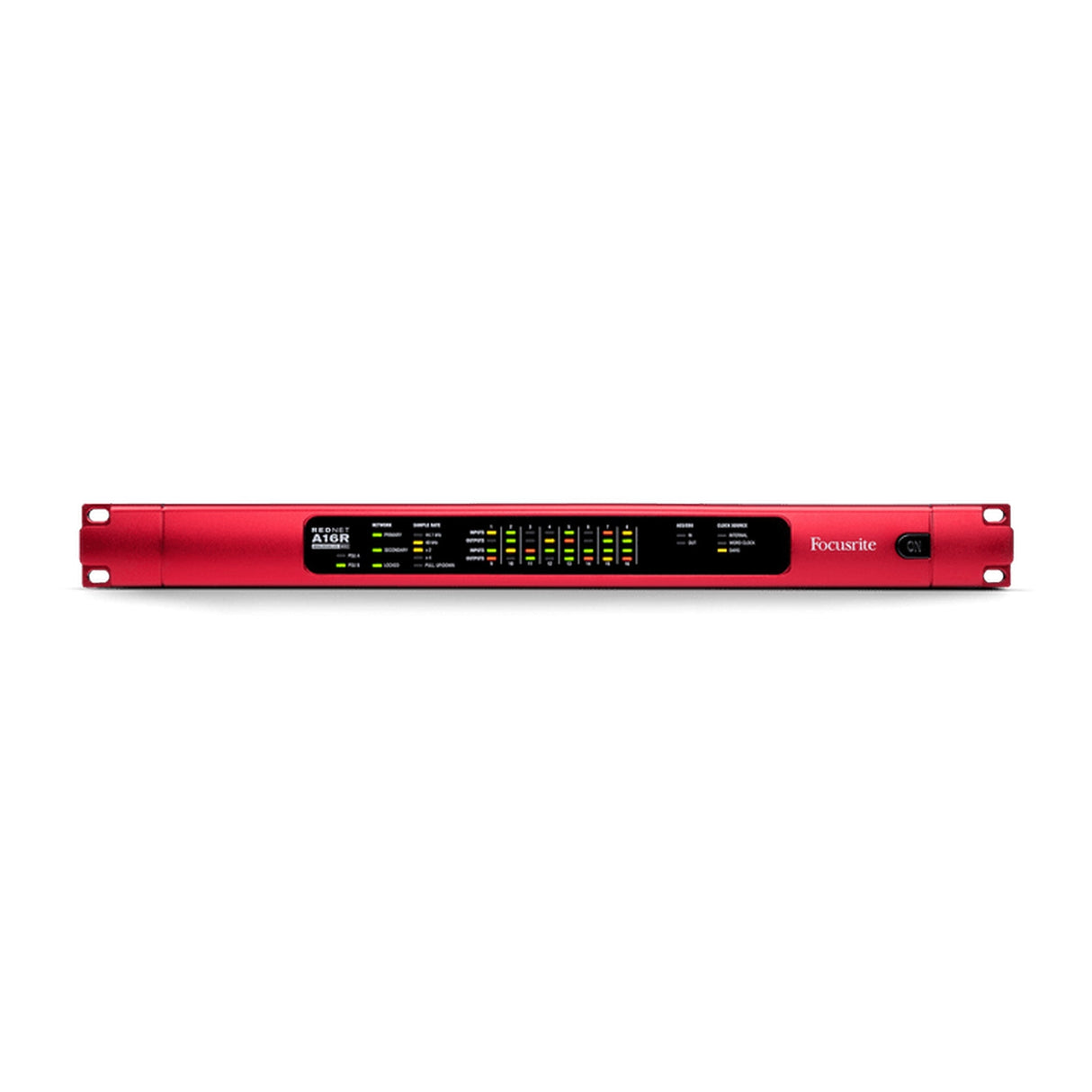

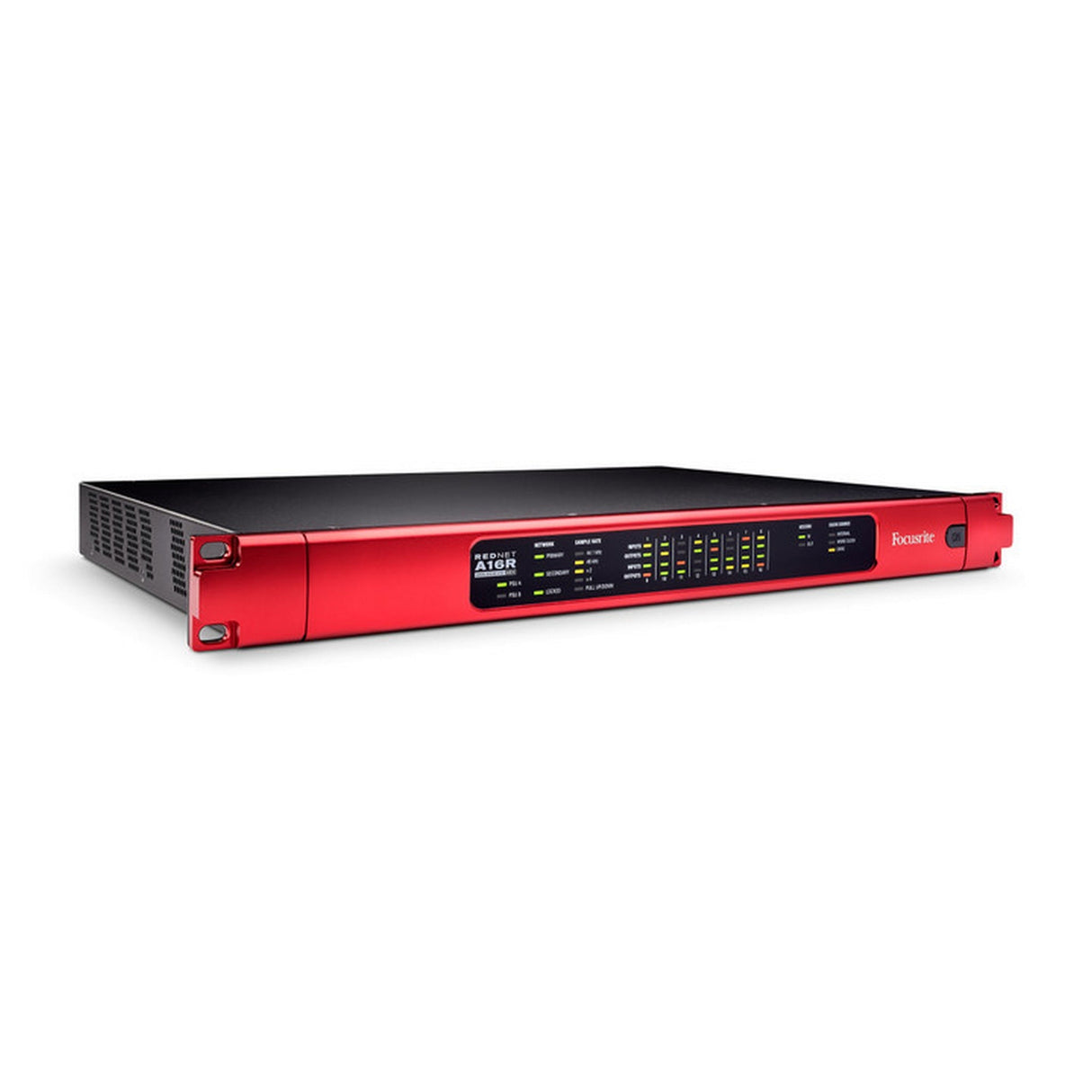

Focusrite RedNet A16R MkII 16-Channel Analog I/O Dante Audio Interface

The Focusrite RedNet A16R MkII is a high-performance 1U rackmount interface offering 16 channels of analog line-level I/O with precision level control, seamlessly integrated into Dante audio-over-IP networks. Engineered for reliability and flexibility, it features redundant power and network connections, remote control via RedNet Control software, and exceptional audio quality up to 24-bit/192 kHz.

Key Features

  • Analog I/O: 16 inputs and 16 outputs via four AES59-standard DB-25 connectors
  • Digital I/O: Stereo AES3 input and output via XLR (channels 17–18); includes sample-rate conversion on AES3 inputs
  • Audio Quality: Up to 24-bit/192 kHz; 119 dB dynamic range; flat frequency response from 20 Hz–20 kHz (±0.15 dB); THD+N < –100 dB
  • Level Control: Independent level trim, mute, and dim functionality per channel via RedNet Control
  • Redundancy: Dual locking etherCON Dante network inputs and dual internal power supplies with seamless auto switch-over
  • Clocking: Word Clock I/O via BNC and optional DARS sync via XLR; sample-rate conversion on AES3 channels
  • Monitoring: Front-panel LEDs for PSU, network, sample rate, clock source, and channel signal presence
  • Software Integration: Compatible with RedNet Control and Dante Controller; supports AES67, AES70, and SMPTE ST 2110 (with Dante Domain Manager)

Technical Specifications

  • Rack Size: 1U (19″ rack)
  • Dimensions: 482 mm × 44.5 mm × 352 mm (18.98″ × 1.75″ × 12.8″)
  • Weight: ~5.0 kg (11.1 lb)
  • Analog I/O: 16 Inputs, 16 Outputs via DB-25
  • Digital I/O: AES3 Input/Output (XLR); sample-rate conversion on AES3 Input
  • Audio Quality: 24-bit / 192 kHz max resolution; 119 dB dynamic range
  • Connectivity: Dual Dante etherCON, BNC Word Clock I/O, XLR DARS/AES3 input, IEC power connectors (x2)
  • Power Consumption: ~30 W (internal)

What's Included

  • 1x RedNet A16R MkII unit
  • 2x IEC power cables with retaining clips
  • 3-year manufacturer’s warranty
