Focusrite RedNet D16R MkII 16-Channel Digital I/O Dante Audio Interface
The RedNet D16R MkII is a 1U rackmount digital interface delivering 16 channels of AES3 input/output over Dante networks. Featuring per-channel level control, redundant power and Ethernet, sample rate conversion, and flexible clocking, it offers high reliability and precision for broadcast, live sound, post-production, and studio environments.
Key Features
- Channels: 16-channel bi-directional AES3 I/O via Dante audio-over-IP network
- Level Control: Individual input/output trim control in 1 dB steps via RedNet Control
- Redundancy: Dual IEC locking power supplies and dual etherCON network ports with auto switchover

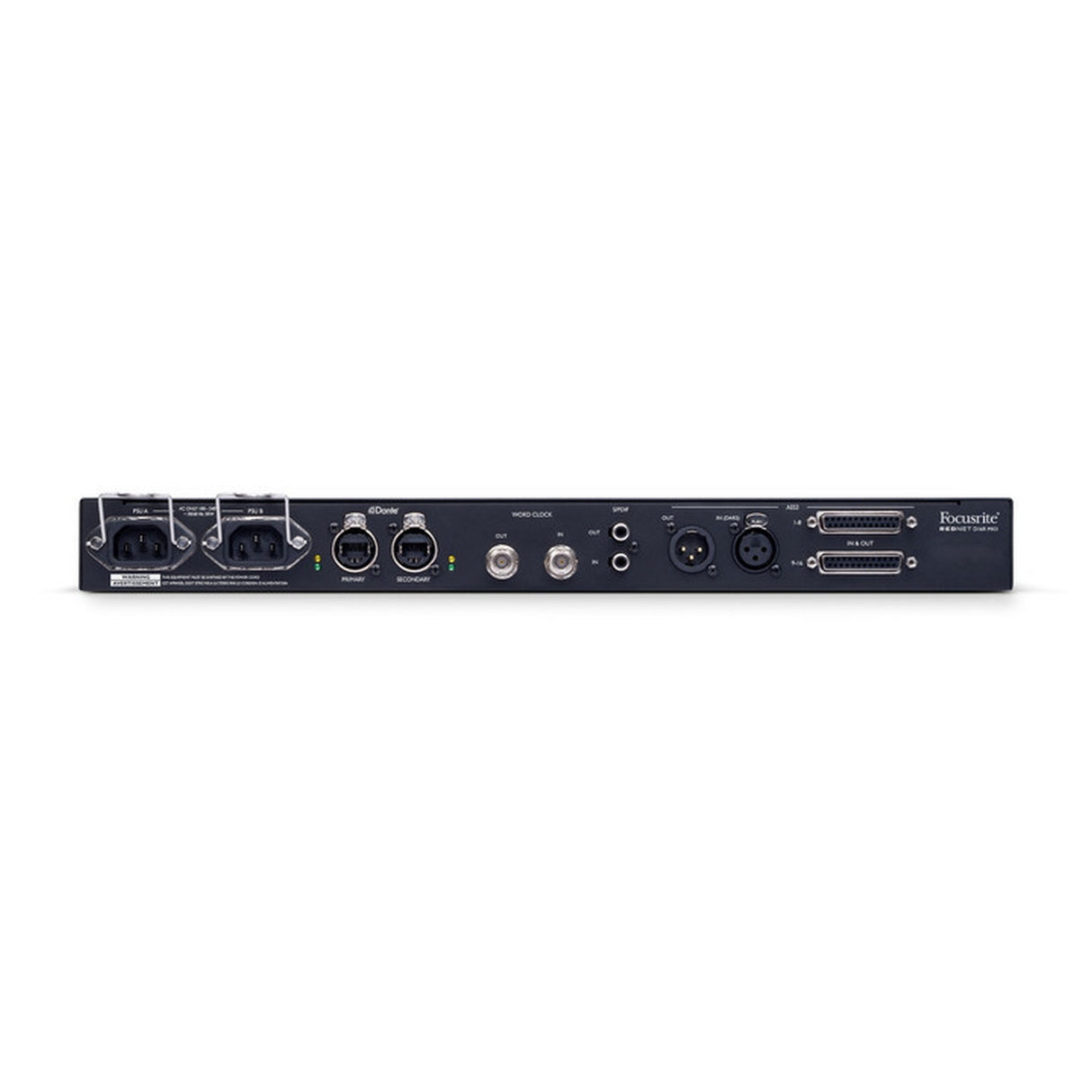

- Connectivity: Two DB25 AES59 connectors (8 channels each), XLR AES3/DARS I/O, RCA S/PDIF I/O, BNC Word Clock I/O
- Clock & Sync: Supports Word Clock and DARS sync on XLR, with sample rate conversion on all input channels
- Format Support: AES67-, AES70-compliant; sample rates up to 24-bit/192 kHz; operates transparently across different sample rates via ASRC

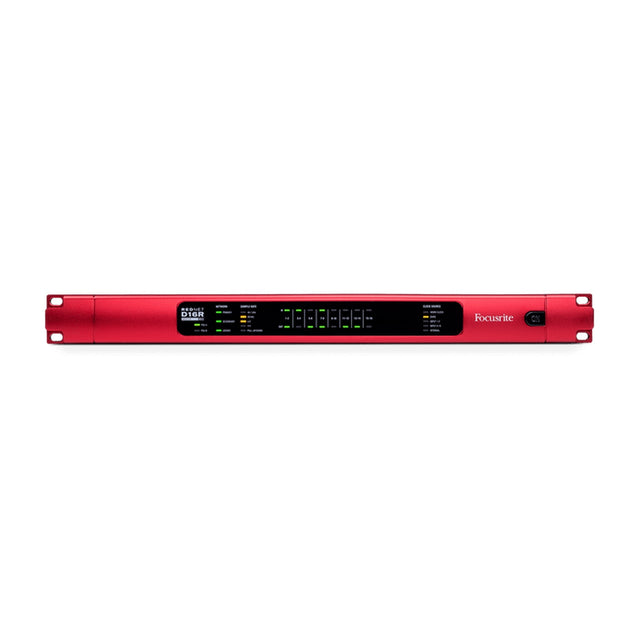

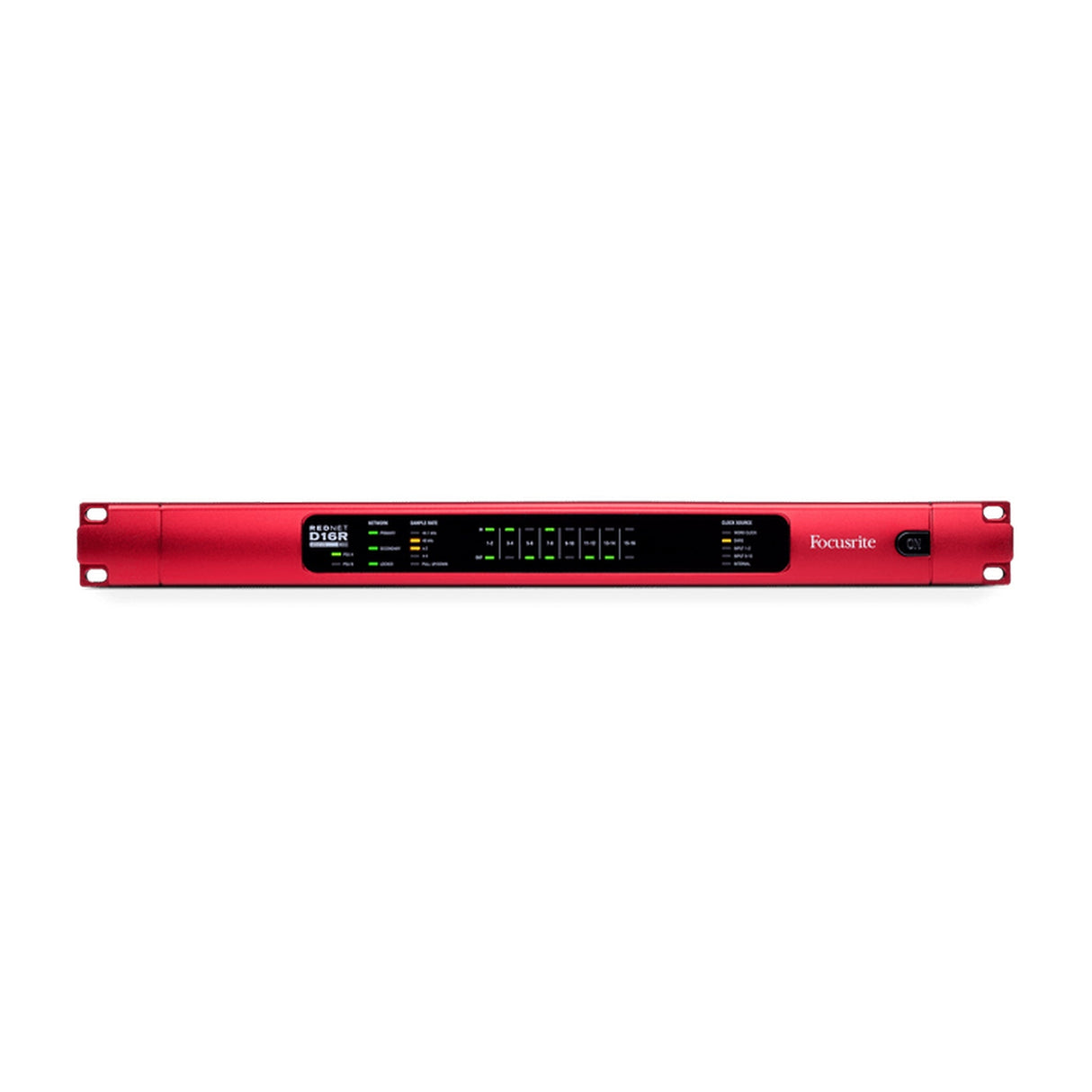

- Monitoring: Front-panel LEDs for power, network, sample rate, sync, and signal presence
- Software Control: Full integration with RedNet Control and Dante Controller for remote routing and management
- Build & Warranty: 1U rack chassis, rugged design, backed by a 3-year manufacturerās warranty
Technical Specifications
- Dimensions: 19.0" Ć 1.75" Ć 10.35" (482 Ć 44.5 Ć 263 mm)
- Weight: ~3.84 kg (8.4 lb)
- Power: ~30 W; dual internal PSUs
- Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (24-bit)
- Trim Range: ā78 dB to 0 dB in 1 dB steps (per channel)
- Sample Rate Conversion: On every input pair, supports asynchronous sources
What's Included
- 1x RedNet D16R MkII unit
- 1x IEC power cable
- Safety documentation + RedNet Getting Started guide
- Access to RedNet Control, Dante Controller, and Dante Virtual Soundcard via software download
- 3-year manufacturerās warranty
