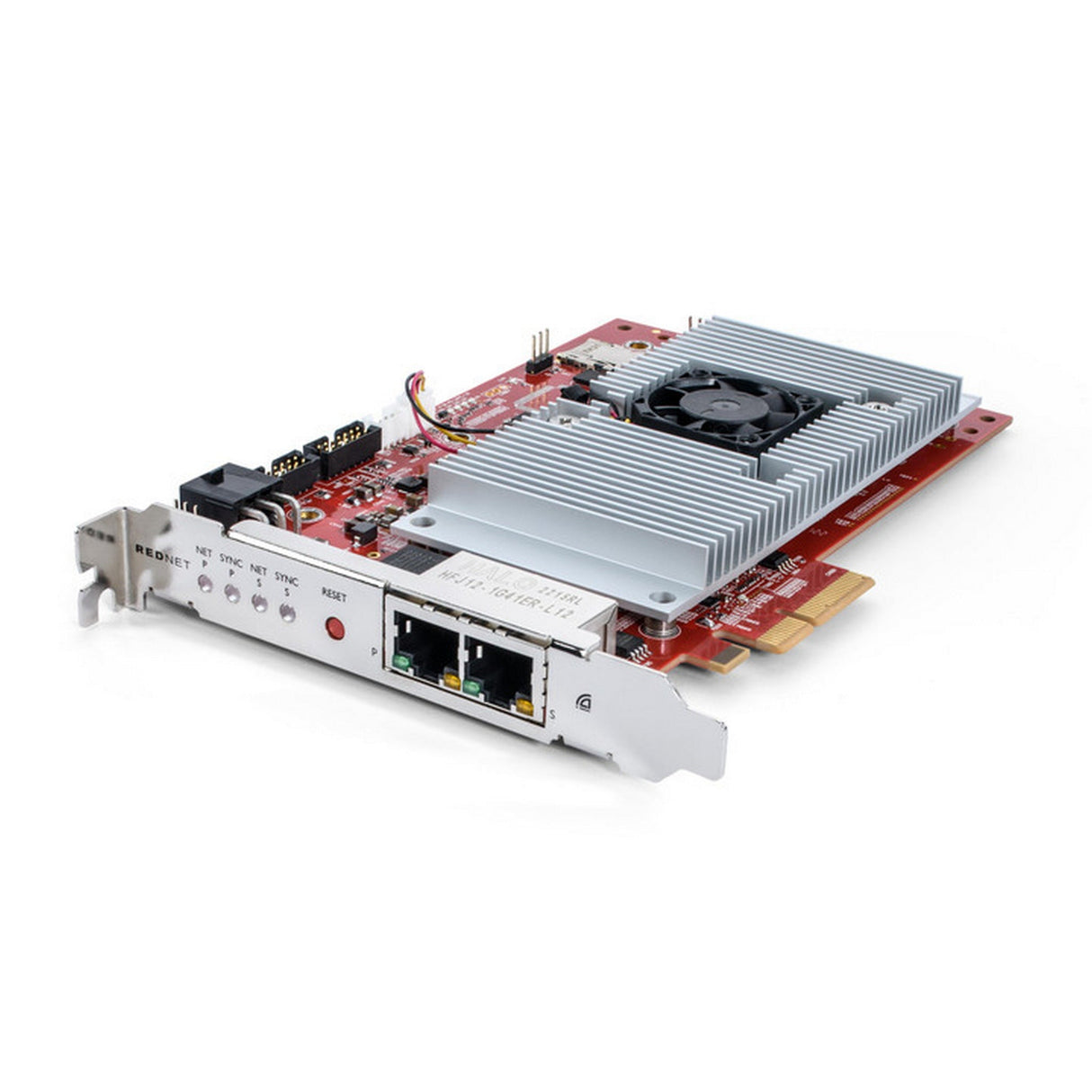

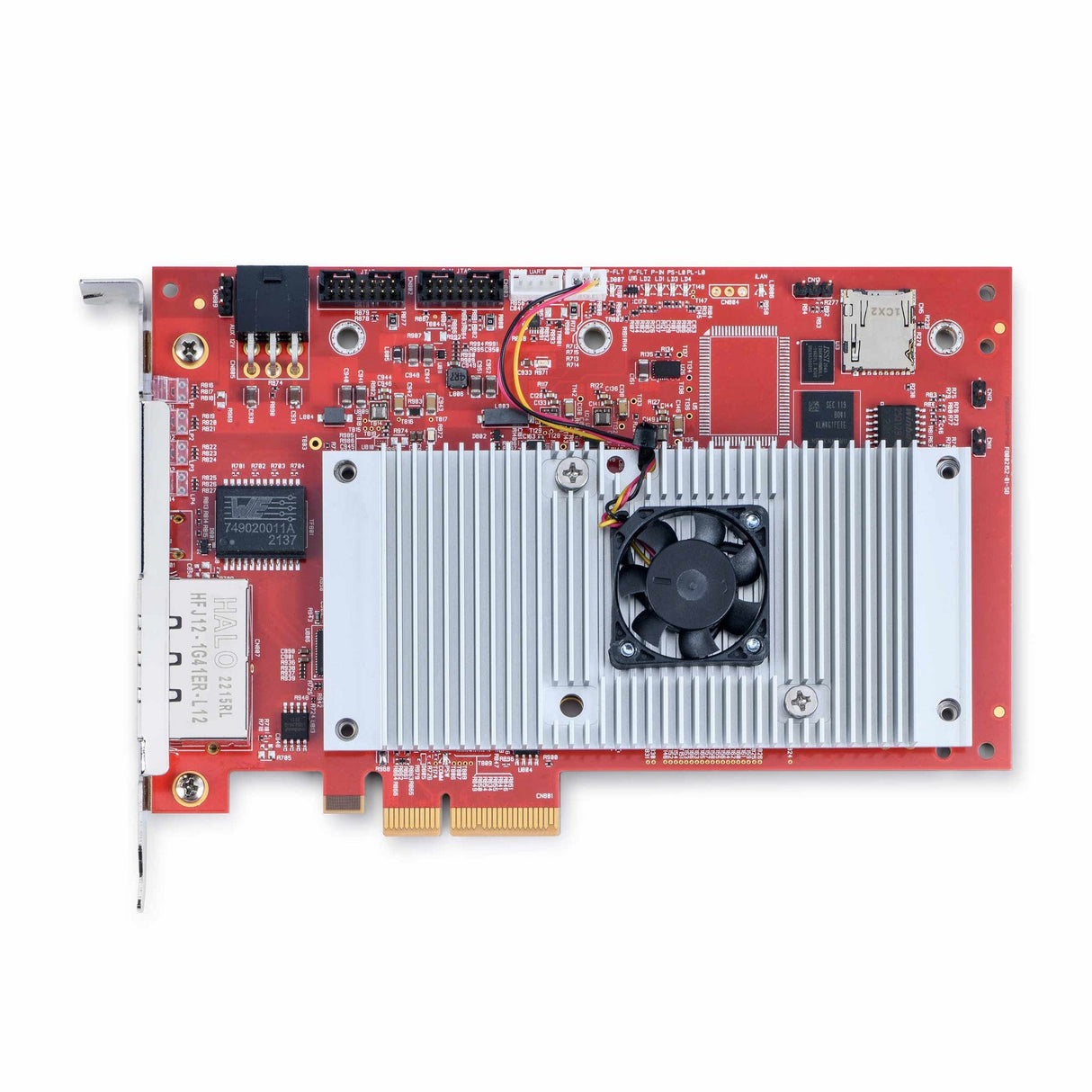

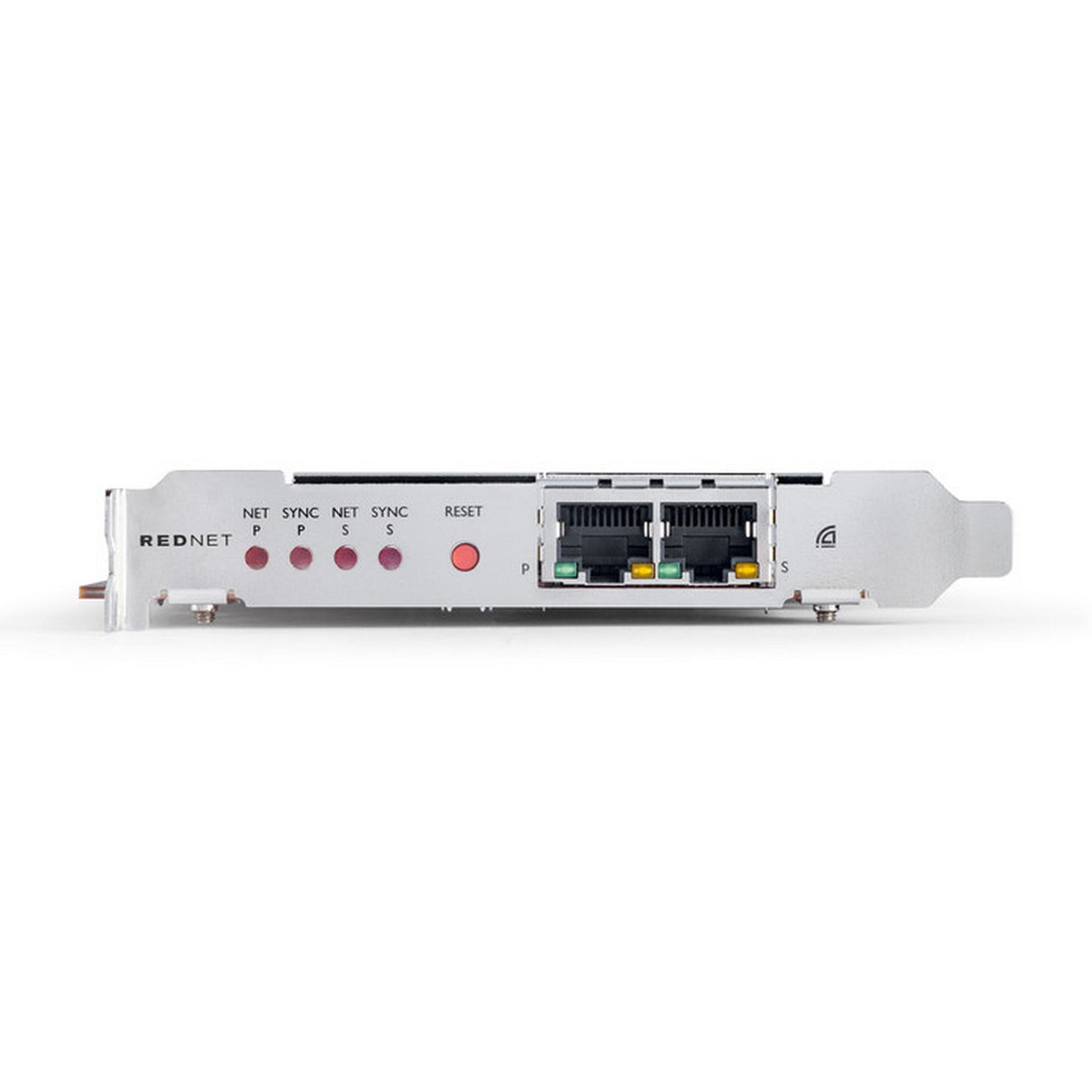

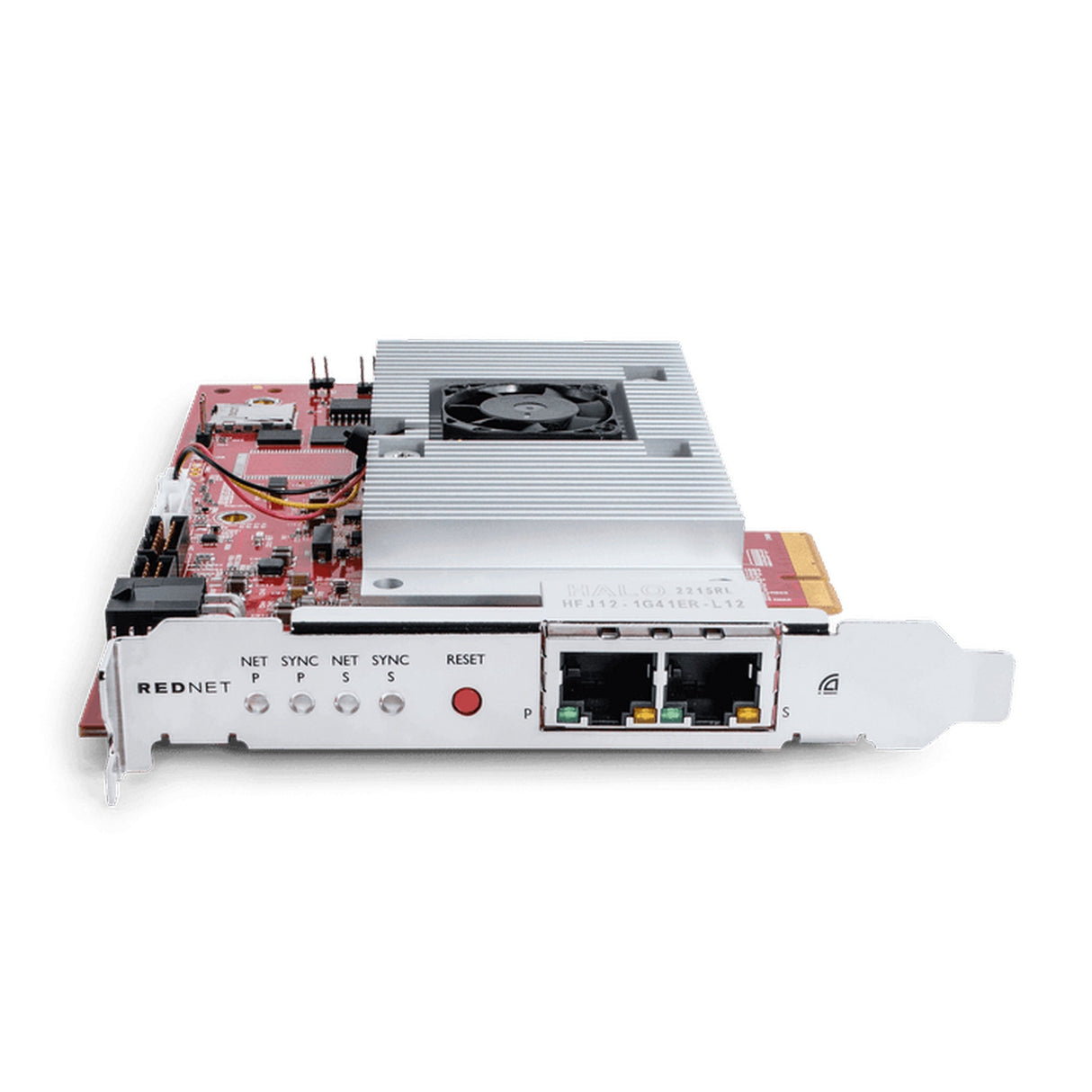

Focusrite RedNet PCIeNX Ultra-Low Latency Dante PCIe Interface
The RedNet PCIeNX is a high-performance PCIe audio interface card providing ultra-low-latency, high-channel-count Dante connectivity directly from a host system. Engineered for immersive workflows such as Dolby Atmos and professional post-production environments.
Key Features
- Channel Count: 128×128 simultaneous audio channels at up to 192 kHz — expandable to 256×256 (up to 96 kHz) via Dante Ready™ upgrade.
- Low Latency & High Performance: Ultra-low round-trip latency, perfect for immersive and high-density Dante setups.
- Connectivity: Dual RJ-45 ports support both switched and redundant Dante networks.
- Network Standards: Supports AES67, Dante Domain Manager, and compliance with SMPTE ST 2110 for broadcast environments.
- Driver Support: Multi-client ASIO and WDM on Windows; CoreAudio on macOS (Intel & Apple Silicon).
- Installation: Installs in any standard PCIe slot (4x to 16x lanes supported, PCIe 2.1 compliant) — compatible with Thunderbolt chassis.
- Control & Integration: Controlled via RedNet Control; integrates with the broader RedNet ecosystem.
- Warranty & Support: Backed by a 3-year manufacturer warranty and 24/7 technical support.
Technical Specifications
- Simultaneous I/O: 128×128 (expandable to 256×256 up to 96 kHz)
- Sample Rates Supported: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz; with pull-up/down ±4.167%, ±0.1%.
- Bit Depth: 24-bit PCM.
- Network: Gigabit Ethernet via two RJ-45 ports (redundant/switched)
- PCIe Form Factor: Full-height, half-width card; requires PCIe 2.1 slot (4x–16x lanes)
- Operating Temp: Up to 50 °C (122 °F) internal chassis
What's Included
- 1x RedNet PCIeNX interface card
- 1x 2m Cat 6A Ethernet cable
- 1x Safety and Product Registration documentation including RedNet Control and driver links
- 3-year Focusrite manufacturer warranty
