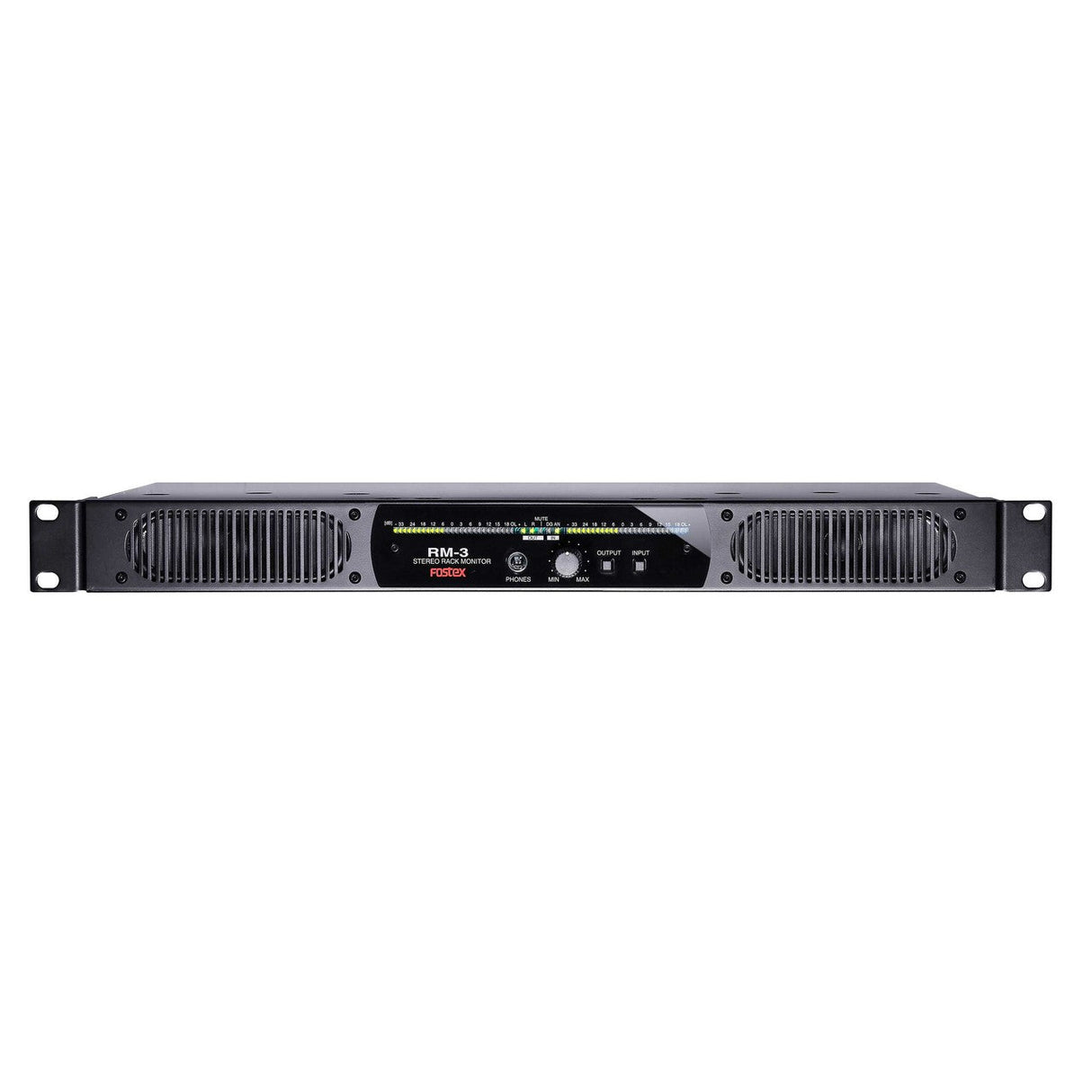

Fostex RM-3 Rackmount Stereo Monitoring System
Model RM-3 is a rack stereo powered monitor speaker system to succeed the current model RM-2.
New features include a THRU OUT, brightness adjustment of LED, and auto memory of Input / Output status etc. via newly added DIP switch on the rear panel.
The RM-3 is the ideal solution for monitoring needs in various space-challenged environments such as machine rooms, video monitoring, surveillance, mobile and stationary control rooms, theme park applications where audio monitoring is needed in a compact environment.
Key Features
- Rack mount stereo monitor speaker system with built-in 10W+10W D-class amplifier and 110x40mm elongated shape speaker units.
- Accepts both Analog input (XLR & 1/4”TS phone) and Digital Input (AES/EBU).
- Headphone out for headphone monitoring. When switching from headphone out to speaker out or vice versa, the output signal fades in to avoid unexpected level difference.
- Mute switch works as total mute or -20dB attenuation
- Highly visible 26-dot LED meter (L&R) with 4-step brightness adjustment
- Flexible meter setting for both Analog and Digital inputs such as VU+Peak, VU+Peakhold, Peak+Peakhold and VU only.
- Reference level (0dB) is selectable between +4dBu and 0dBu.
- Audio characteristics can be selected between the conventional VOICE mode and new MU-SIC mode for wider frequency range music source.
Technical Specifications
Speaker Section
Units
110 x 40 mm antimagnetic cone speakers
Frequency Response:
200 Hz - 20 kHz
Amplifier Section
Rated Output Power
10W x 2
Digital Input:
XLR-3-31 connector (AES/EBU)
Sampling Frequency:
44.1kHz to 96kHz
Analog Inputs:
XLR-3-31 connector (balanced)
Rated input level:
+4/0dBu
Input Impedance:
10k ohm or more
1/4” Phone jack (unbalanced)
Rated input level:
-10/-14 dBV
Input Impedance:
10k ohm or more
Digital THRU
XLR-3-31 connector (AES/EBU)
Analog THRU
XLR-3-31 / 1/4” TS phone
Phones:
1/4” stereo phones
Adapted load impedance:
16 ohm or more
Maximum output:
20mW + 20mW (32ohm, 1kHz)
Level Meter
26-dot LED x 2
Reference Level:
Digital -20dBFS
Analog
XLR +4/9dBu; TS phone -10/-14dBV
Distortion (T.H.D.)
0.1% or less
Dimensions
482 (H) x 44 (W) x 284 (D) mm (including protruding parts)
Weight
approx. 3.5 kgs
Power Requirement
AC 100V to 240V 50/60Hz
Power Consumption
10 W (0.5W or less in standby mode)
