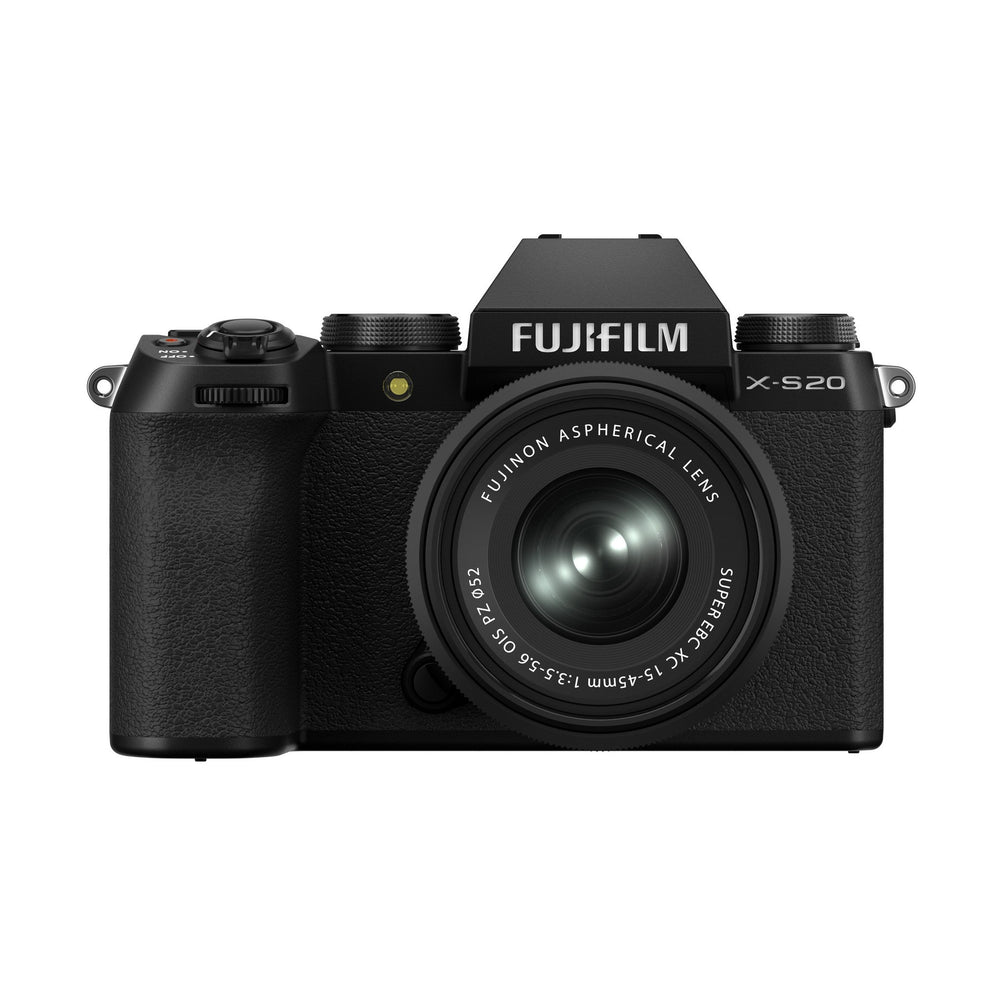

Fujifilm X-S20 Mirrorless Camera with 15-45mm Lens, Black

Designed for both stills and video creation, X-S20 offers a powerful combination of creative features and cutting-edge technology in a lightweight body. The 26.1-megapixel X-Trans CMOS 4 sensor and X-Processor 5 imaging engine combine to deliver a blistering performance, recording video up to 6.2K and uncropped still images at up to 20 frames-per-second. A powerful in-body image stabilizer offers up to seven stops of compensation, plus battery life has been dramatically increased, managing more than double the images per charge compared to its predecessor X-S10 model. Vlog mode makes it simple to get pro-quality footage, while Fujifilm’s 19 unique Film Simulation modes complete the picture, delivering stunning colors straight out of camera.

X-S20 offers the perfect blend of power and portability to turn thoughts and ideas into reality. Weighing just 491g (1.08 lb), with a deep handgrip, X-S20 ensures a confident, comfortable hold with even the most sizable lens attached. X-S20 delivers stunning 26.1-megapixel images straight out of camera using Fujifilm's acclaimed color science, at up to 20fps in electronic shutter mode. Its 180 Vari-Angle LCD touchscreen makes selfie-style shots or wild angles a snap and intuitive layout enables creatives of any level to create as soon as their hands touch the camera.

X-S20 combines powerful sensor and processor technologies to deliver a blistering performance for stills and video allowing you to capture the moment any way you need. For the first time in an X-S Series model, the X-Trans CMOS 4 sensor is paired with an X-Processor 5 imaging engine, resulting in high-speed image and video processing alongside unparalleled autofocus speed and accuracy. A new AF algorithm offers the same subject detection functionality as Fujifilms range-topping X-H2S, so you can move as fast as the world around you. X-S20 also features Auto Subject Detection AF, perfect for hassle-free creativity.

Thoughtful ergonomics and cutting-edge technology make camera shake and blurry imagery a distant memory with X-S20. The camera's large handgrip makes for a secure, comfortable hold. At the same time, five-axis in-body image stabilization (IBIS) has been improved from that available in the predecessor X-S10 model, offering up to seven stops of compensation, ensuring that handheld videography and low-light image-making are nothing to fear. The X-S20 represents a one-stop gain over the previous IBIS system found in the X-S10.

In addition to being a competent stills machine, X-S20 excels at video creation whether vlogging, live streaming, or making full-length features. The new Vlog mode puts professional-quality footage in easy reach, enabling users to focus on the unboxing of new items or to defocus cluttered backgrounds with a tap. A 3.5mm jack makes it effortless to connect various accessories, including the optional TG-BT1 grip which can be added for hands-free wireless operation. Stream 4K/60P footage directly from USB-C*, or internally record up to 6.2K/30p video in 4:2:2 10-bit color when the story calls for it. *4K output requires a 4K-compatible monitor, a USB-C cable of USB 3.0 or greater, and supported software.

X-S20s impressive battery significantly enhances longevity, letting creatives create content on the go without battery life concerns. Its NP-W235 Li-ion battery delivers an impressive 750 frames in Normal mode more than twice the number possible with the previous, X-S10 model. Or, switch X-S20 into economy mode, and make up to 800 frames on a single charge.

Fujifilm cameras are synonymous with stunning colors. Featuring 19 Film Simulation modes, including the recently introduced Nostalgic Negative, X-S20 is no different, giving users a powerful, in-camera palette reminiscent of Fujifilms analog film stocks of the past. These modes, perfected through decades of photographic experience, are available at the touch of a button, affording users endless creativity without spending hours on a computer screen. Whether making stills or videos, choose the Film Simulation mode that suits the scene, and start creating!

Key Features

• 1 megapixel X-Trans CMOS 4 sensor and X-Processor 5
• Up to 7 stops of Internal Body Image Stabilization (IBIS)
• 2K/30P, 4K/60P 4:2:2 10bit internal recording
• Auto mode and Vlog mode
• 5mm microphone/headphone jack and optional TG-BT1 accessory for vloggers
• 19 Film Simulation modes, including Nostalgic Negative

Technical Specifications

Number of Effective Pixels
26.1 millions pixels
Image Sensor
23.5mm x 15.6mm (APS-C) X-Trans CMOS 4 with primary color filter
Sensor Cleaning System
Ultra Sonic Vibration
Storage Media
SD Card (-2GB) / SDHC Card (-32GB) / SDXC Card (-2TB) / UHS-I / UHS-II / Video Speed Class V90 *Please visit https://fujifilm-x.com/support/compatibility/cameras to check memory card compatibility.
File format (Still)
DCF compliant with Design rule for Camera File System, JPEG-Exif Ver.2.32, HEIF-4:2:2 10bit, RAW-14bit RAW (RAF original format), TIFF-8bit / 16bit RGB (In-camera Raw Conversion Only)
*Exif 2.32 is a digital camera file format that contains a variety of shooting information for optimal printing
Number of Recorded Pixels
L: <3:2> 6240 x 4160 <16:9> 6240 x 3512 <1:1> 4160 x 4160
M: <3:2> 4416 x 2944 <16:9> 4416 x 2488 <1:1> 2944 x 2944
S: <3:2> 3120 x 2080 <16:9> 3120 x 1760<1:1> 2080 x 2080
Lens Mount
FUJIFILM X mount
Sensitivity Standard Output
STILL: AUTO1/ AUTO2/ AUTO3/ ISO16012800 (1/3 step)
MOVIE: AUTO/ ISO12512800 (1/3 step)
Sensitivity Extended Output
STILL: ISO80/ISO100/ ISO125/ISO25600/ ISO51200
MOVIE: ISO25600
Exposure Control
TTL 256-zone metering/ Multi/ Spot/Average/ Center Weighted
Exposure Mode
P (Program AE)/ A (Aperture Priority AE)/ S (Shutter Speed Priority AE)/ M (Manual Exposure)
Exposure Compensation
STILL: -5.0EV+5.0EV (1/3EV step)/ MOVIE: -2.0EV+2.0EV (1/3EV step)
Image Stabilizer Mechanism
Image sensor shift mechanism with 5-axis compensation
Image Stabilizer Compensation Effect
Up to 7.0 stops (based on CIPA standard). Pitch/yaw shake only, with XF35mmF1.4 R lens attached.
Image Stabilizer Digital Image Stabilization
Yes, movie mode only
Image Stabilizer IS MODE BOOST
Yes, movie mode only
Shutter Type
Focal Plane Shutter
Shutter Speed Mechanical Shutter
P mode: 30 sec to 1/4000
A mode: 30sec to 1/4000
S/M mode: 15min to 1/4000
Bulb mode: up to 60min
Shutter Speed Electronic Shutter
P mode: 30 sec to 1/32000
A mode: 30sec to 1/32000
S/M mode: 15min to 1/32000
Bulb mode: 1sec Fixed
Shutter Speed Mechanical + Electronic Shutter
P mode: 30 sec to 1/32000
A mode: 30sec to 1/32000
S/M mode: 15min to 1/32000
Bulb mode: up to 60min
*Mechanical shutter works until 1/4000sec.
Shutter Speed Movie
6.2K: 1/4000 to 1/24
DCI 4K/4K: 1/4000 to 1/24 sec.
FHD: 1/4000 to 1/24 sec.
*Cannot choose slower shutter speed than framerate for some settings.
Synchronized Shutter Speed for Flash
Mechanical Shutter: 1/180sec. or slower
Continuous Shooting
Electronic Shutter Approx. 30fps (1.25x Crop) (JPEG: 407 frames, Compressed RAW: 88, Lossless Compressed RAW 62, Uncompressed RAW: 28 frames, Compressed RAW + JPEG: 41 frames, Lossless compressed RAW + JPEG 36 frames, Uncompressed RAW + JPEG: 28 frames)
Electronic Shutter Approx. 20fps (1.25x Crop) (JPEG: 1000+ frames, Compressed RAW: 104, Lossless Compressed RAW: 72, Uncompressed RAW: 30 frames, Compressed RAW + JPEG: 66, Lossless compressed RAW + JPEG: 53, Uncompressed RAW + JPEG: 30)
Electronic Shutter Approx. 30fps (1.25x Crop) (While half press 30 frames, After full press 75 frames)
Electronic Shutter Approx. 20fps (1.25x Crop) (While half press 20 frames, After full press 576 frames,)
Electronic Shutter Approx. 10fps (1.25x Crop) (While half press 10 frames, After full press 1000+ frames,)
Electronic Shutter Approx. 8fps (While half press 8 frames, After full press 1000+ frames,)
*Recordable frames depends on recording media
*Speed of continuous shooting depends on shooting environment and shooting frames"
AE Bracketing
AE Bracketing (Frames: 2, 3, 5, 7, 9 Step: by 1/3EV step, up to 3EV steps)
Film simulation bracketing (Any 3 types of film simulation selectable)
Dynamic Range Bracketing (100%, 200%, 400%)
Focus Mode
Single AF/ Continuous AF/ MF
Focus Type
Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF)
Focus Low-light Performance
Contrast: -4.0EV
Phase Detection: -7.0EV
*XF50mmF1.0 attached
AF Frame Selection
Single point AF: 139/ 2517 (Changeable size of AF frame)
Zone AF: 33/ 55/ 77 from 117 areas on 139 grid
Wide/Tracking AF AF-S: Wide/ AF-C: Tracking
All
White Balance
Auto (WHITE PRIORITY, AUTO, AMBIENCE PRIORITY)/ Custom1 - 3/ Color temperature selection (2500K10000K)/ Preset Daylight, Shade, Fluorescent Light-1, Fluorescent Light-2, Fluorescent Light-3, Incandescent Light, Underwater
Self-timer
10sec./2sec.
Interval Timer Shooting
Yes (Setting: Interval, Number of shots, starting time, Interval timer shooting exposure smoothing)
Flash
EF-X8 Guide Number approx. (ISO200m) / approx. 5 (ISO100m)
Flash Sync Mode
Shoe Mount Flash: 1st Curtain/ 2nd Curtain AUTO FP (HSS)
Synchronized terminal: 1st Curtain/ 2nd Curtain.
Flash Mode
TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / COMMANDER / OFF Shoe Mount Flash TTL (TTL AUTO) / STANDARD / SLOW SYNC. ) / MANUAL / MULTI
* When EF-X500 is set/ OFF Synchronized terminal MANUAL
Hot Shoe
Yes (Dedicated TTL Flash compatible)
Viewfinder EVF
0.39” inch approx. 2.36 million dots OLED Color Viewfinder
Coverage of viewing area vs. capturing area: approx. 100%
Eyepoint: approx. 17.5mm (from the Rear End of the camera's Eyepiece) Diopter adjustment: -4~+2m-1
Magnification: 0.62 with 50mm lens (35mm equivalent) at infinity and Diopter set to -1.0m-1
Diagonal angle of view: approx. 31 (Horizontal angle of view: approx. 26) Built-in eye sensor"
LCD Monitor
3.0-inch vari-angle Touch Screen Color LCD Monitor
Aspect Ratio 3:2
Resolution: Approx. 1.84 million dots
Touch Screen Shooting Mode
Shooting, AF, Focus Area, OFF, Double Tap Setting (ON/OFF), Touch Function Setting (ON/OFF), EVF Touch Screen Area Setting
Touch Screen Playback Mode
Swipe, Pinch-in / Pinch-out, Double-tap, Drag
File format (Movie)
HEVC/ H.265
Audio: Linear PCM / Stereo sound (24bit / 48KHz sampling)
MPEG-4, AVC/ H.264
Audio: Linear PCM / Stereo sound (24bit / 48KHz sampling)
MP4, MPEG-4, AVC/ H.264
Audio: AAC
Movie Compression
All Intra/Long-GOP
File Size / Frame Rate / Recording Time
6.2K <16:9> - 62403150
29.97p/ 25p/ 24p/ 23.98p
360Mbps/ 200Mbps/ 100Mbps/ 50Mbps
DCI 4K <17:9> - 40962160
59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p
360Mbps/ 200Mbps/100Mbps/50Mbps
4K <16:9> - 38402160
59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p
720Mbps/ 360Mbps/ 200Mbps/ 100Mbps/ 50Mbps
Full HD <17:9> -20481080
59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p
360Mbps/ 200Mbps/ 100Mbps/ 50Mbps
Full HD <16:9> - 19201080
59.94p/ 50p/ 29.97p/ 25p/ 24p/ 23.98p
360Mbps/ 200Mbps/ 100Mbps/ 50Mbps
Full HD High speed rec. <17:9> - 2048x1080
240p/200p/ 120p/ 100p
360Mbps(recording)/ 200Mbps(recording)
Full HD High speed rec. <16:9> - 1920x1080
240p/200p/ 120p/ 100p/
360Mbps(recording)/ 200Mbps(recording)
*For recording movies, use a SD memory card with UHS Speed Class 3 or higher.
*For recording movies in 360Mbps, use a SD memory card with Video Speed Class 60 or higher.
*Selectable bitrate will be changed depends on the setting.
*Recording length can shorten depending on the temperature and/or shooting conditions
Film Simulation Mode
19 modes (PROVIA/Standard, Velvia/Vivid, ASTIA/Soft, Classic Chrome, PRO Neg.Hi, PRO Neg.Std, Classic Neg., Nostalgic Neg., ETERNA Cinema, ETERNA BLEACH BYPASS, ACROS, ACROS + Ye Filter, ACROS + R Filter
ACROS + G Filter, Black & White, Black & White + Ye Filter, Black & White + R Filter, Black & White + G Filter, Sepia)
Clarity setting
5 steps
Monochromatic Color
Yes
Grain Effect
Roughness STRONG, WEAK, OFF, Size LARGE, SMALL
Color Chrome Effect
STRONG, WEAK, OFF
Color chrome Blue
STRONG, WEAK, OFF
Dynamic Range Setting
AUTO, 100%, 200%, 400%
ISO restriction (DR100%: No limit, DR200%: ISO320 or more, DR400%: ISO640 or more)
Dynamic Range Setting (Movie)
100%, 200%, 400%
ISO restriction (DR100%: No limit, DR200%: ISO320 or more, DR400%: ISO640 or more)
Wireless Transmitter Standard
IEEE802.11a/b/g/n/ac (standard wireless protocol)
Wireless Transmitter Encryption
WEP/WPA/WPA2 mixed mode, WPA3
Wireless Transmitter Access Mode
Infrastructure
Terminal - Digital Interface
USB Type-C (USB3.2 Gen2x1)
Terminal - HDMI Output
HDMI connector (Type D)
Terminal - Others
3.5mm, stereo mini connector (Microphone),
3.5mm, stereo mini connector (Headphone),
Hot shoe
Power Supply
NP-W235 Li-ion battery (included)
Battery Life for Still Images
Economy Mode Approx. 800 frames,
Normal Mode Approx. 750 frames
*When XF35mmF1.4 R is set
Actual Battery Life for Movie Capture
6.2K Approx. 85min. (29.97p)
4K Approx. 80min. (59.94p)
Full HD Approx. 95min. (59.94p)
Full HD Approx. 95min. (120P)
Continuance Battery Life for Movie Capture
6.2K Approx. 120min. (29.97p)
4K Approx. 110min. (59.94p)
Full HD Approx. 150min. (59.94p)
*Face detection is set to OFF
*Approximate number of frames or movie recording time that can be taken with a fully-charged baed on CIPA Standard.
Approximate External Camera Dimensions
(W) 127.7mm x (H) 85.1mm x (D)65.4mm - Minimum Depth 32.9mm
Camera Width (mm)
127.7
Camera Height (mm)
85.1
Camera Depth (mm)
65.4
Camera Minimum Depth (mm)
32.9
Camera Width (in)
5.03
Camera Height (in)
3.35
Camera Depth (in)
2.57
Camera Minimum Depth (in)
1.29
Camera Body Weight
Approx. 491g including battery and memory card, Approx. 410g excluding battery and memory card
Operating Temperature
0C-40C
Operating Humidity
10% - 80% (no condensation)
What's Included
Li-ion battery NP-W235
AC power adapter AC-5VJ
Plug adapter
USB cable
Shoulder strap
Body cap
Cooling fan connector cover
QR Code to Online Manual
