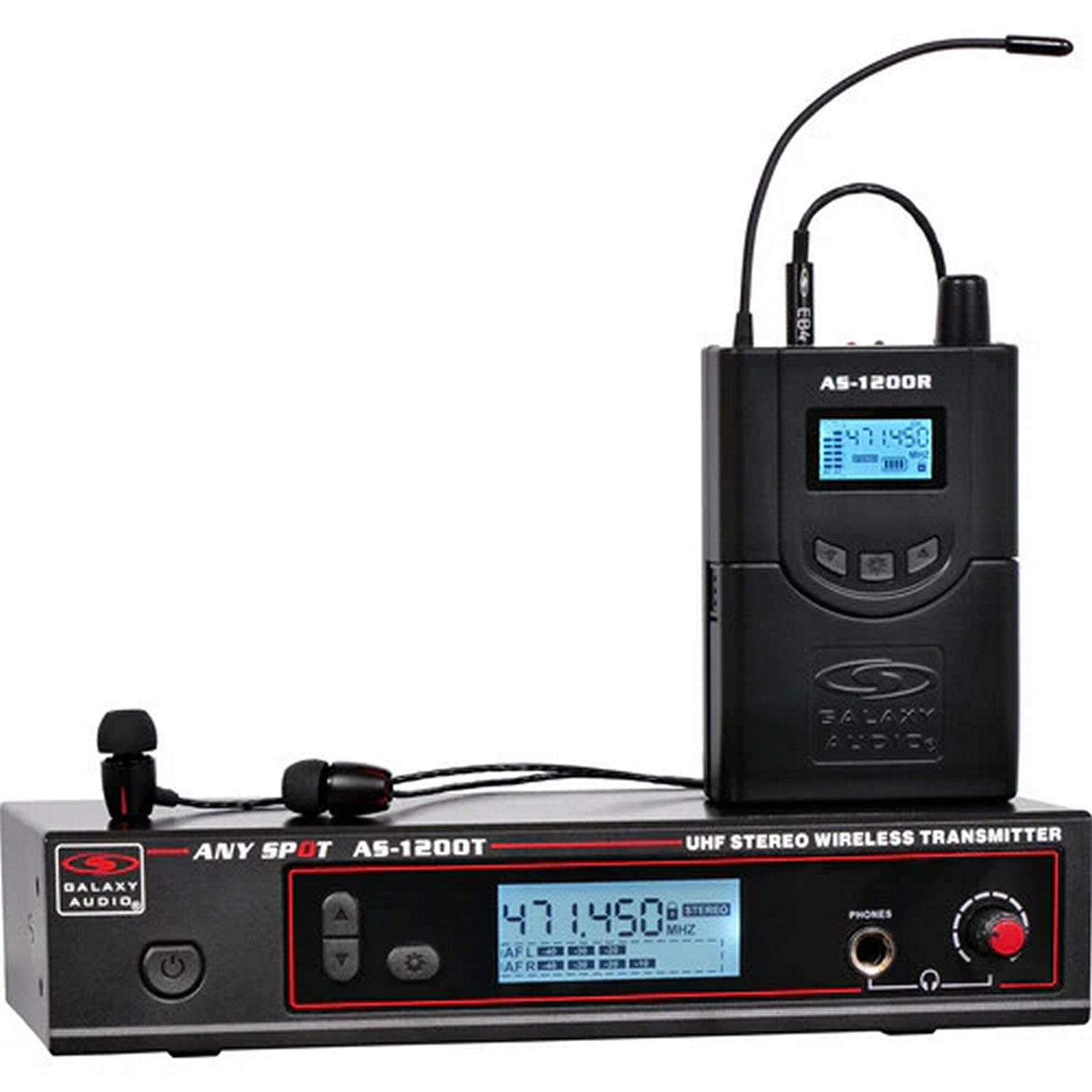

Galaxy Audio AS-1200 In-Ear Monitor System (N Band)
The Galaxy Audio AS-1200 N-band system delivers a clear, personal monitor mix over UHF frequencies to performers on stage. This single-receiver pack includes one AS-1200T half-rack transmitter and one AS-1200R bodypack receiver with EB4 earbuds, offering reliable wireless monitoring in the 518–542 MHz range.
Designed for solo artists, duos, and monitor engineers, the AS-1200 features 210 user-selectable channels, balanced XLR/¼" combo inputs on the transmitter, and a backlit LCD interface for quick frequency setup and signal metering. The compact receiver runs on two AA batteries for up to five hours of uninterrupted performance.
Use this N-band configuration for situations requiring a single in-ear monitoring feed without stage wedges, ideal for intimate venues, houses of worship, and touring musicians.
Key Features
- System: UHF wireless in-ear monitoring (1 transmitter + 1 receiver)
- Frequency Band: N-band 518–542 MHz
- Channels: 210 user-selectable UHF frequencies
- Transmitter I/O: 2 × XLR/¼" combo inputs with independent gain controls; ¼" headphone monitor output
- Receiver Output: 1/8" (3.5 mm) stereo earphone jack; compatible with standard earbuds
- RF Power & Range: 10 mW output; up to 300' (92 m) typical range
- Power: Transmitter: external 12–18 V DC; Receiver: 2 × AA (≈ 5 hr alkaline)
- Display & Controls: Backlit LCDs on both units with AF/RF metering, channel selection, battery indicator, and panel lock
- Durability: Rubberized receiver housing and built-in limiter for protection
- Included Earbuds: EB4 titanium-driver in-ear buds with standard cable
- Rackmountable: Half-rack transmitter with rack ears and removable BNC antenna
Technical Specifications
- System Band: UHF
- Frequency Range: 518–542 MHz (N-band)
- Selectable Frequencies: 210
- RF Output: 10 mW
- Audio Response: 70 Hz – 13.5 kHz (±3 dB)
- Total Harmonic Distortion: < 1% @ 1 kHz
- Signal-to-Noise Ratio: > 80 dBA
- Dynamic Range: > 88 dB (A-weighted)
- Max Deviation: ± 15 kHz
- Operating Range: Up to 300' / 92 m
- Operating Temp: 14 °F – 122 °F (–10 °C – +50 °C)
- Transmitter Dimensions: 1.50" × 8.30" × 3.78" (3.81 × 21.08 × 9.60 cm)
- Transmitter Weight: 22.0 oz (1.375 lb / 0.624 kg)
- Receiver Dimensions: 3.73" × 2.54" × 1.00" (9.47 × 6.45 × 2.54 cm)
- Receiver Weight: 3.2 oz (0.200 lb / 0.091 kg) without batteries
What's Included
- AS-1200T half-rack transmitter with rack ears
- One AS-1200R bodypack receiver
- EB4 earbuds (one pair)
- Removable BNC antenna
- External power supply for transmitter
- Quick Start Guide
