Galaxy Audio AS-1200TD UHF Transmitter (D Band 584–607 MHz)

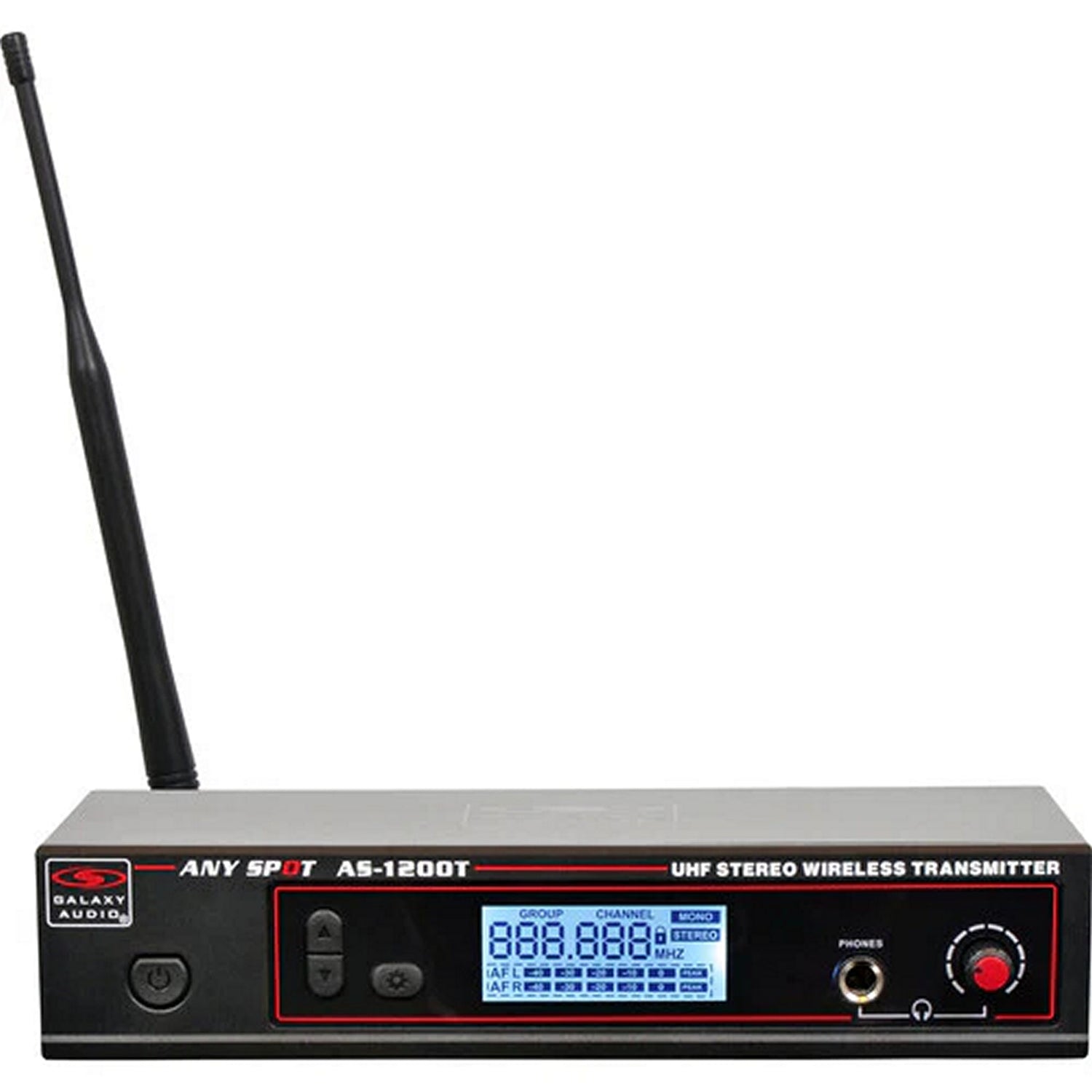

The Galaxy Audio AS-1200TD is a half-rack UHF transmitter designed for professional in-ear monitoring in the D band (584–607 MHz). It provides a stable 10 mW RF output and accepts two balanced combo XLR/¼" inputs, delivering a clean stereo or mono feed to any AS-1200 series bodypack receivers.
Built for live sound applications, the AS-1200TD features 210 user-selectable UHF channels, a backlit LCD for AF/RF metering and channel selection, and independent input level controls. Rack ears and a removable BNC antenna are included for flexible installation.
Use the AS-1200TD transmitter to expand your in-ear system or replace a worn unit, maintaining reliable wireless coverage and high-fidelity audio for performers on stage.
Key Features
- Frequency Band: D band (584–607 MHz)
- Selectable Channels: 210 user-selectable UHF frequencies
- RF Output: 10 mW for up to 300’ (92 m) range
- Inputs: 2 × XLR/¼" combo line inputs with independent level controls
- Monitoring: Front-panel ¼" headphone output with level control
- Display: Backlit LCD for AF/RF metering, channel/group, stereo/mono, and lock
- Power: External 12–18 V DC supply (included)
- Installation: Half-rack form factor with rack ears and removable BNC antenna
- Durability: Rugged metal chassis for road-ready reliability
Technical Specifications
- System Band: UHF
- Frequency Range: 584–607 MHz (D band)
- Channel Count: 210
- RF Output Power: 10 mW
- Audio Frequency Response: 70 Hz – 13.5 kHz (±3 dB)
- Total Harmonic Distortion: <1% @ 1 kHz
- Signal-to-Noise Ratio: >80 dBA
- Dynamic Range: >88 dB (A-weighted)
- Maximum Deviation: ±15 kHz
- Dimensions: 1.50" × 8.30" × 3.78" (3.81 × 21.08 × 9.60 cm)
- Weight: 22 oz (1.375 lb / 0.624 kg)
- Operating Temperature: 14 °F – 122 °F (-10 °C – +50 °C)
What's Included
- AS-1200TD half-rack transmitter (D band)
- Rack ears (single and dual)
- Removable BNC antenna
- External 12–18 V DC power supply
- Quick Start Guide
