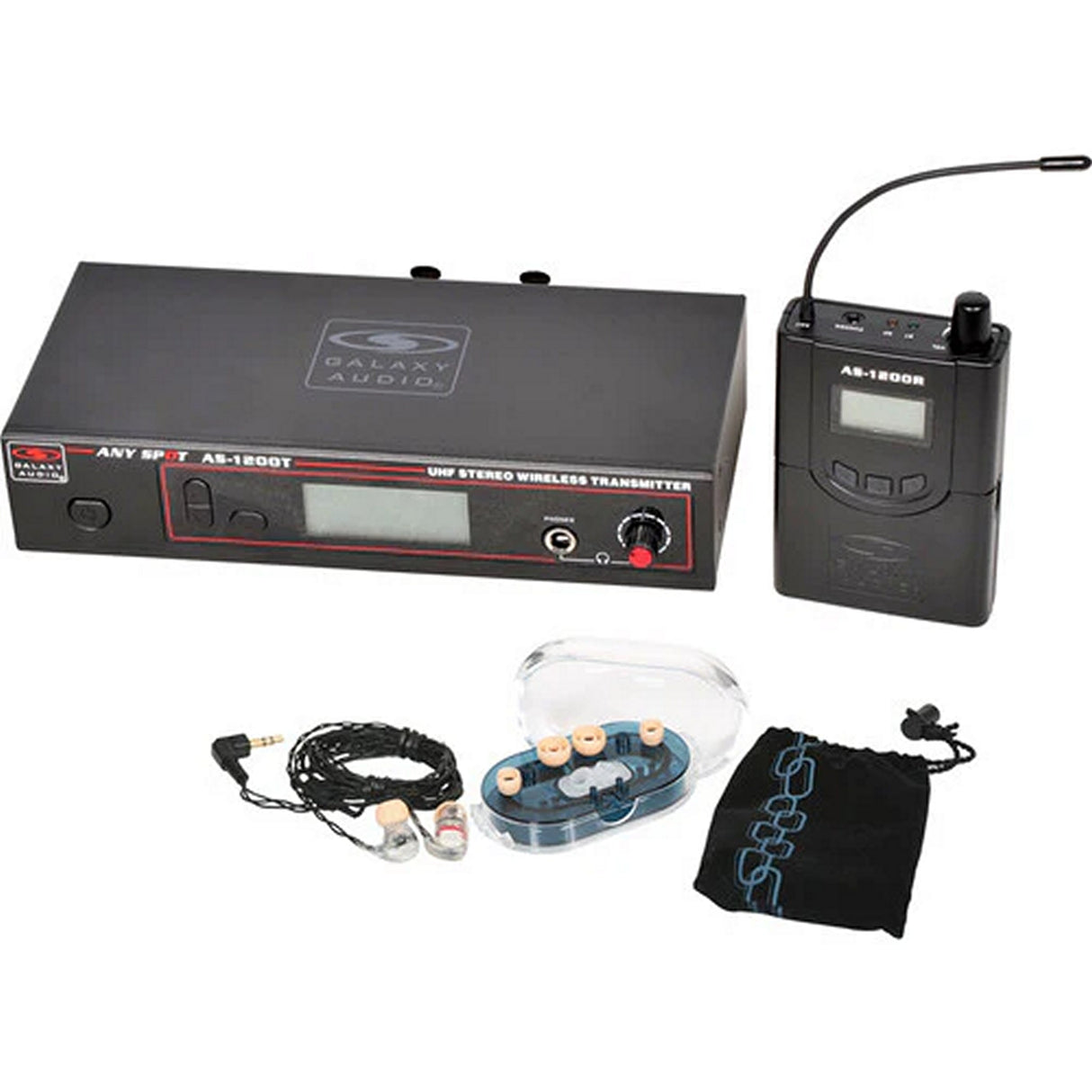

Galaxy Audio AS-1206 Wireless In-Ear Monitor System (N Band)
The Galaxy Audio AS-1206 is a professional UHF wireless in-ear monitoring system, delivering a personal stereo or mono mix to on-stage performers. Operating in the N band (518–542 MHz), this single-receiver system includes a half-rack AS-1200T transmitter and one AS-1200R bodypack receiver, each paired with EB6 balanced-armature earbuds for outstanding clarity and wireless reliability.
Designed for solo musicians, duos, and venue installations, the AS-1206 features 210 user-selectable UHF channels, balanced XLR/¼" combo inputs, independent input level controls, and a backlit LCD for fast setup and signal metering. The lightweight, belt-pack receiver runs on two AA batteries for up to five hours, offering freedom of movement for any performance.
This system is perfect for artists seeking consistent, high-fidelity wireless monitoring without the clutter of floor wedges or cables.
Key Features
- System: UHF wireless in-ear monitor system — 1 transmitter + 1 bodypack receiver
- Frequency Band: N band (518–542 MHz)
- Channels: 210 user-selectable UHF frequencies
- Transmitter I/O: 2 × XLR/¼" combo line inputs with independent gain; front ¼" headphone output
- Receiver Output: 1/8" (3.5 mm) stereo jack; compatible with standard earbuds
- RF Power & Range: 10 mW output; up to 300' (92 m) typical range
- Power: Transmitter: external 12–18 V DC; Receiver: 2 × AA (≈ 5 hr alkaline)
- Display & Controls: Backlit LCDs with AF/RF metering, channel/group selection, battery indicator, and lock
- Included Earbuds: EB6 balanced-armature earbuds (one pair)
- Rackmount: Half-rack transmitter with rack ears and removable BNC antenna
- Durability: Rugged transmitter and receiver with built-in limiter for hearing protection
Technical Specifications
- System Band: UHF
- Frequency Range: 518–542 MHz (N band)
- Selectable Frequencies: 210
- RF Output: 10 mW
- Operating Range: Up to 300' / 92 m
- Audio Response: 70 Hz – 13.5 kHz (±3 dB)
- Total Harmonic Distortion: < 1 % @ 1 kHz
- Signal-to-Noise Ratio: > 80 dBA
- Dynamic Range: > 88 dB (A-weighted)
- Maximum Deviation: ± 15 kHz
- Transmitter Dimensions: 1.50" × 8.30" × 3.78" (3.81 × 21.08 × 9.60 cm)
- Transmitter Weight: 22.0 oz (1.375 lb / 0.624 kg)
- Receiver Dimensions: 3.73" × 2.54" × 1.00" (9.47 × 6.45 × 2.54 cm)
- Receiver Weight: 3.2 oz (0.200 lb / 0.091 kg) without batteries
- Operating Temperature: 14 °F – 122 °F (–10 °C – 50 °C)
What's Included
- AS-1200T half-rack transmitter with rack ears
- One AS-1200R bodypack receiver
- EB6 balanced-armature earbuds (one pair)
- Removable BNC antenna
- External 12–18 V DC power supply
- Quick Start Guide
