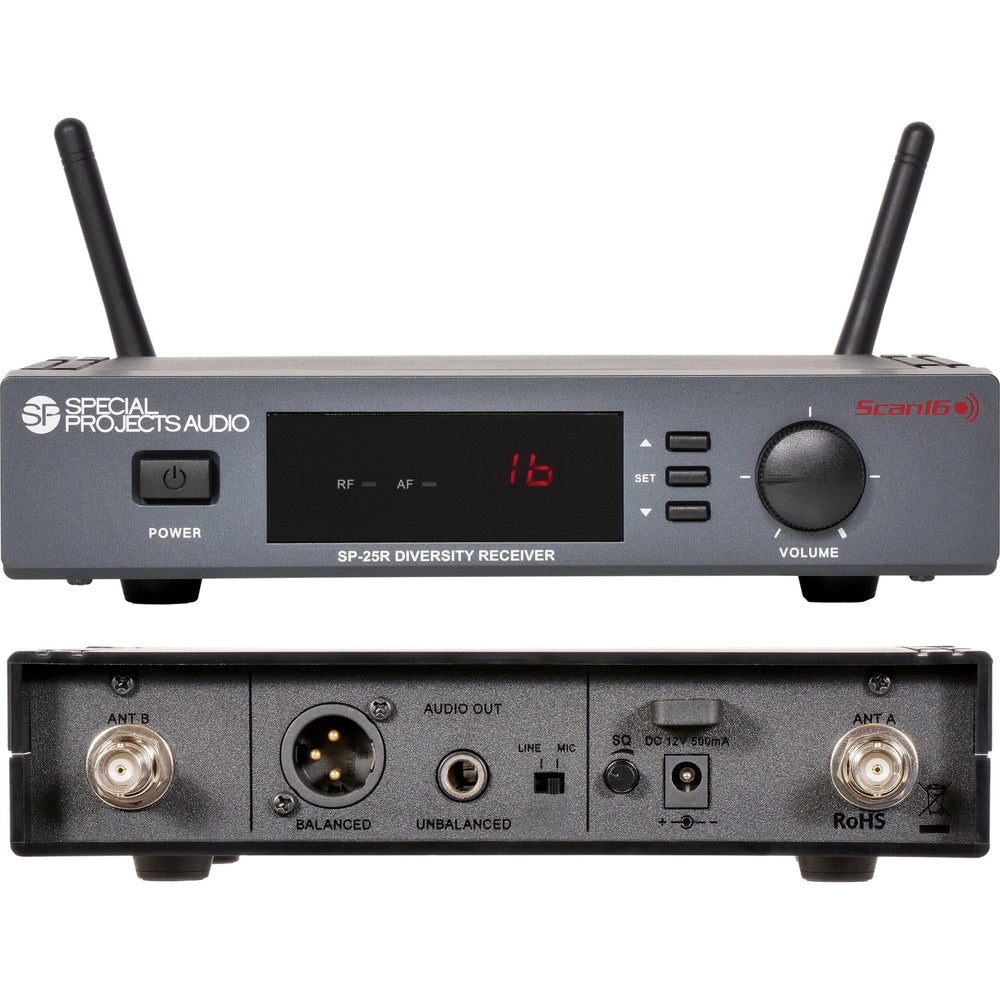

Galaxy Audio SP-25RD1 Scan16 Wireless Microphone Receiver, 540-570 MHz
16 channel true diversity auto scan replacement receiver for EVO Headset Mic or fitness pack system in the 540-570 MHz frequency range. The Scan16 and EVO Mic Auto Scan true wireless system is the easiest system to setup and use. The receiver finds the strongest channel and all you have to do is set the EVO headset or a fitness body pack to the corresponding channel and itās done.
Key Features
- 540-570 MHz Frequency Range
- 16 Channels
- Auto Scan
- True Diversity
Technical Specifications
Band
UHF
Frequency Channels
16
Frequency Range
540-570 MHz
Frequency Stability
-0.005%
Outputs
1 Balanced XLR, 1/4ā Unbalanced
(Mic.= -20dB / Line = 0dB)
Sensitivity
8 dB?V over 80dB S/N ratio
Image and Spurious Rejection
80 dB minimum
Modulation
FM
Signal to Noise
>94dB, at 48KHz deviation and 60dBV antenna input
Frequency Response
80Hz to 12KHz (-3dB)
T.H.D.
<1.0% (at 1KHz)
Power Supply
DC 12V ~ 18V
Current Consumption
110mA at 3V
Dimensions
5.5 x 8 x 1.875 in (LxWxH)
Weight
0.95 lbs
