Gator Cases Expo E Series GEXPOELED86 ELIFT ATA-Style Case for 86" Class LED Screens

Gator Cases Expo E Series GEXPOELED86 ELIFT ATA-Style Case for 86" Class LED Screens

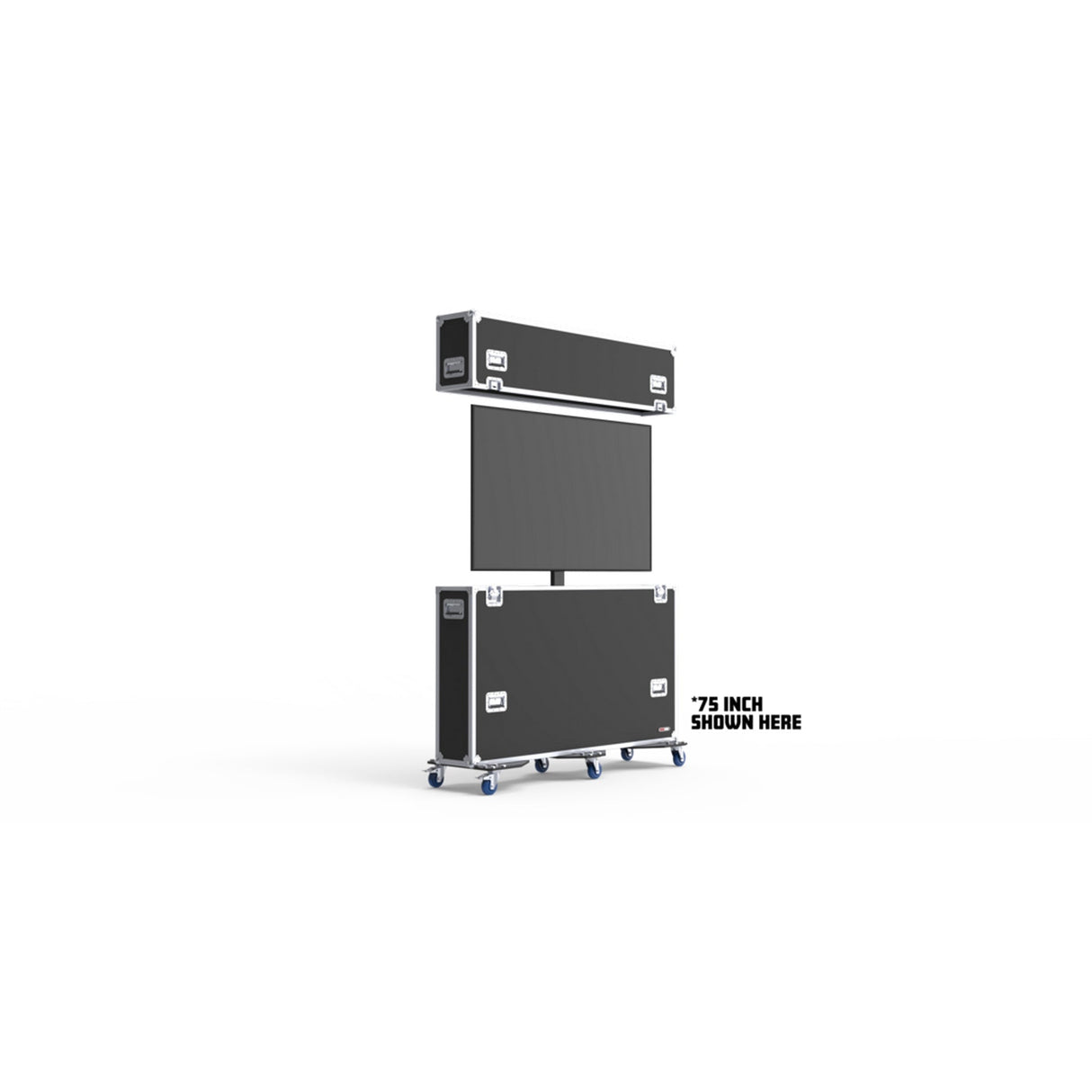

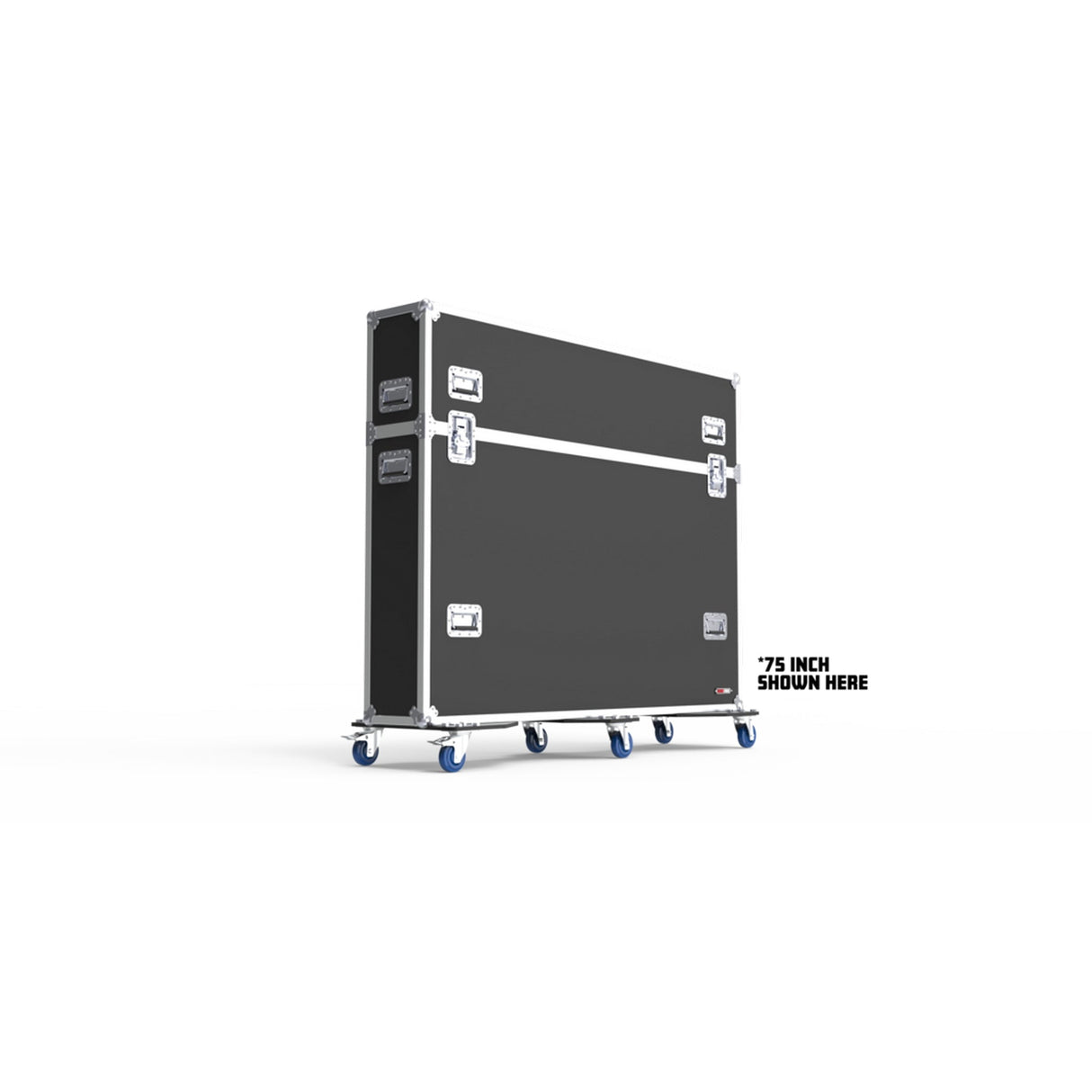

Gator Cases GEXPOELED86 is an ATA-style screen case designed for transporting and presenting LCD and LED screens in the 86 inch class. It enables lift-based height adjustment through an integrated electric mechanism for AV teams supporting mobile display workflows. This makes it ideal for trade shows and touring setups where controlled positioning and protected transport are critical.

The case integrates a universal mounting bracket with push-button electric lift operation to raise and lower the mounted screen during setup. Its construction supports frequent transport with recessed latches, spring-loaded handles, and integrated casters for venue-to-venue movement. EVA rubber nesting and foam inserts are used to support screen protection during transit.

This solution supports crews that require a single enclosure for transport, setup, and positioning of large-format displays. It is used in mobile AV, presentation environments, and touring workflows with repeated load-in and load-out. The design emphasizes secure handling and screen protection across transport and deployment.

Key Features

• Electric Lift Mechanism: Built-in electric lift with push-button controls for raising and lowering the mounted screen.
• Maximum Bracket Height: Adjusts up to 72.14" (183 cm) from the floor to the top of the bracket.
• ATA-Style Construction: Heavy-duty 12mm plywood with a laminated exterior for transport-focused use.
• Integrated Mobility: Built-in casters support rolling transport during setup and teardown.
• Commercial Hardware: Recessed chrome twist latches and plated hardware support repeated use.
• Customizable Cushioning: EVA rubber nesting and included foam inserts help protect delicate screens.
• USA Design and Support: Designed and supported in Tampa, Florida and backed by a Limited Lifetime Warranty.

Technical Specifications

Series
Expo E Series

Screen Class Compatibility
86" class LCD and LED screens

Lift Mechanism
Electric lift with push-button controls

Maximum Height
72.14" (183 cm) from floor to top of bracket

Interior Dimensions
Length: 76.1"
Width: 4.1"
Height: 43.7"

Exterior Dimensions
Length: 80.5" (204.5 cm)
Width: 20" (50.8 cm)
Height: 65.81" (167.2 cm)

Construction
12mm plywood with laminated exterior

Hardware
Commercial-grade plated hardware

Latches
Recessed chrome twist latches

Handles
Spring-loaded rubber grip handles

Casters
Integrated casters

Cushioning
EVA rubber nesting and foam inserts

Warranty
Limited Lifetime Warranty

Support Location
Tampa, Florida

Weight
253 lbs
