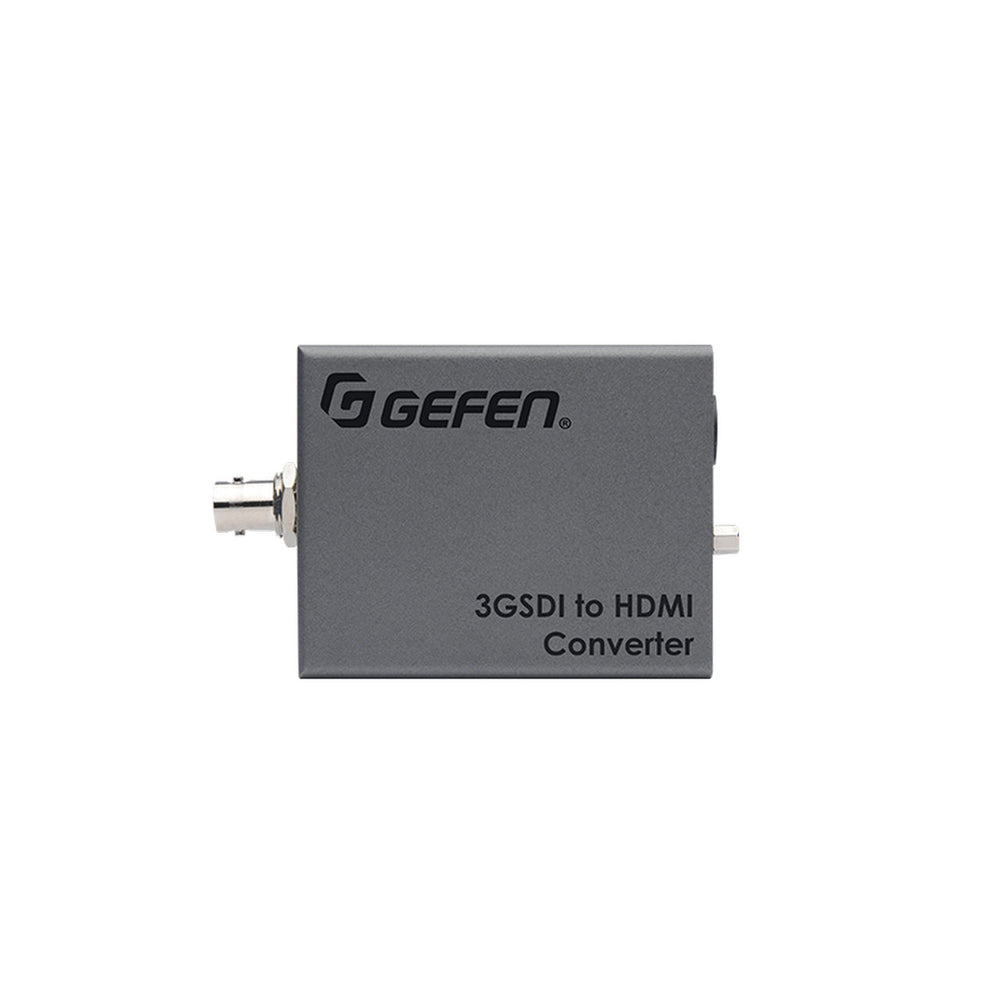

Gefen EXT-3G-HD-C 3G-SDI to HDMI Converter
The Gefen EXT-3G-HD-C converts audio and video from SDI to HDMI format, at resolutions up to 1080p Full HD, 3G-SDI, single link HD-SDI, and audio formats up to 8 channels of LPCM are supported. This product is fully compatible with the Gefen Syner-G software suite. The Gefen Syner-G is a powerful set of software tools specifically designed to help discover, configure/customize, manage, monitor, and upgrade Gefen products. The Gefen EXT-3G-HD-C's compact enclosure, while light enough to be held in place using double sided Velcro tape, features an ISO standard 1/4-20 attachment provision as well as a detachable surface-mounting bracket. This, along with a flexible power input circuitry capable of accepting a wide range of DC voltages and a locking power supply connector, make the EXT-3G-HD-C ideal for cutting edge mobile A/V applications as well as high performance fixed installations.
Key Features
- Converts SDI to HDMI
- Input resolutions up to 1080p60
- Output resolutions up to 1080p Full HD
- HDMI (YCbCr 4:4:4) or DVI (RGB 4:4:4) output modes
- Supports 3G-SDI Levels A and B, Single-Link HD-SDI, and SD-SDI
- Supports up to 10 bit color on input and output
- Up to LPCM 7.1 audio support
- Field configurable via DIP switch settings
- Mini USB port for use with Gefen Syner-G for in-field firmware updates
- Wide power supply operating range (6V to 24V DC)
- Locking power supply connector
- 1/4-20 industry-standard camera gear attachment thread on bottom
- Surface-mountable using the included detachable bracket
Technical Specifications
Maximum Pixel Clock: 150 MHz
Maximum TMDS Clock: 225 MHz
Video Input Connector: (1) SDI BNC-type, female
Video Output Connector: (1) HDMI Type A 19-pin, female, locking
USB Connector: (1) Mini-B
Configuration Switches: (5) DIP-type
HDMI Indicator: (1) LED, green
Power Indicator: (1) LED, blue
Power Supply Connector: (1) 3-pin, locking
Power Supply: 12V DC nominal (6V to 24V DC operating range)
Power Consumption: 2W maximum
Operating Temperature: +32 to +122 degrees F (0 to +50 degrees C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185 degrees F (-20 to +85 degrees C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours
Dimensions (excluding connectors, W x H x D): 2.9" x 1.2" x 2.3" (74mm x 30mm x 59mm)
Net Unit Weight: 0.3 lbs. (0.15kg)
