Gefen EXT-ADA-LAN-TX Digital and Analog Audio over IP Sender Package

Gefen EXT-ADA-LAN-TX Digital and Analog Audio over IP Sender Package

Gefen’s AV over IP solutions continue our tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. The Digital and Analog Audio over IP Sender (EXT-ADA-LAN-TX) and Receiver (EXT-ADA-LAN-RX) are new additions to Gefen’s family of AV over IP products, offering a much-needed audio-only option for background music, public announcements, and other applications where stand-alone audio needs to be distributed through the AV system. Audio input and output options include L/R Analog, Coaxial Digital, and Optical Digital. When using the digital inputs and outputs, 2-channel PCM and up to 5.1 channels of Bitstream can be distributed through the system. In addition to audio, RS-232 and 2-way IR can also be independently* routed and distributed for source and amplifier control. The entire Gen 2.0 product line, including the audio models, feature backward-compatibility with our first-generation products.

Key Features

• Extends digital and analog audio, RSZ-232, and IR, using a Gigabit Local Area Network
• Independent audio, RS-232, and IR routing**
• Backward-compatible with first generation Gefen AV over IP products
• Analog L/R, Coaxial Digital, and Optical Digital Inputs and Outputs
• MFU (Mass-Firmware-Update), quick and automated configuration, and enhanced control capabilities and system security when used with the Gefen EXT-CU-LAN Matrix Controller
• Enhanced API for added functionality with third-party control systems
• Built-in web interface, Telnet, and UDP
• Supports 39,900 Senders and a combination of over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch
• 802.3af standard Power-over-Ethernet allows the new Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, without the need for external power supplies
• Two-port Gigabit Ethernet switch built into the Receiver unit
• Field-updatable firmware via EXT-CU-LAN controller or the built-in web server interface
• Locking power supply connectors
• Low-profile, half-rack width Sender and Receiver enclosures are rack-mountable using EXT-RACK-1U-GRY
• Sender and Receiver can also be surface-mounted using the included L-brackets
• Low profile Receiver enclosure features an IR Extender port and can be hidden away behind the display

Technical Specifications

Shipping Info
Length
13.1 (Inches)
Width
8.1 (Inches)
Height
3.6 (Inches)
Weight
2.9 (Lbs)
UPC
888814999785
Supported Audio Formats
Analog: L/R Stereo
Digital: 2-Channel PCM and up to 5.1 channels of Bitstream
Analog Line Input (Sender)
(1) 3.5mm mini-stereo jack
Analog Line Output (Receiver)
(1) 3.5mm mini-stereo jack
Coaxial Digital Audio Input (Sender)
(1) RCA, female
Coaxial Digital Audio Output (Receiver)
(1) RCA, female
RS-232 port (Sender/Receiver)
(1) 3.5mm stereo jack, female, DB-9 adaptor included
IR In/Ext (Sender/Receiver)
(1) 3.5mm mini-stereo jack
IR Out (Sender/Receiver)
(1) 3.5mm mini-mono jack
IR Extender type
EXT-RMT-EXTIRN
Ethernet port (Sender)
(1) RJ-45, shielded, PoE
Ethernet ports (Receiver)
(2) RJ-45, shielded, one with PoE
Channel Up button (Receiver)
(1) tact-type
Channel Down button (Receiver)
(1) tact-type

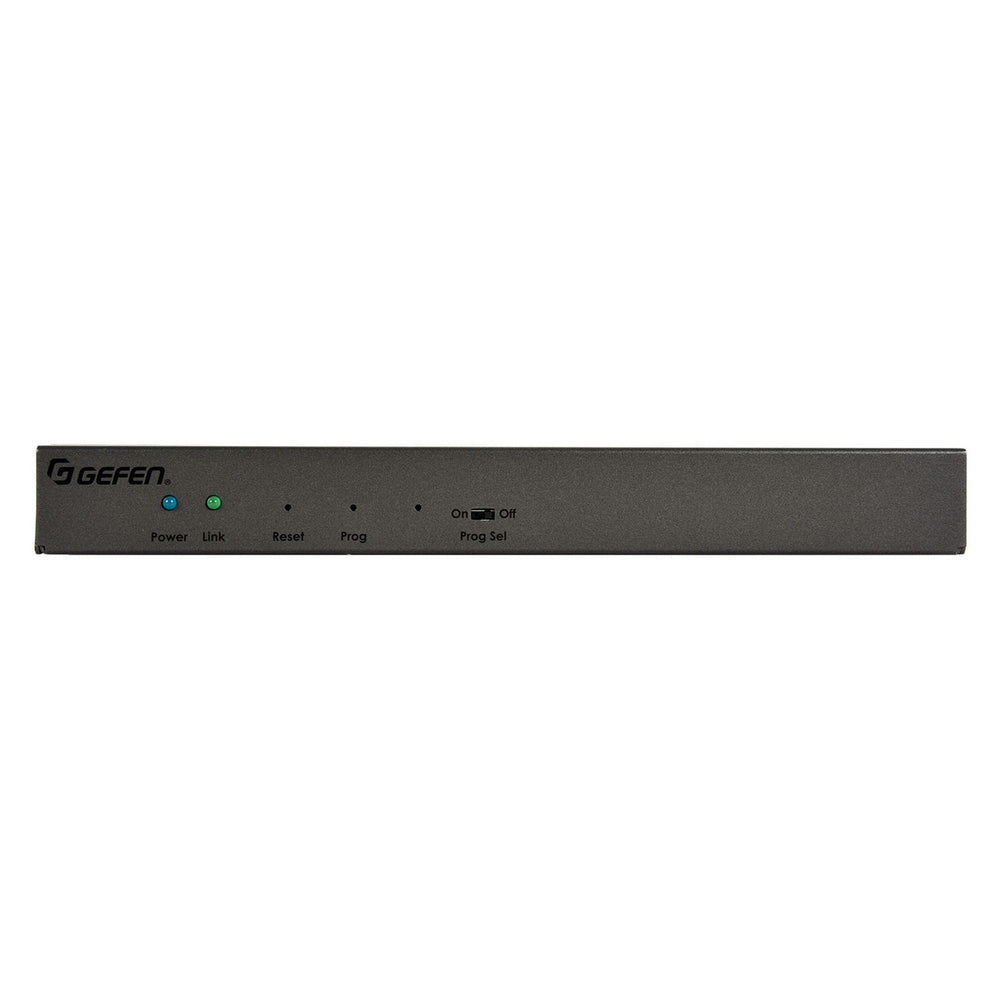

Reset button (Sender/Receiver)
(1) tact-type, recessed
Program button (Sender/Receiver)
(1) tact-type, recessed
Program Select switch (Sender/Receiver)
(1) slide-type, recessed
Link Indicator (Sender/Receiver)
(1) LED, green
Power Indicator (Sender/Receiver)
(1) LED, blue
Power Supply jack (Sender/Receiver)
5V DC, 2.5mm pin and 5.5mm barrel, locking
Power Requirement (Sender/Receiver)
5V DC, or PoE (802.3af standard)
MTBF
Sender: 50000 hours
Receiver: 50000 hours
Dimensions (W x H x D, without connectors or feet)
Sender: 8.4" x 1.0" x 4.9" (214mm x 25mm x 123mm)
Receiver: 8.4" x 1.0" x 4.9" (214mm x 25mm x 123mm)
