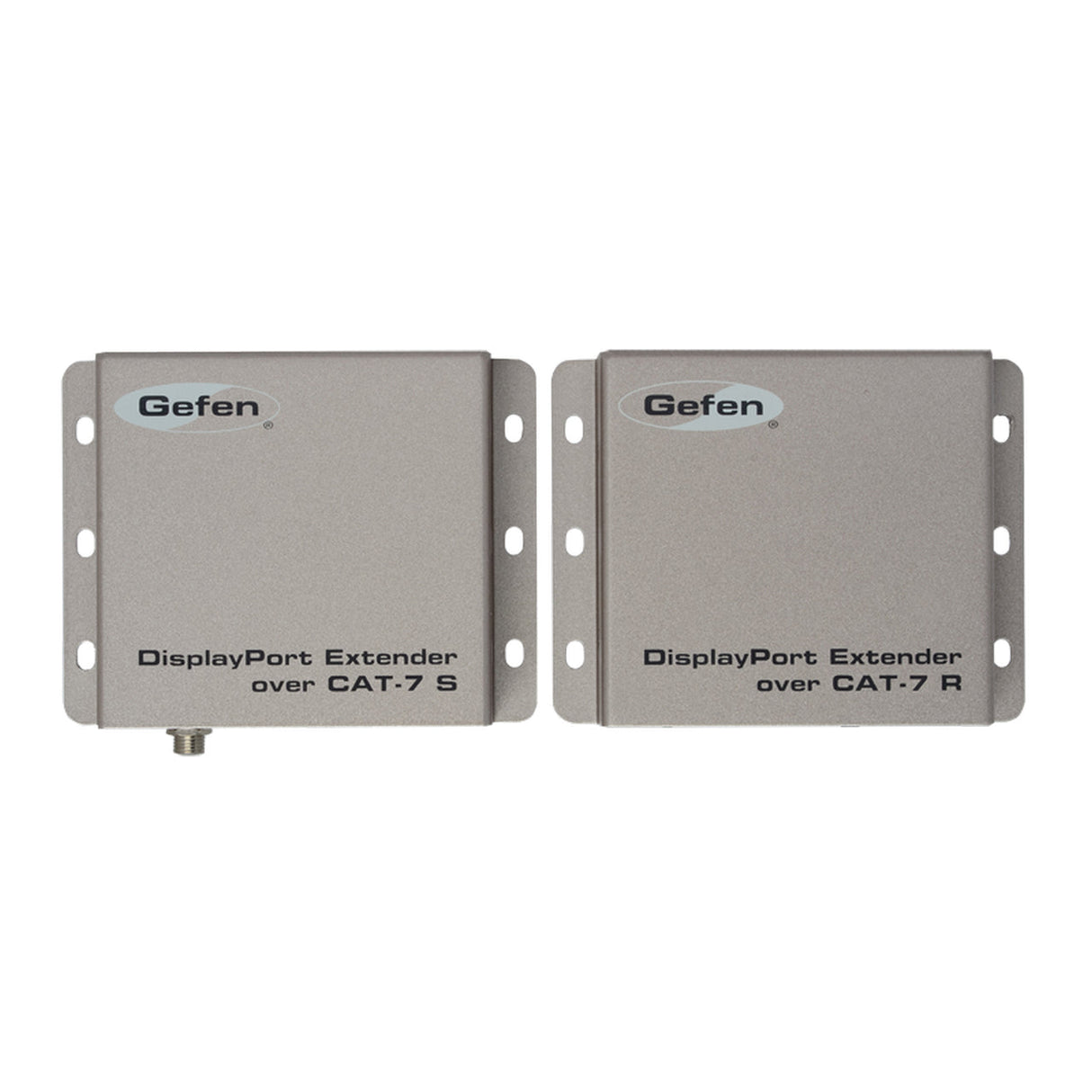

Gefen EXT-DP-2CAT7 Display Port Two Cat7 Cable Extender

Gefen EXT-DP-2CAT7 Display Port Two Cat7 Cable Extender

The DisplayPort Extender over CAT-7 allows the installation of a Hi-Def display up to 100 feet (30 meters) away from a DisplayPort source using two CAT-7 cables. Resolutions up to 1920 x 1200 (WUXGA) or 1080p Full HD when using a single CAT-7 cable, and up to 2560 x 1600 (WQXGA) when using two cables, can be supported. HDCP is also supported. The Receiver unit is powered by the first CAT-7 cable that extends the DisplayPort signal from the Sender unit, eliminating the need for an external power supply on the Receiver unit.

Key Features

• Extends DisplayPort video up to 100 feet (30 meters)
• Supports resolutions up to 2560 x 1600 over two CAT-7 cables, and up to 1920 x 1200 or 1080p Full HD at 120Hz at over one CAT-7 cable
• HDCP compliant
• Supports DisplayPort 1.1a
• 16-position EQ rotary switch to compensate for cable skew
• HPD Auto-Calibration button
• Pre-emphasis switch
• Drive level switch
• Boost level switches
• Power On and Link indicators
• Locking power supply connectors
• Surface-mountable

Technical Specifications

Video Data Rate: up to 2.7 Gbps
Video Output Voltage: 1.2V p-p
Video Input Connector (Sender): (1) DisplayPort, 20-pin, female
Video Output Connector (Receiver): (1) DisplayPort, 20-pin, female
Link Connectors (Sender/Receiver): (2) RJ-45, shielded
EQ Switch (Receiver): (1) 16-position rotary type
HPD Auto Calibration button (Receiver): (1) tact-type
Pre-emphasis switch (Sender): (1) 3-position DIP switch
Drive level switch (Sender): (1) 3-position DIP switch
Boost Level Switches (Sender): (2) 3-position DIP switch
Power On indicator (Sender): (1) LED, blue
Link indicator (Receiver): (1) LED, green: good link, red: no link
Power Supply connector (Sender): (1) 5V DC, locking type
Operating Temperature: +32 to +104 degrees F (0 to +40 degrees C)
Dimensions (W x H x D) (Sender/Receiver): 4.3" x 1" x 3.3" (110mm x 25mm x 83mm)
Shipping Weight: 3 lbs (1.4 kg)
