The DisplayPort fiber optic pigtail module extender with DPCP support extends a DisplayPort up to 3300 feet (1000 meters) using a single-strand 50/125um multimode (OM2/OM3) SC-terminated fiber optic cable with resolutions up to 2560 x 1600 (WQXGA). Optical signal transmission provides galvanic isolation and immunity to electromagnetic interference compared to similar copper based extension modules.

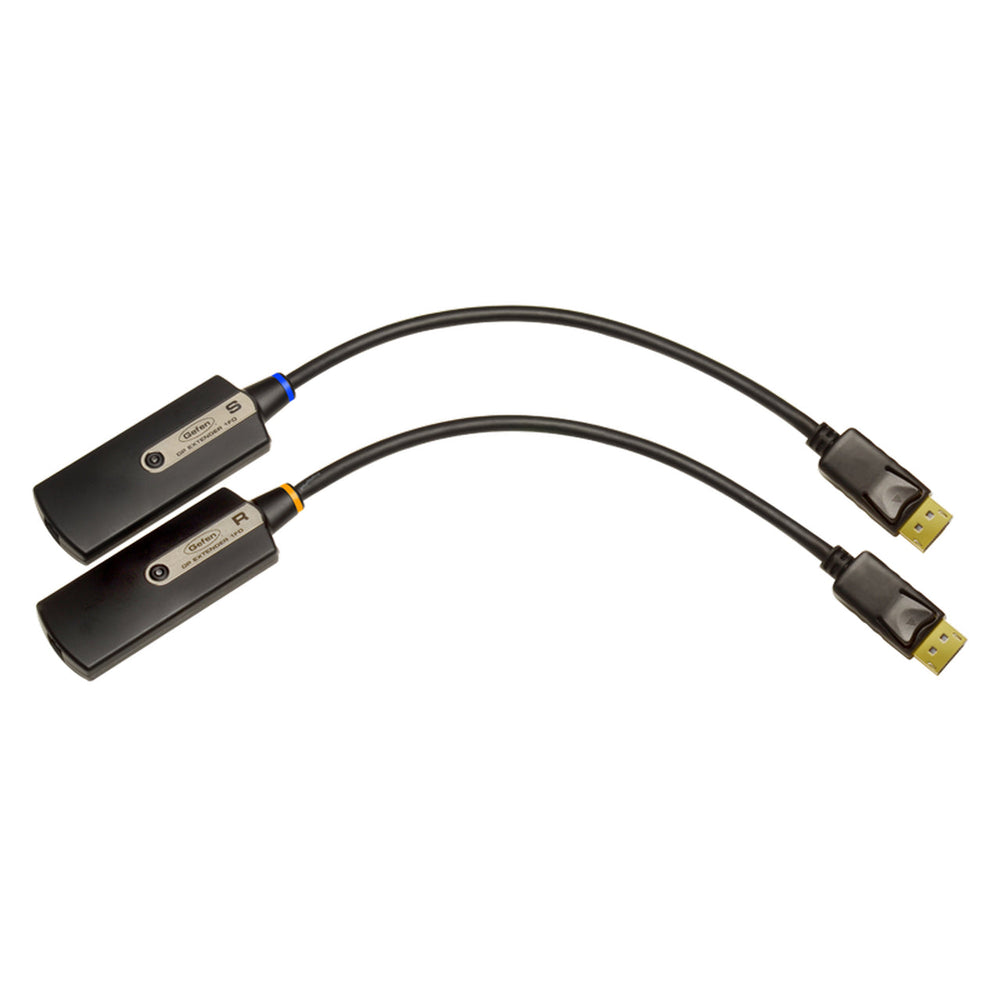

The pigtail design of the Sender and Receiver modules relieves stress and clutter on the source and display connector panels. Their compact design makes them ideal for fitting neatly behind equipment for a clean installation, making it a great way to easily extend DisplayPort.

Key Features

• Extends DisplayPort up to 3300 feet (1000 meters) over a single-strand of 50/125um multimode (OM2/OM3) SC-terminated fiber optic cable
• Supports 1080p Full HD at 120Hz and dual-link resolutions up to 2560 x 1600 (WQXGA)
• Compliant with DisplayPort 1.1 standard
• Fiber optic transmission eliminates electromagnetic interference (EMI)
• Pigtail design relieves stress and clutter on the source and display connector panels
• HDCP and DPCP compliant
• DDC bi-directional support
• Compact Sender and Receiver modules provide a clean, easy installation
• FCC and CE compliant for EMI/RFI emission

Technical Specifications

Video bandwidth: 3.5Gbps/Channel
Video Input Connector (Sender): (1) DP-20-pin, male
Video Output Connector (Receiver): (1) DP-20-pin, male
Link Connector (Sender/Receiver): (1) Type SC fiber (50 /125um )
Power Supply (Receiver): 5V DC
Power Supply (Sender): 5V DC (not needed for most applications)
Power Consumption (Receiver): 1.5W (max.)
Operating Temperature: 0 degrees to + 50 degrees C
Storage Temperature: -20 degrees to + 70 degrees C
Relative Humidity: 10 to + 80%
Dimensions (W x H x D): 1.50" x 0.47" x 3.51" (38.10mm x 11.93mm x 89.15mm)
Shipping Weight: 1 lb. (0.45 kg)
