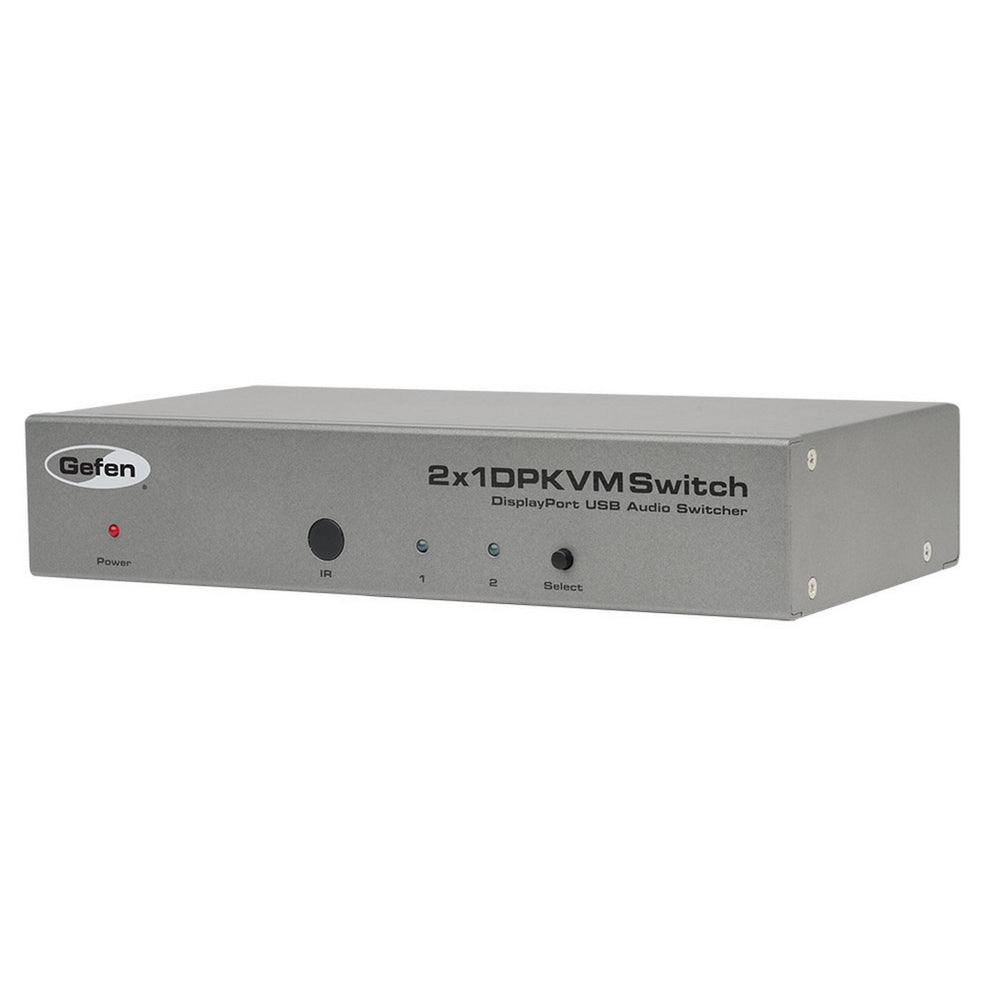

Gefen EXT-DPKVM-241 2 x 1 DisplayPort KVM Switcher
Switch between two computers effortlessly using the Gefen EXT-DPKVM-241 2x1 DisplayPort KVM Switcher, utilizing one display and one USB 2.0 port for a keyboard and mouse. Switch audio, video, and control signals for each computer. Access two computers from one workstation without having to use a network. Switch through the front panel "select" button, using the supplied IR remote control or via the RS232 port. The Gefen DisplayPort KVM Switcher is compatible with both Macintosh and PC keyboards, mice, and displays.
Key Features
- Switches one High-Resolution Display between two DisplayPort-equipped computers with audio/video and USB keyboards
- Supports resolutions up to 2560 x 1600
- Supports RGB and YCbCr color spaces
- DisplayPort utilizes a compact connector for easier installations
- 1U tall, half-rack width enclosures are rack-mountable using EXT-RACK-1U
Technical Specifications
Shipping Info
Length
16.93 (Inches)
Width
6.3 (Inches)
Height
5.31 (Inches)
Weight
3.6 (Lbs)
UPC
845344048413
Maximum Pixel Clock
360 MHz
Input Connector
(2) DisplayPort (from computers)
Output Connector
(1) DisplayPort (to display)
Input Connector
(2) USB 2.0 Type "B" (from computers)
Output Connector
(2) USB 2.0 Type "A" (to keyboard/mouse)
Input Connector
(2) 3.5mm analog L/R audio (from computers)
Output Connector
(1) 3.5mm analog L/R audio (to speakers or amplifier)
Dimensions (W x H x D)
8.41" x 1.57" x 4.23" (213mm x 39mm x 107mm)
Shipping Weight
6 lbs (2.7 kg)
