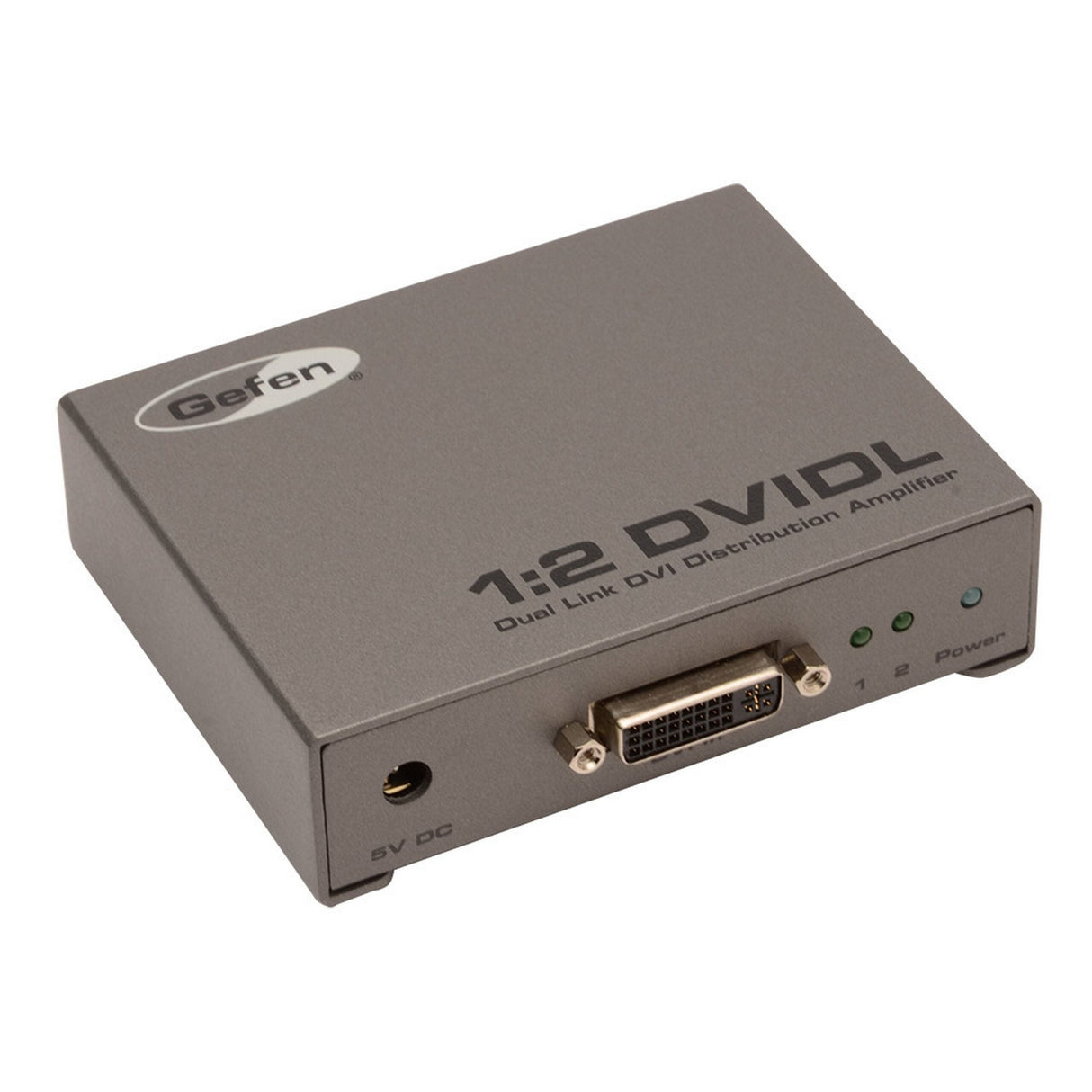

Gefen EXT-DVI-142DLN 1:2 Dual Link DVI Distribution Amplifier
The Gefen EXT-DVI-142DLN Dual-link 1:2 DVI DL Distribution Amplifier splits video using a dual link DVI source such as a computer to two DVI dual link outputs such as monitors, without losing picture quality or the high resolution. Multiple1:2 DVI DL units can be cascaded from one to the next to create a flexible Dual Link DVI distribution system that can connect to multiple displays.
Key Features
- Split a Dual Link DVI signal to two DVI Dual Link outputs
- Allows simultaneous display of source on two screens
- Supports Single Link DVI resolutions up to 1920 x 1200, and dual-link up to 3840 x 2400
- Auto EQ compensates for any imperfections in the image
- Power On indicator
- DVI Link indicators
- Supports DDWG standard for DVI-compliant monitors
- HDCP pass-through on output
Technical Specifications
Shipping Info
Length
12.1 (Inches)
Width
6.1 (Inches)
Height
4.3 (Inches)
Weight
2.05 (Lbs)
UPC
845344085678
Maximum Pixel Clock
2 x 165 MHz
Video Input Connector
(1) DVI-D, 29-pin, female
Video Output Connectors
(2) DVI-D, 29-pin, female
Power On indicator
(1) LED, blue
Link indicators
(2) LED, green
Power Consumption
5 W (max.)
Power Supply
5V DC
Dimensions (W x H x D)
4" x 1.25" x 3.25" (102mm x 32mm x 83mm)
Shipping Weight
2 lbs (0.9 kg)
