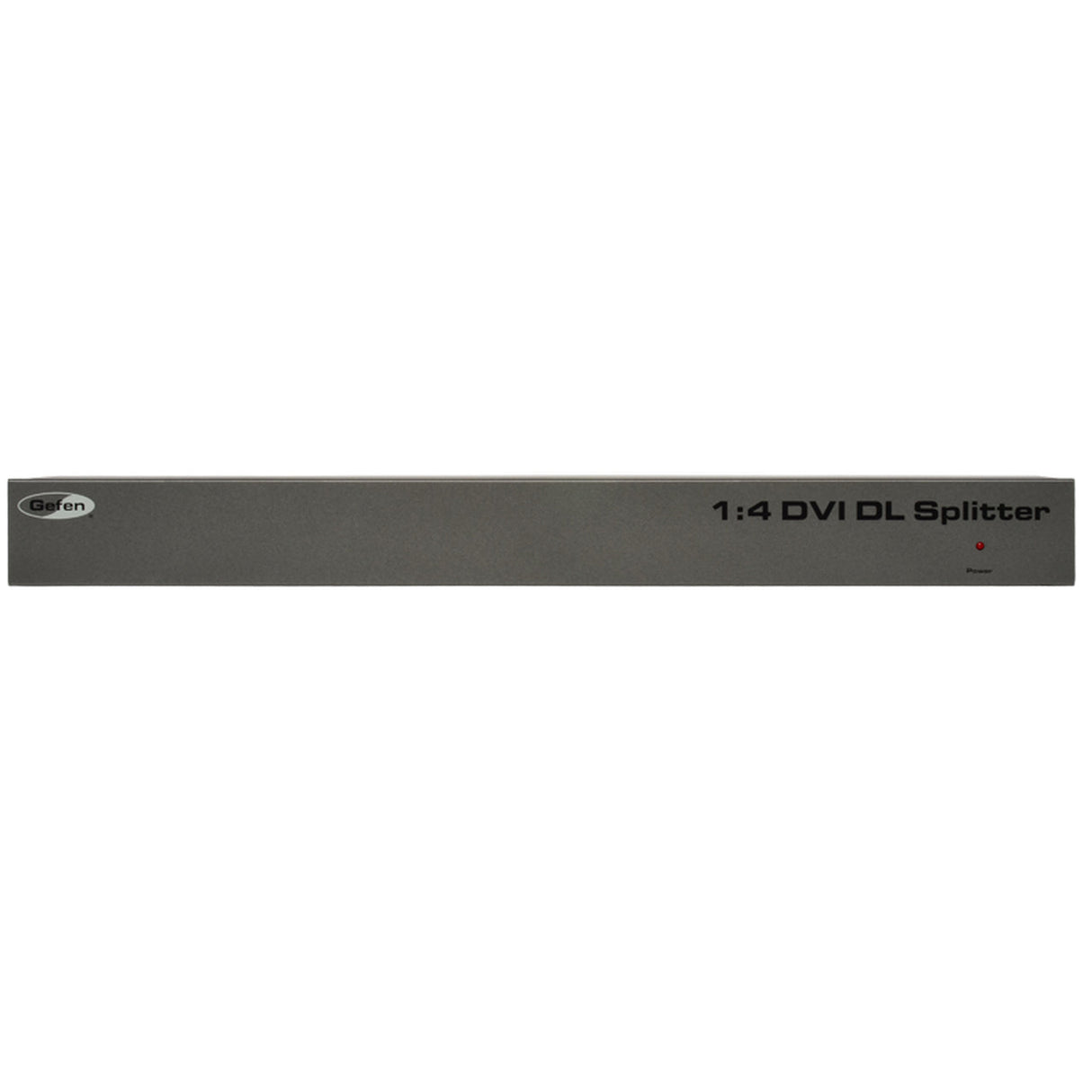

Gefen EXT-DVI-144DL 1x4 DVI Dual Link Splitter
The Gefen EXT-DVI-144DL 1:4 DVI Dual Link Splitter distributes a dual link DVI source to four DVI dual link outputs without losing quality or resolution. It works with any dual link DVI computer supporting resolutions up to 2560 x 1600 (WQXGA) and 3840 x 2160 (QFHD). The DVI Dual Link Splitter supports internal, downstream, and custom EDIDs. When not in use, it can be put in stand-by mode via RS-232. This reduces power consumption to less than 0.5W. EDID Management, output masking, and firmware updates can also be done via RS-232. This product can be placed on a shelf or other horizontal surface, or be mounted in a standard 19-inch wide rack, using the included rack ears
Key Features
- Distributes a dual link source to four DVI dual link outputs
- Supports resolutions up to 1080p Full HD (60 Hz), single-link resolutions up to 1920 x 1200 (WUXGA), and dual-link resolutions up to
- 2560 x 1600 (WQXGA) at 60 Hz and 3840 x 2160 (QFHD) at 30 Hz
- EDID management for rapid integration of source and displays
- Output masking
- Stand-by mode
- Field updatable firmware via RS-232
- Locking power supply
- Rack-mountable with included rack ears
Technical Specifications
Maximum Pixel Clock: 2 x 165 MHz
Video Input Connector: (1) DVI-D 29-pin, female
Video Output Connectors: (4) DVI-D 29-pin, female
RS-232 Port: (1) DB-9, female
Power Consumption:
On: 20 W maximum
Stand-by: 0.5 W maximum
Power Supply: 5V DC, Locking
Operating Temperature: +32 to +104 degrees F (0 to 40 degrees C)
Rack mounting requirements: Standard 19" rack, 1U high
Dimensions (W x H x D): 17.1" x 1.75" x 4.2" (435mm x 45mm x 107mm)
Shipping Weight: 5.2 lbs (2.5 kg)
