Description

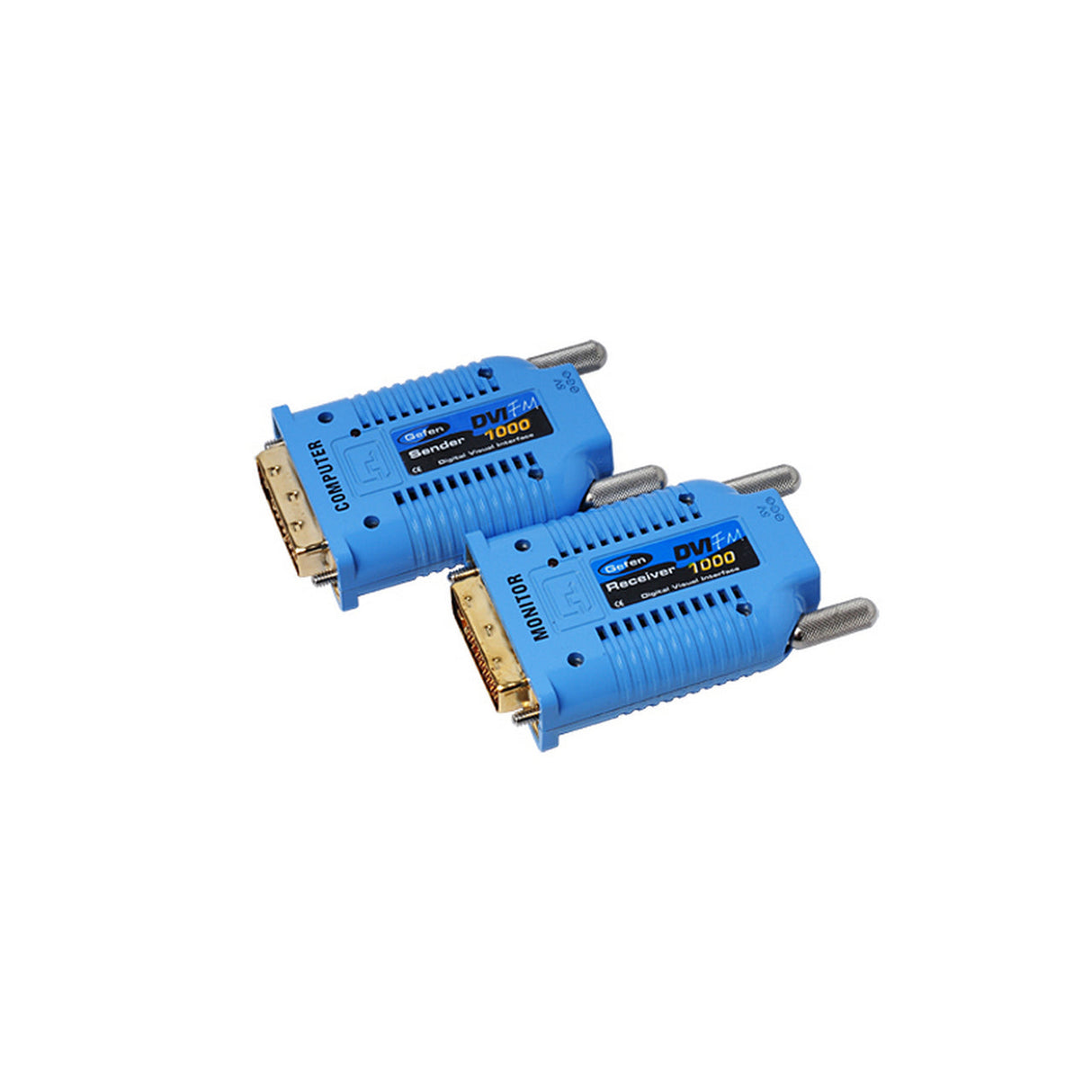

Gefen EXT-DVI-FM1000 DVI FM 1000 Extenders
The DVI FM1000 Extender extends your DVI display up to 5600 feet (1.7 km.) away from your video source, with only two tiny transceivers required, using a 100% optical SC fiber solution with a single strand of fiber optic cable.
Automatic EDID Programming enables quick and correct synchronization of the video source to the display without any manual configuration needed. It's a great way to extend DVI video easily and unobtrusively.
Optical signal transmission provides immunity from electromagnetic interference (EMI).
Key Features
- Uses single-strand multi-mode SC-terminated fiber optic cable
- EDID Programming feature enables quick and correct sync of source to display
- Fiber cable provides immunity from electromagnetic interference (EMI)
- Eliminates computer noise at your workstation
- Extends DVI up to 5600 feet (1.7 km) over a single-strand of OM3e/OM4 (50/125um) multimode fiber optic cable
- Extends DVI up to 4950 feet (1.5 km) over a single-strand of OM3 (50/125um) multimode fiber optic cable
- Extends DVI up to 3300 feet (1 km) over a single-strand of OM2 (50/125um) multimode fiber optic cable
- Extends DVI up to 1640 feet (500 meters) over a single-strand of OM1 (62.5/125um) multimode fiber optic cable
- Supports resolutions up to 1920 x 1200
- Supports DDWG standard for DVI-compliant monitors
Technical Specifications
Maximum Pixel Clock: 165MHz
Input Video Signal: 1.2V p-p
Input DDC Signal: 5V p-p (TTL)
Video Input Connector (Sender): (1) DVI-D 19-pin, female (digital only)
Video Output Connector (Receiver): (1) DVI-D 19-pin, female (digital only)
Link Connector (Sender / Receiver): (1) Type SC Fiber connector
Fiber Cable: CAB-1SC-XXX (62.5 multi-mode)
Operating Temperature Range: 0 to +50 deg C
Storage Temperature Range: -30 to +70 deg C
Storage Relative Humidity: 10% to 85% RH
Power Supply (Receiver): 5V DC
Power Consumption: 2.5W (max.)
Dimensions (Sender / Receiver): 2.6" D x 1.6" W x 0.6" H
Shipping Weight: 2 lbs.
