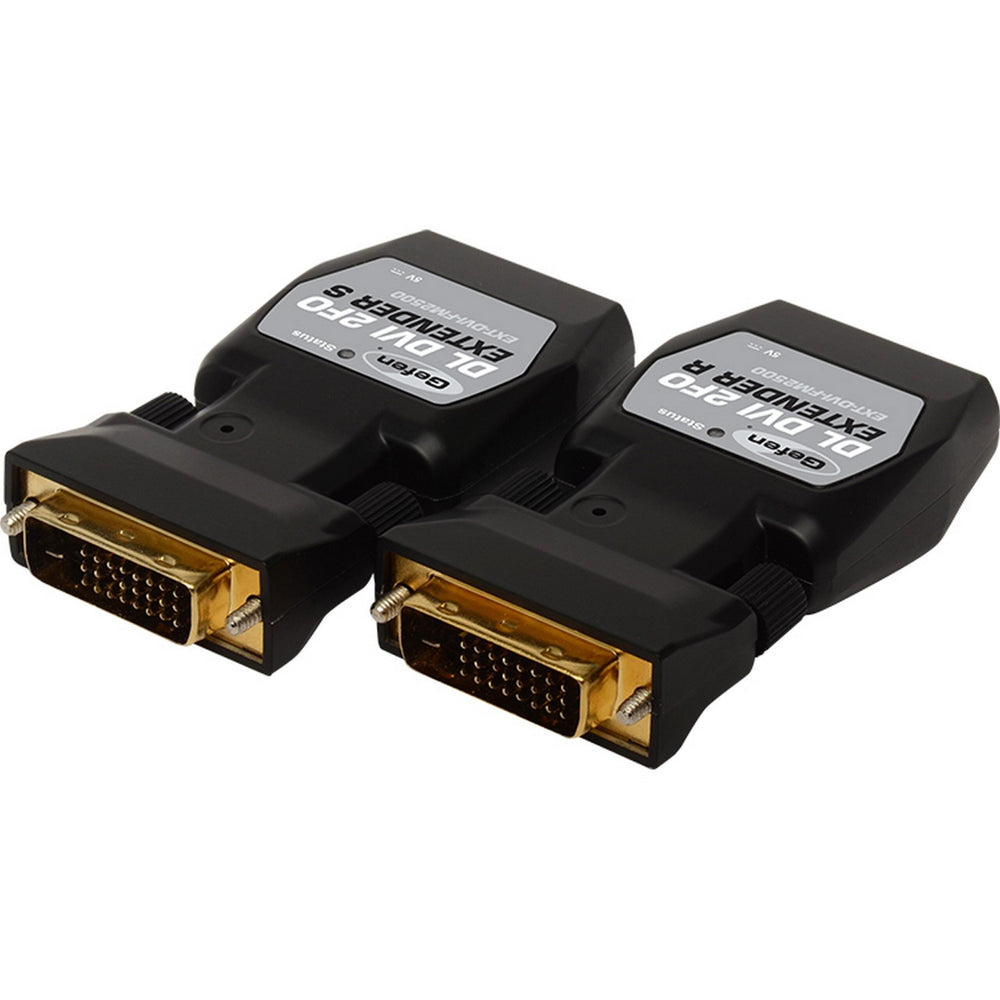

Gefen EXT-DVI-FM2500 Dual Link DVI Dongle Modules
The Gefen FM2500 Modular Dual-link DVI Fiber Optic Extender allows DVI signal to be extended up to 3300 feet (1 km) away. This extender is the ideal for installations where a DVI source and display are located apart from each other in an interference-prone operating environment. Two strands of 50/125um laser-optimized multimode (OM3) Dual-LC-terminated fiber optic cable provides maximum extension and provides excellent protection from electromagnetic interference (EMI), and preserving signal integrity. The automatic EDID programming feature enables quick and correct synchronization of the video source to the display without any manual configuration needed. This allows rapid recovery of picture upon display power up or when used in conjunction with Switchers and Matrixes.
Key Features
- Extends dual-link DVI up to 3300 feet (1 kilometer) over two strands of OM3 (laser-optimized 50/125m) multimode fiber optic cable
- Extends dual-link DVI up to 1650 feet (500 meters) over two strands of OM2 (conventional 50/125m) multimode fiber optic cable
- Extends dual-link DVI up to 1000 feet (300 meters) over two strands of OM1 (62.5/125m) multimode fiber optic cable
- Supports 1080p Full HD at 120Hz and dual-link resolutions up to 3840 x 2400
- Virtual EDID allows EDID copying from the display to the source
- Fiber optic transmission eliminates electromagnetic interference (EMI)
- Sturdy metal die-cast enclosures are perfect for professional and industrial applications
- Compact Sender and Receiver modules provide a clean, easy installation
- Use Gefen CAB-2LC-xxx OM1 Fiber Optic Link Cables for distances from 30 - 330 feet (9 - 100 meters)
- FCC and CE compliant for EMI/RFI emission
Technical Specifications
Shipping Info
Length
9 (Inches)
Width
5 (Inches)
Height
2.25 (Inches)
Weight
1.1 (Lbs)
UPC
845344036076
Maximum Pixel Clock
2 x 165 MHz
Video Input Connector (Sender)
(1) DVI-D 24-pin, male
Video Output Connector (Receiver)
(1) DVI-D 24-pin, male
Link Connector (Sender / Receiver)
(2) Type LC
Power Supply (Sender)
5V DC (not needed for most applications)
Power Supply:(Receiver)
5V DC
Power Consumption (Receiver)
1.5W (max.)
Relative Humidity
5% to 85%
Dimensions (W x H x D)
1.54" x 0.59" x 2.83" (39.11mm x 14.98mm x 71.88mm)
Shipping Weight
2 lbs (0.91 kg)
