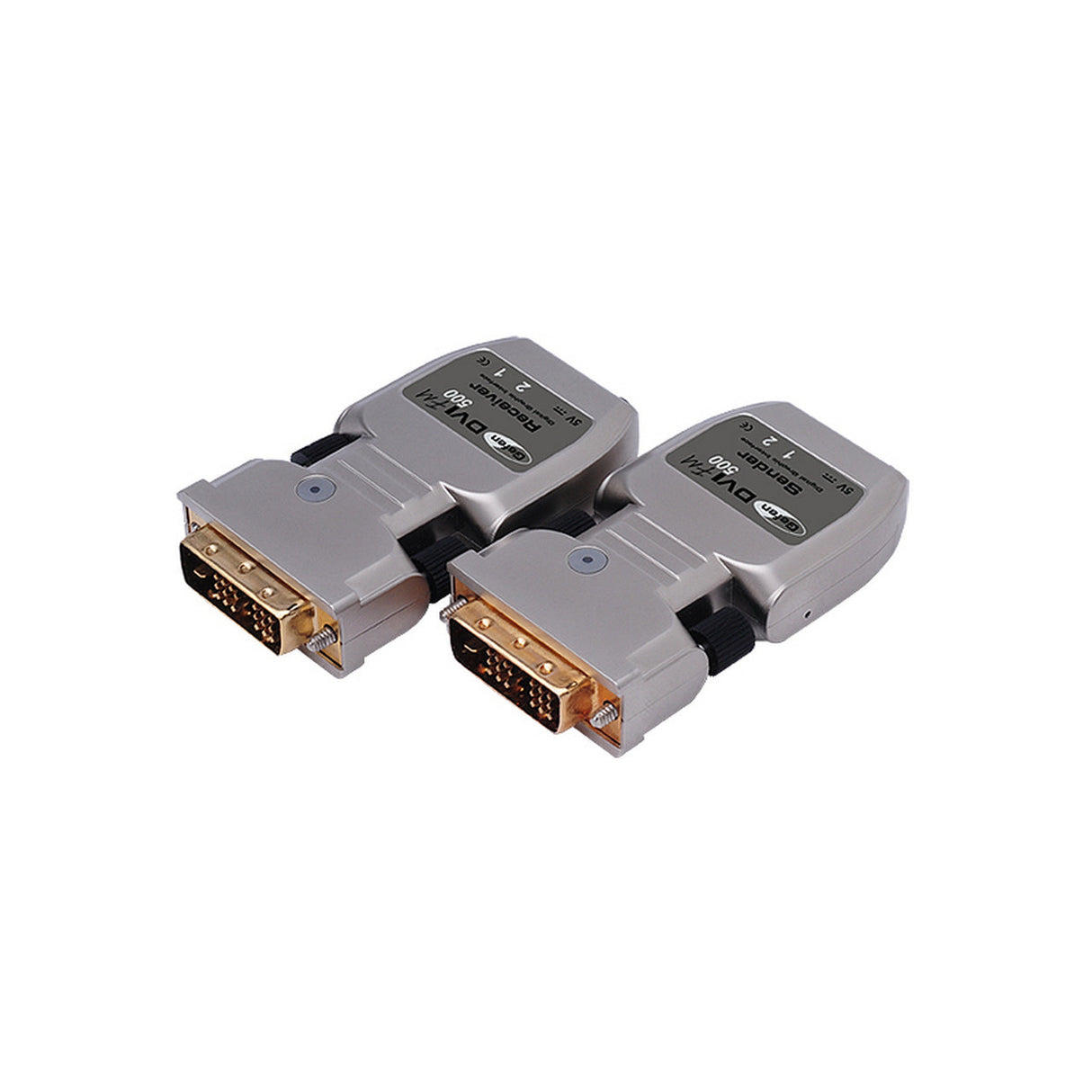

Gefen EXT-DVI-FM500 DVI FM 500 Extender
The DVI-FM500 Extender lets you extend your DVI source up to 5,000 feet away using a 100% fiber optic extension solution. Attractive and compact DVI-to-fiber modules connect to each other via just two LC fiber optic cable strands. Extender units fit neatly behind equipment for a clean installation.
The on the fly EDID programming feature enables quick and correct synchronization of the video resolution to the display without any manual configuration. It's a great way to extend DVI easily and cleanly.
Key Features
- Fully supports DVI 1.0 and DDC2B via virtual DDC
- Supports both singlemode and multimode fiber optic cable types
- Fiber cable provides immunity from electromagnetic interference (EMI)
- Extends DVI up to 5,000 feet (1500 meters) using single-mode(8/125 um or 9/125 um) fiber cable
- Extends DVI up to 1,500 feet (450 meters) using multi-mode (50 um or 62.5 um) fiber cable
- Supports resolutions up to 1920 x 1200
- Supports DDWG standard for DVI-compliant monitors
- EDID Programming feature enables quick and correct sync of source to display
Technical Specifications
Maximum Pixel Clock: 165MHz
Input Video Signal: 1.2V p-p
Input DDC Signal: 5V p-p (TTL)
Supported fiber types: single-mode 89um (5000 feet) or multi-mode 50/62.5um (1500 feet)
Default EDID: UXGA (1600 x 1200)
Video Input Connector (Sender): (1) DVI-D (19 pin), male (digital only)
Video Output Connector (Receiver): (1) DVI-D (19 pin), male (digital only)
Link Connectors (Sender / Receiver): (2) Type LC (1 Duplex) fiber connectors
LED Indicators (Sender / Receiver): (1) EDID Status
Program Button (Sender): EDID Program (recessed)
Fiber Cable: CAB-2LC-XXX (62.5/125um multi-mode)
Power Supply (Receiver): 5V DC (Second power supply included for use if source does not provide 5V power for Sender over DVI connector)
Power Consumption: 2.5W (max.)
Operating Temperature: 0 degrees C - 50 degrees C
Storage Temperature: -10 degrees C - 85 degrees C
Operating Humidity: 5% - 85%
Dimensions (Sender / Receiver): 1.5" W x 2.5" D x 0.5" H
Shipping Weight: 2 lbs.
