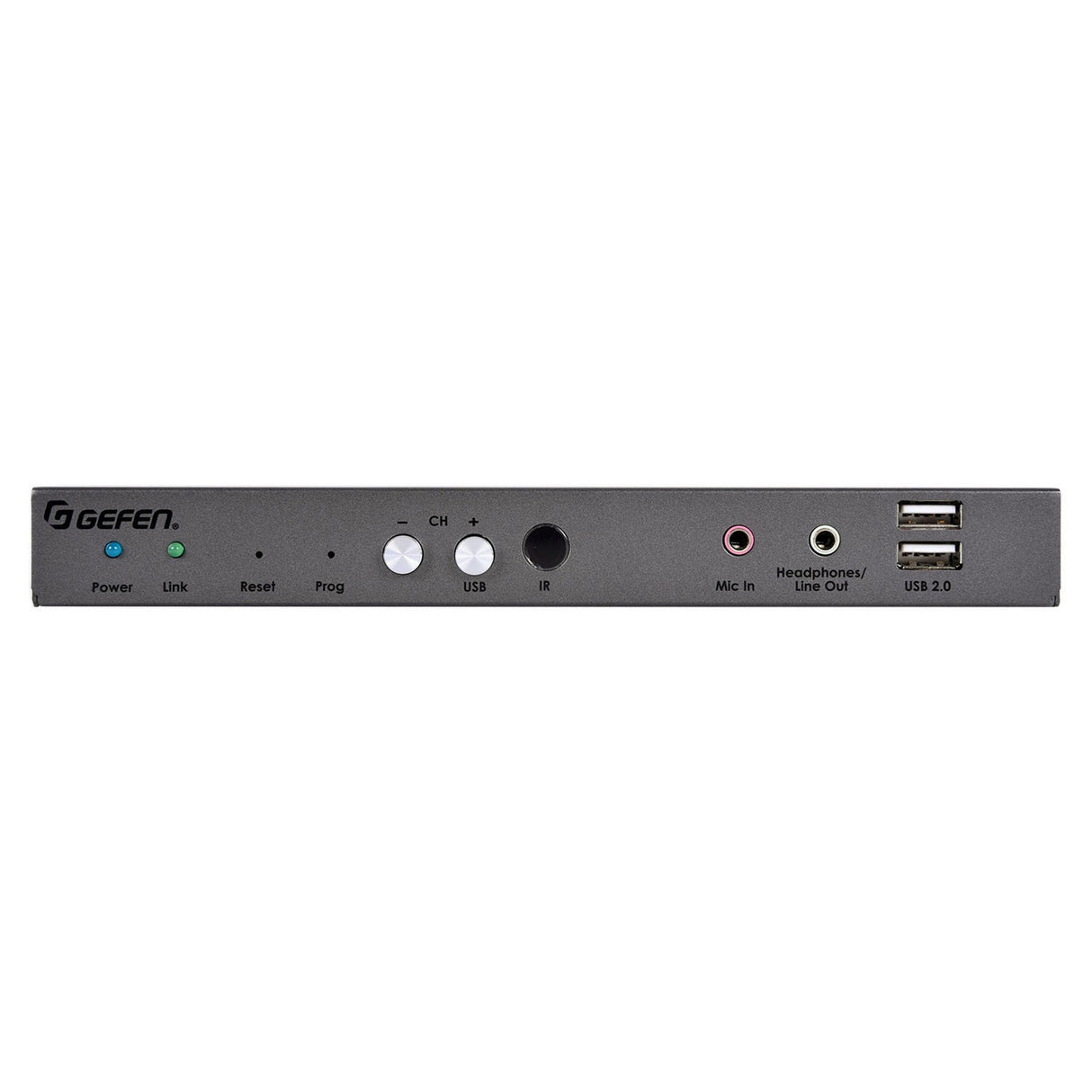

Gefen EXT-DVIKA-LANS-RX DVI KVM over IP, Receiver
The EXT-DVIKA-LANS-TX & RX support VESA and CEA resolutions up to WUXGA (1920 x 1200 at 60 Hz) and 1080p Full HD (1920 x 1080 at 60 Hz). The Sender unit features a video output for local monitoring of the source. USB, RS-232 2-way IR, and audio can be routed independently** between any Sender and Receiver unit, allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance, the new Gefen AV over IP products fully address the ever-growing needs of systems integrators.
Key Features
- Extends DVI, USB, RS-232, 2-way analog audio, and IR, using a Gigabit Local Area Network
- Independent video, USB, RS-232, IR, and audio routing**
- Backward-compatible with first generation Gefen AV over IP products
- Supports VESA and CEA input and output resolutions up to WUXGA (1920 x 1200 at 60 Hz) and 1080p Full HD (1920 x 1080 at 60 Hz)
- DVI output on Sender unit for local monitoring of the source
- KM Emulation feature facilitates real-time, simultaneous Keyboard and Mouse control of each source from all connected workstations
- Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
- Built-in video wall controller accommodates any number of rows and columns up to 16x16
- Enhanced API for added functionality with third-party control systems
- Built-in web interface, Telnet, and UDP
- Supports 39,900 Senders and a combination of over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch
- Two USB 2.0 ports with data rates up to 480 Mbps and backward-compatibility with USB 1.1
- Two USB 1.1 ports with KM Emulation, for use with Human Interface Devices (H.I.D.)
- 802.3af standard Power-over-Ethernet allows the new Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, without the need for external power supplies
- Two-port Gigabit Ethernet switch built into the Receiver unit
- Mode switch on Sender for sharpness or motion-optimization of image
- Field-updatable firmware via EXT-CU-LAN controller or the built-in web server interface
- Locking power supply connectors
- Half-rack width Sender and Receiver enclosures are rack-mountable using EXT-RACK-1U-GRY
- Sender and Receiver can also be surface-mounted using the included L-brackets
- Low profile Receiver enclosure features an IR Extender port and can be hidden away behind the display
Technical Specifications
Shipping Info
Length
8.1 (Inches)
Width
13.3 (Inches)
Height
3.6 (Inches)
Weight
3.4 (Lbs)
UPC
888814999754
Video Input connector (Sender)
(1) DVI 29-pin, female, digital only
Video Output connector (Sender)
(1) DVI 29-pin, female, digital only
Video Output connector (Receiver)
(1) DVI 29-pin, female, digital only
Line Input (Sender)
(1) 3.5mm mini-stereo jack
Line Output (Sender)
(1) 3.5mm mini-stereo jack
Mic Input (Receiver)
(1) 3.5mm mini-stereo jack
Headphones/Line Output (Receiver)
(1) 3.5mm mini-stereo jack
USB Host Interface port (Sender)
(1) USB Type B, female
USB Device ports (Receiver)
(2) USB 2.0 Type A, female
(2) USB 1.1 Type A, female
RS-232 port (Sender)
(1) DB-9, female
RS-232 port (Receiver)
(1) DB-9, male
IR Sensor (Receiver)
(1) Located on front panel
IR In/Ext (Sender/Receiver)
(1) 3.5mm mini-stereo jack
IR Out (Sender/Receiver)
(1) 3.5mm mini-mono jack
IR Extender type
EXT-RMT-EXTIRN
Ethernet port (Sender)
(1) RJ-45, shielded, PoE
Ethernet ports (Receiver)
(2) RJ-45, shielded, one with PoE
Channel Up/USB-Request button (Receiver)
(1) tact-type
Channel Down button (Receiver)
(1) tact-type
Mode button (Sender)
(1) tact-type, recessed
Reset button (Sender/Receiver)
(1) tact-type, recessed
Program button (Sender/Receiver)
(1) tact-type, recessed
Program Select switch (Sender/Receiver)
(1) slide-type, recessed
Link Indicator (Sender/Receiver)
(1) LED, green
Power Indicator (Sender/Receiver)
(1) LED, blue
Power Supply jack (Sender/Receiver)
5V DC, 2.5mm pin and 5.5mm barrel, locking
Power Requirement (Sender/Receiver)
5V DC, or PoE (802.3af standard)
Dimensions (W x H x D, without connectors or feet)
Sender: 8.4" x 1.7" x 5.9" (214mm x 43mm x 150mm)
Receiver: 8.4" x 1.0" x 5.9" (214mm x 25mm x 150mm)
