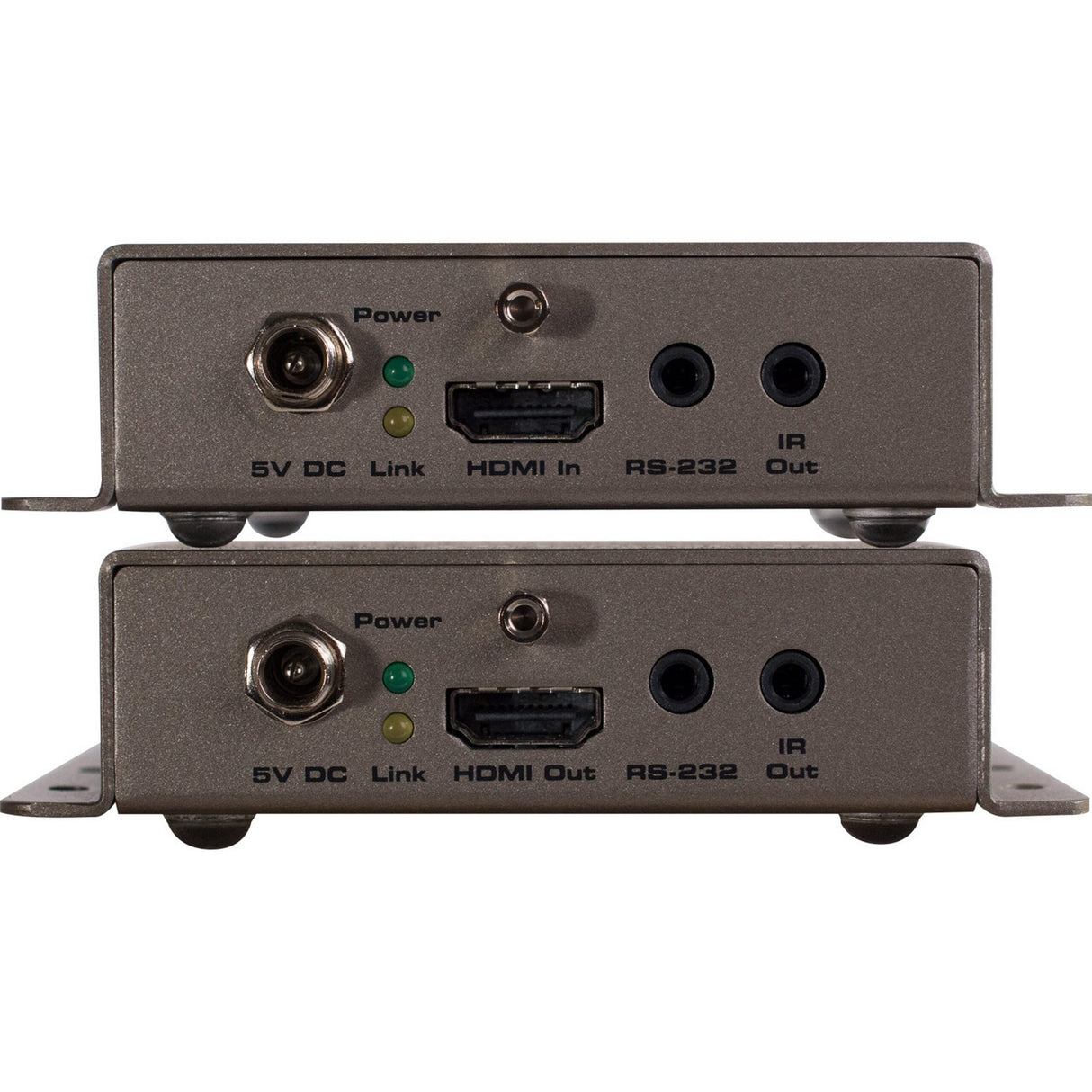

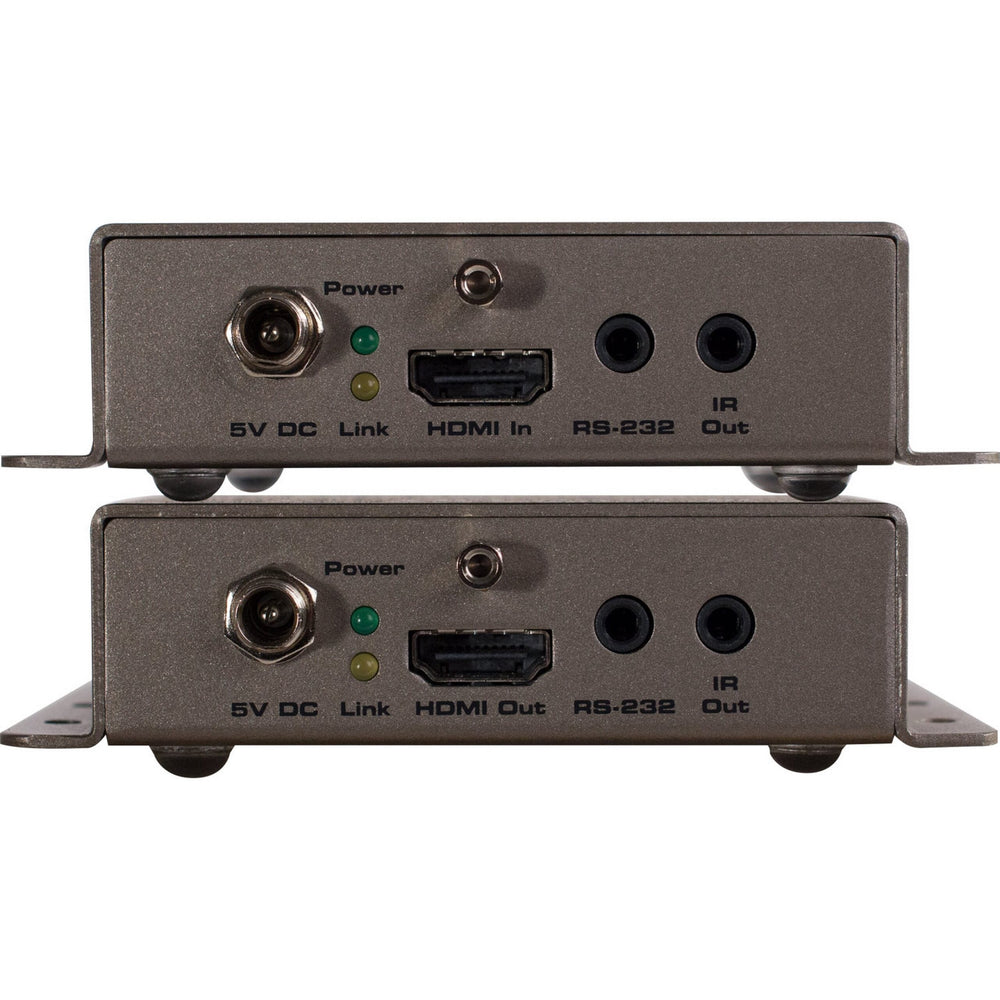

Gefen EXT-HD2IRS-LAN-TX HDMI over IP with RS-232 and Bi-Directional IR Sender Package

The HD over IP w/ RS-232 and 2-way IR extends HDMI, RS-232, and bi-directional IR over a Gigabit Local Area Network. Resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA), HDCP, Deep Color, 7.1 channel High Bit Rate digital audio, and Lip-Sync pass-through are supported. The Sender and Receiver units can be automatically or manually configured to unique IP addresses to allow the connection of multiple Senders and Receivers to the same network. Multiple Receiver units can simultaneously connect to any Sender unit within the network including the Gefen KVM over LAN products with HDMI, DVI, or VGA video, to create a virtual crosspoint matrix of just over 65,000 Sender and Receiver units total, depending on the network bandwidth and number of ports on the network switch (see Notes 1 and 2).

Key Features

• Extends HDMI, RS-232, and bi-directional IR over IP, using a Gigabit Local Network
• Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA)
• Built-in web interface facilitates intuitive set up and operation
• Any of the Senders within a network can be accessed by any Receiver unit via a web browser on a mobile device or computer, or by using the Gefen KVM/Video over IP Keyboard Switching
• Supports a total of just over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch
• Mode Selector function in web interface for sharpness or motion optimization of image
• Versatile IR In/Ext ports work with powered Gefen IR extenders and electrical IR from automation control devices
• Field-upgradable firmware via web server interface
• Locking power supply connectors
• RS-232 3.5mm mini-stereo-jack-to-DB-9 adaptors included
• Surface mountable

Technical Specifications

Shipping Info
Length
6 (Inches)
Width
12 (Inches)
Height
6 (Inches)
Weight
3 (Lbs)
UPC
845344070322
Maximum Pixel Clock
165 MHz
Maximum TMDS Clock
225 MHz
Video Input Connector (Sender)
(1) HDMI Type A 19-pin, female, locking
Video Output Connector (Receiver)
(1) HDMI Type A 19-pin, female, locking
RS-232 ports (Sender/Receiver)
(1) 3.5mm mini-stereo jack (DB-9 adaptors included)
IR Emitter ports (Sender/Receiver)
(1) 3.5mm mini-mono jack
IR In/Extender ports (Sender/Receiver)
(1) 3.5mm mini-stereo jack
IR Extender
EXT-RMT-EXTIRN
Ethernet connectors (Sender/Receiver)
(1) RJ-45, shielded
Reset buttons (Sender/Receiver)
(1) tact-type, recessed
Link Indicator (Sender/Receiver)
(1) LED, amber
Power Indicator (Sender/Receiver)
(1) LED, green
Power Supply (Sender / Receiver)
5V DC, locking
Power Consumption (Sender)
6W maximum
Power Consumption (Receiver)
4W maximum
Storage Humidity
0 to +95%, Relative Humidity, non-condensing
MTBF
50000 hours
Dimensions (Sender / Receiver) (W x H x D)
4.3" x 1" x 3.2" (110mm x 26mm x 80mm)
Unit Weight
EXT-HD2IRS-LAN-TX:0.4 lbs. (0.2 kg)
EXT-HD2IRS-LAN-RX:0.4 lbs. (0.2 kg)
Shipping Weight
EXT-HD2IRS-LAN-TX:2.0 lbs. (0.9 kg)
EXT-HD2IRS-LAN-RX:2.0 lbs. (0.9 kg)
