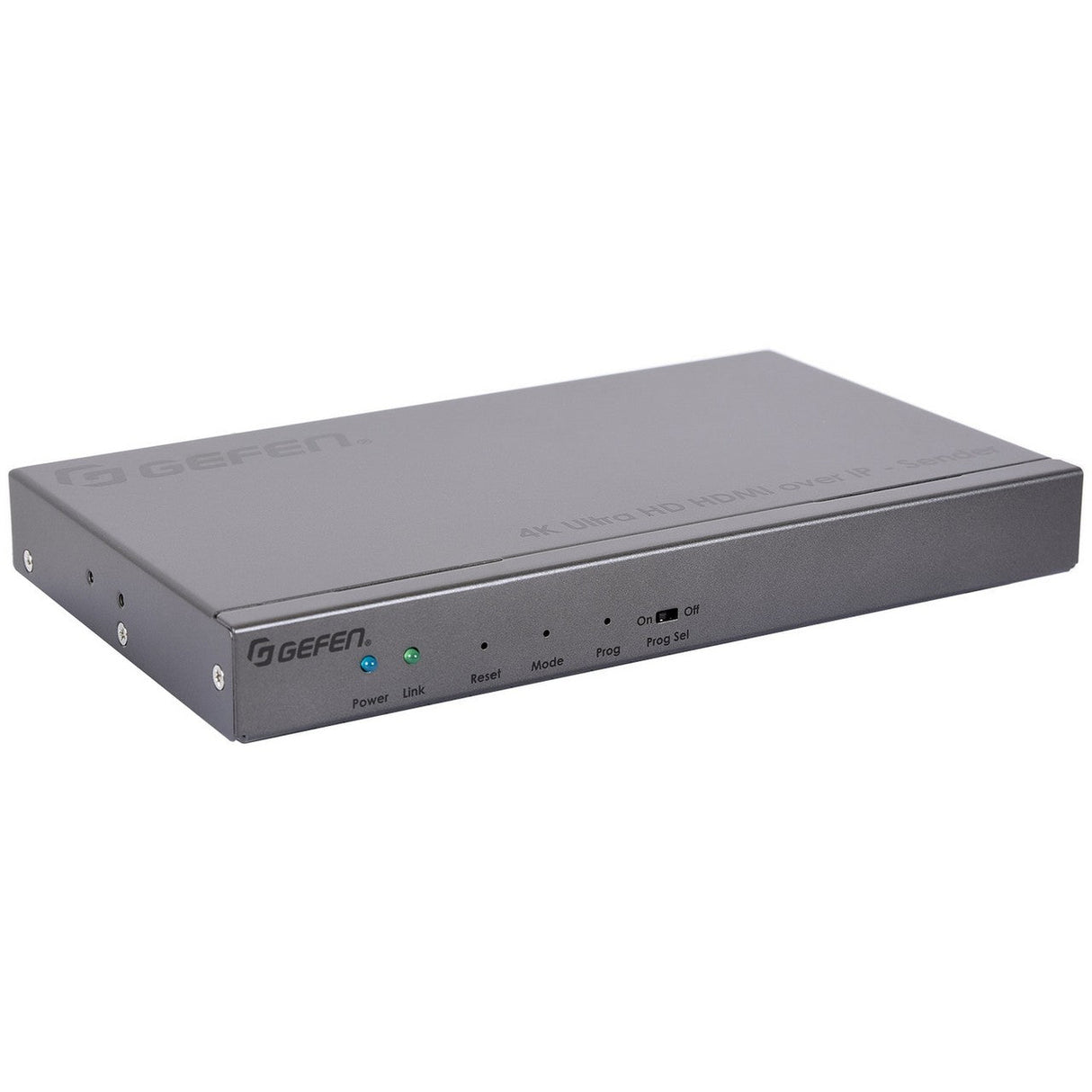

Gefen EXT-UHD-LANS-TX 4K UHD HDMI Over IP Transmitter
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
Gefen EXT-UHD-LANS-TX 4K UHD HDMI Over IP Transmitter
Extend and Distribute 4K HDMI with HDR, RS-232, IR, and audio over a Local Area Network Gefen's AV over IP solutions continue their tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. The Gen 2.0 KVM products offer enhanced performance, features, and functionality such as 4K Ultra HD with HDR support, built-in scalers, video-wall control, independent RS-232, IR, and audio routing, and backward-compatibility with our first generation products.
The EXT-UHD-LANS-TX & RX feature maximum input resolution of 4K 60 Hz 4:2:0, and maximum output resolution of 4K 30 Hz 4:4:4. HDCP 2.2 and 1.4 are also supported. 7.1 channels of HBR (High Bit Rate) lossless and LPCM digital audio can pass through the system as well.
Video, RS-232 2-way IR, and audio can be routed independently** between any Sender and Receiver unit, allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance, the new Gefen AV over IP products fully address the ever-growing needs of systems integrators.
The Receiver features a built-in scaler to help optimize the image for a variety of displays and different viewing environments. It also includes a powerful video wall controller that accommodates any screen configuration up to 16x16 and provides great flexibility in sizing and manipulating live and signage content in demanding installations. Digital and analog audio break-out de-embeds audio from the video and sends it to a separate audio system, enhancing the impact of presentations.
Key Features
- Extends HDMI, RS-232, analog audio, and IR, using a Gigabit Local Area Network
- Independent video, RS-232, IR, and audio routing
- Backward-compatible with first generation Gefen AV over IP products
- Supports input resolutions up to 4K 60Hz 4:2:0
- Supports output resolutions up to 4K 30Hz 4:4:4
- Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audiotrade;
- When used with Gefen DVI-to-HDMI cables (not included), supports the use of DVI sources and DVI displays up to 1080p Full HD and 1920x1200 (WUXGA)
- Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
- Built-in video wall controller accommodates any number of rows and columns up to 16x16
- Built-in Audio De-Embedder on Receiver breaks out 2 channel analog 2 channel PCM, and up to 5.1 channels of Bitstream audio from the HDMI signal, allowing the audio content to be sent to external amplifiers and music distribution systems for added impact
- MFU (Mass-Firmware-Update), quick and automated configuration and enhanced control capabilities and system security when used with the Gefen EXT-CU-LAN Matrix Controller
- Enhanced API for added functionality with third-party control systems
- Built-in web interface, Telnet, and UDP
- Supports 39,900 Senders and a combination of over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch
- 802.3af standard Power-over-Ethernet allows the new Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, without the need for external power supplies
- Two-port Gigabit Ethernet switch built into the Receiver unit
- Mode switch on Sender for sharpness or motion-optimization of image
- Field-updatable firmware via EXT-CU-LAN controller or the built-in web server interface
- Locking power supply connectors
- Low-profile, half-rack width Sender and Receiver enclosures are rack-mountable using EXT-RACK-1U-GRY
- Sender and Receiver can also be surface-mounted using the included L-brackets
- Low profile Receiver enclosure features an IR Extender port and can be hidden away behind the display
Technical Specifications
Video Input connector (Sender)
(1) HDMI Type A 19-pin, female, locking
Video Output connector (Receiver)
(1) HDMI Type A 19-pin, female, locking
Line Input (Sender)
(1) 3.5mm mini-stereo jack
Line Output (Receiver)
(1) 3.5mm mini-stereo jack
Optical Digital Audio Output (Receiver)
(1) TOSLINK
RS-232 port (Sender/Receiver)
(1) 3.5mm stereo jack, female, DB-9 adaptor included
IR In/Ext (Sender/Receiver)
(1) 3.5mm mini-stereo jack
IR Out (Sender/Receiver)
(1) 3.5mm mini-mono jack
IR Extender type
EXT-RMT-EXTIRN
Ethernet port (Sender)
(1) RJ-45, shielded, PoE
Ethernet ports (Receiver)
(2) RJ-45, shielded, one with PoE
Channel Up button (Receiver)
(1) tact-type
Channel Down button (Receiver)
(1) tact-type
Mode button (Sender)
(1) tact-type, recessed
Reset button (Sender/Receiver)
(1) tact-type, recessed
Program button (Sender/Receiver)
(1) tact-type, recessed
Program Select switch (Sender/Receiver)
(1) slide-type, recessed
Link Indicator (Sender/Receiver)
(1) LED, green
Power Indicator (Sender/Receiver)
(1) LED, blue
Power Supply jack (Sender/Receiver)
5V DC, 2.5mm pin and 5.5mm barrel, locking
Power Requirement (Sender/Receiver)
5V DC, or Po
