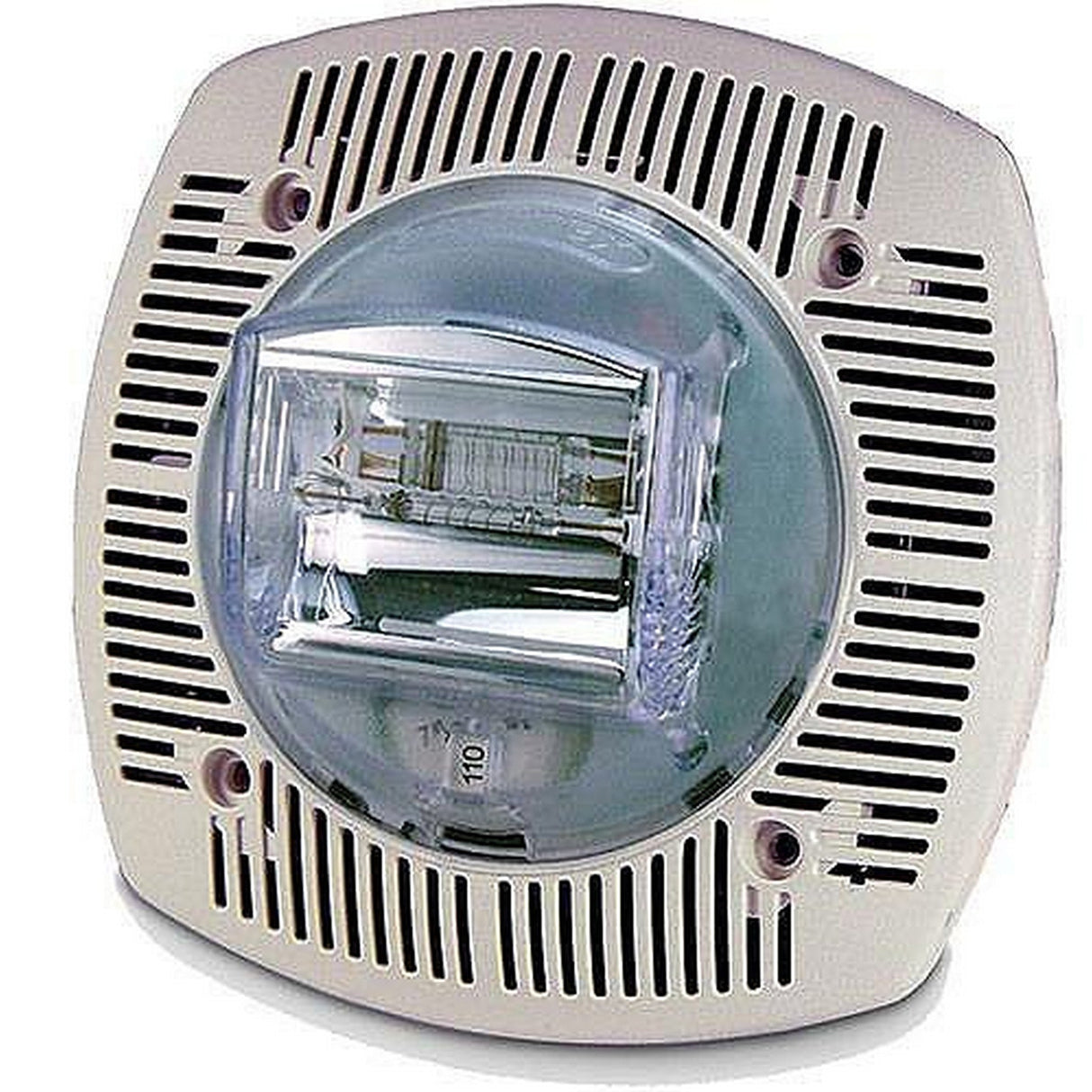

Gentex Low Profile Wall Mount Speaker Strobe

The Gentex SSPK24WLP Series is a premium line of wall-mountable, selectable candela speaker/strobes designed to meet stringent fire safety and life safety code requirements. These reliable units provide both audible and visual signaling, or a combination of both, for emergency evacuation purposes. Ideal for use in commercial, industrial, and residential buildings, the SSPK24WLP Series offers high-output tamperproof candela selections to ensure maximum visibility and audibility in the event of an emergency. With a wide selection of power taps and candela settings, the SSPK24WLP Series is highly customizable to meet the specific needs of any environment.

Each unit is engineered for intelligible high-quality sound output with a frequency range from 400 Hz to 4000 Hz, making it suitable for voice communication as well as emergency signaling. The field-selectable candela options (15, 30, 60, 75, and 110) offer versatility for different building sizes and layout configurations, while the fixed 15/75 candela unit provides a cost-effective solution for more straightforward installations. The SSPK24WLP Series is designed for ease of installation, with screw terminals for separate in/out wiring and the option to mount to a standard 4" x 2-1/8" deep back box. Whether you're updating a fire alarm system or installing a new one, the Gentex SSPK24WLP Series speaker/strobes offer the performance and reliability needed for comprehensive emergency signaling.

Main Features

• 24V DC speaker/strobe unit for dependable audio-visual signaling
• Field-selectable candela options: 15, 30, 60, 75, 110, with a fixed 15/75 option
• Selectable power taps for customized output: 1/8W, 1/4W, 1/2W, 1W, 2W, 4W
• Speaker voltage options: 25V or 70.7V RMS, field selectable
• High intelligibility dBA output for clear and effective evacuation signaling
• Wide frequency range: 400-4000 Hz
• Easy installation with screw terminals and separate in/out wiring (12-18 gauge)
• Mounts to a standard 4” x 2-1/8” deep back box for easy integration

Technical Specifications

Model: SSPK24WLP Series
Nominal Voltage: 24V DC
Field Selectable Candelas: 15, 30, 60, 75, 110 (with fixed 15/75 option)
Speaker Voltage: 25V or 70.7V RMS (field selectable)
Power Taps: Selectable field taps – 1/8W, 1/4W, 1/2W, 1W, 2W, 4W
Output: High-quality dBA output (intelligible)
Frequency Range: 400 Hz to 4000 Hz
Wiring: Screw terminals, separate in/out wiring (12-18 gauge)
Unit Dimensions: 6.1" (15.494 cm) square x 3.89" (9.88 cm) deep
Mounting: Mounts to a standard 4” x 2-1/8” deep back box
