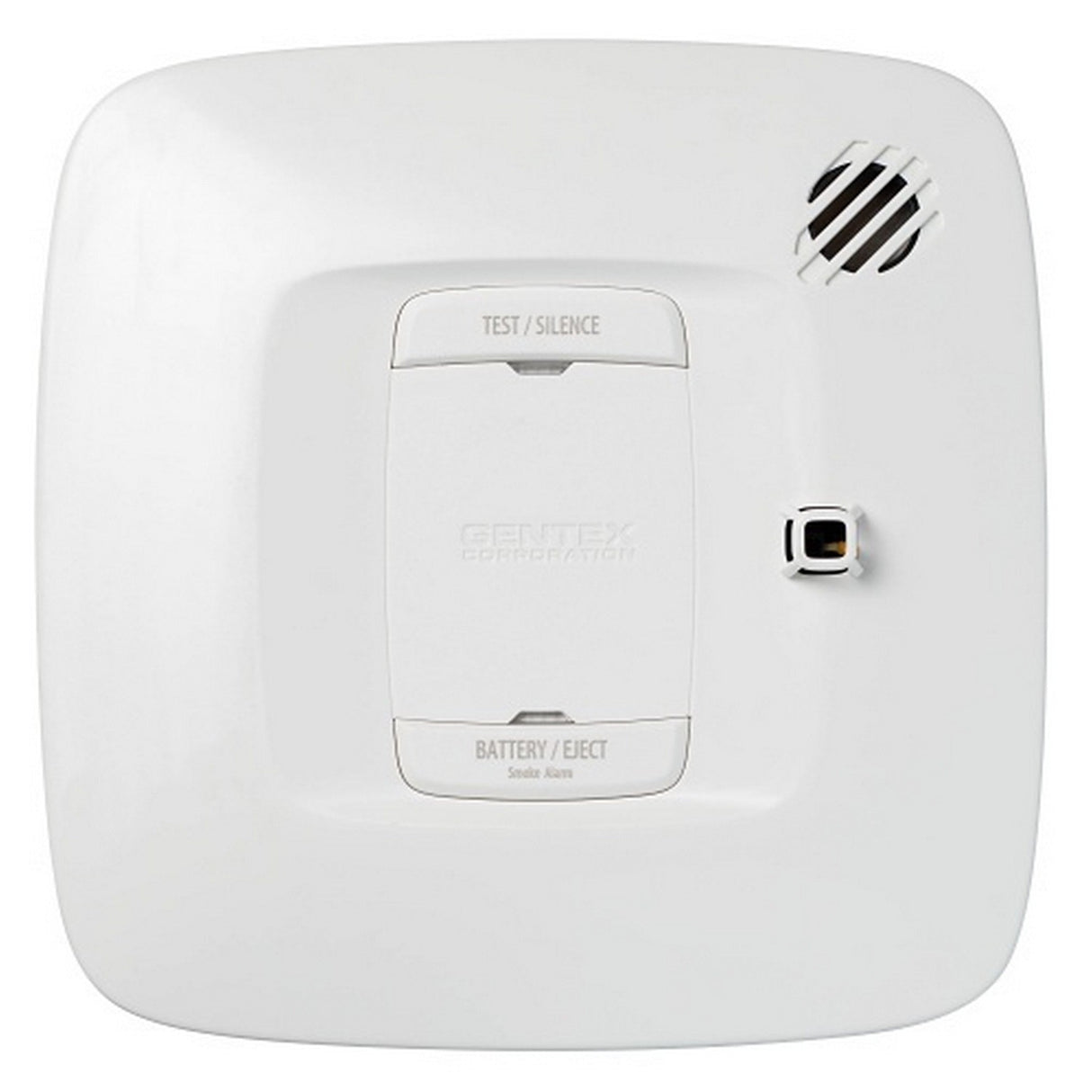

Gentex Multi-Criteria Smoke Alarm with Relay, 120V AC
Gentex Multi-Criteria Smoke Alarm with Relay, 120V AC
Gentex Smoke and Heat Evacuation Alarm Signal Device
The Gentex Smoke and Heat Evacuation Alarm Signal Device is a state-of-the-art safety solution designed to provide immediate, clear evacuation signals in the event of smoke or heat detection. Ideal for both commercial and industrial environments, this device ensures rapid occupant awareness during emergencies, helping to protect lives and property. With advanced features such as a loud 93 dBA evacuation horn, a Temporal 3 evacuation signal pattern, and a nominal sensitivity of 2.5%, the Gentex alarm offers an exceptional level of performance and reliability in hazardous conditions.
This highly efficient device integrates a powerful piezo horn that emits a 93 dBA alarm at 10 feet, ensuring it can be heard even in noisy environments. The Temporal 3 signal pattern effectively communicates the urgency of the situation, giving clear and distinct evacuation instructions. With its nominal sensitivity of 2.5%, the device ensures that even low levels of smoke or heat are detected with precision, making it a vital component of your emergency response system.
In addition to its primary features, the Gentex Smoke and Heat Evacuation Alarm Signal Device offers several advanced capabilities, including programmable relay operation and 16 hours of alarm memory. These features allow for easy system integration and offer historical data that can aid in post-event analysis. With its wide operating temperature range and compatibility with secondary power sources like a 9V battery, this alarm device is built for versatility and long-term reliability, making it the perfect solution for a range of fire safety applications.
Key Features:
- 93 dBA evacuation piezo horn ensures high visibility and loud alarm in emergency situations
- Temporal 3 evacuation signal pattern for effective smoke and heat annunciation
- Nominal 2.5% sensitivity ensures optimal smoke and heat detection performance
- Programmable relay operation for easy customization and integration with other safety systems
- 16 hours of alarm memory for better monitoring and tracking of activation history
- Meets industry standards for fire and safety alarm systems
- Secondary 9V battery backup (DuracellĀ® MN 1604) for reliable power
Technical Specifications:
Dimensions: 5.5" x 5.5" x 1.75"
Weight: 1.5 lbs
Sound Output: 93 dBA at 10 feet
Sensitivity: Nominal 2.5%
Signal Pattern: Temporal 3 Evacuation Pattern
Alarm Memory: 16 hours
Relay Operation: Programmable
Power Supply: 24 VDC
Operating Temperature: 32Ā°F to 120Ā°F (0Ā°C to 49Ā°C)
Humidity: 0% to 93% RH non-condensing
Secondary Power Source: Alkaline 9V battery (DuracellĀ® MN 1604)
Electrical Specifications:
Operating Voltage (S/C/SC/H): 120VAC, 60 Hz
Operating Voltage (S220/SR220/H220): 220VAC, 50 Hz/60 Hz
120VAC Operating Current: 0.055 amps
220VAC Operating Current: 0.135 amps
Operating Ambient Temp Range: 40Ā°F to 100Ā°F
Alarm Horn Rating: 85 dBA at 10 feet
Nominal Sensitivity: 2.5% obscuration
Auxiliary Relay (SR/CR/SCR/SR220): 1 Form A and 1 Form C (0.5 amps)
Auxiliary Relay (STRR/SHRR/SCRR): 2 Form A and 2 Form C (0.3 amps)
āTā Integral Thermal (Self-Restoring): 135Ā°F at 50 feet
āHā Isolated Thermal Form A (Self-Restoring): 135Ā°F at 50 feet
Size: Diameter: 5.5" x 5.5" OA (5.0" x 5.0" at base), Depth: 1.75"
Secondary Power Source: Alkaline 9V battery (DuracellĀ® MN 1604)
