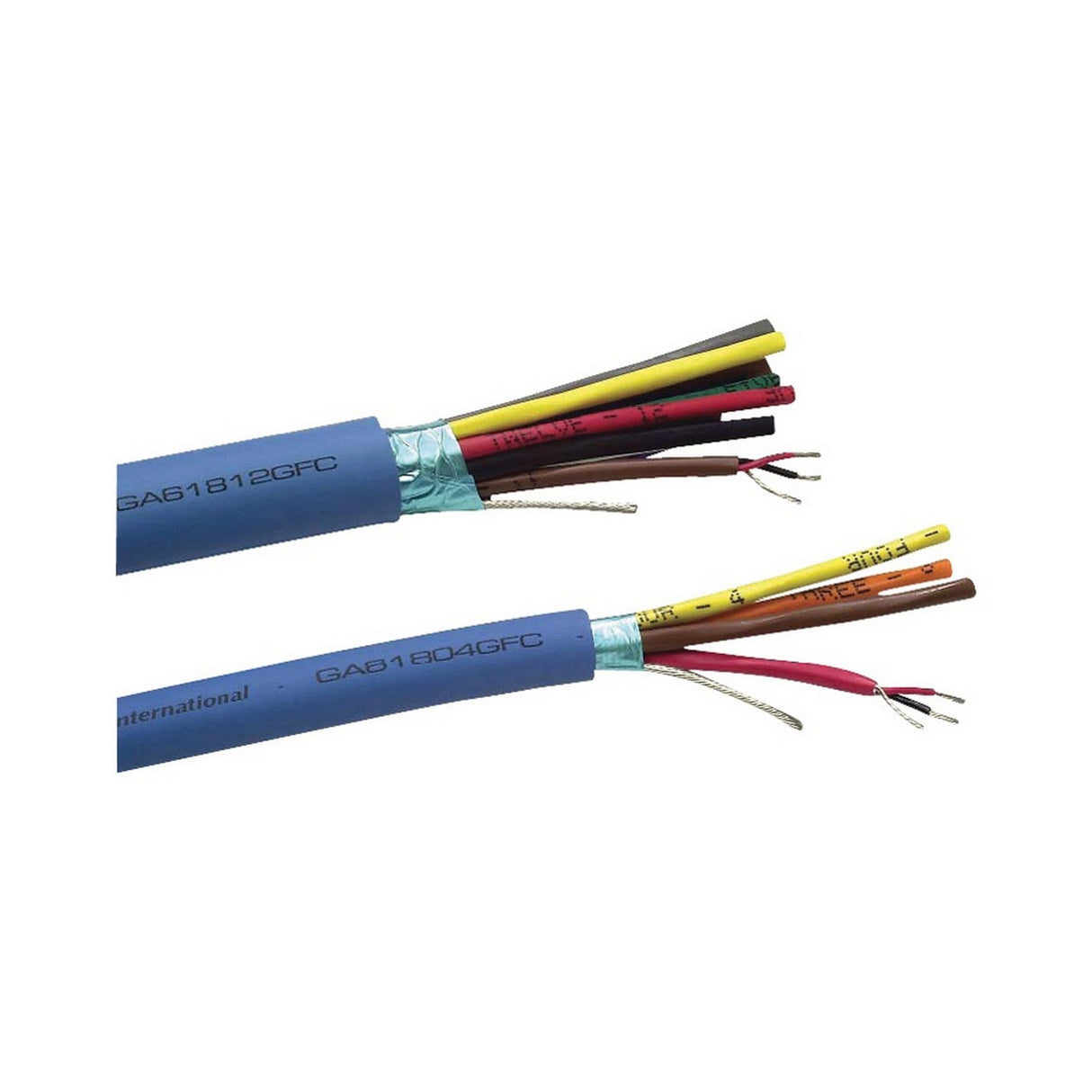

Gepco GA61806GFC 6-Pair 22 AWG Mic/Line Level Analog Snake Cable, 1000 Foot

The original Gepco Brand multi-pair cable, the GA618 series multi-pair, was designed for low noise and attenuation and is durable, easy to terminate and UL listed. A high-grade polyethylene dielectric minimizes high-frequency attenuation, while excellent process control and tight pair twisting achieve superior noise rejection. Color coded and alphanumerically printed pairs facilitate easy channel identification, and the riser rated Gepco Brand GEP-FLEX master jacket is both flexible and easy to pull through conduit. The 22-gauge conductors offer the lowest DCR available in any of the Gepco Brand multi-pair products, making the GA618 series ideal for extended distance runs of mic level signals.

Key Features

• Low Attenuation & Crosstalk
• Flexible
• Easy to Terminate
• Microphone or Line Level Balanced Analog Audio
• Studio Interconnect, Portable Snakes or Permanent Installation
• Ideal for Extended-Distance Runs
• Polyethylene Dielectric
• Individually Shielded & Jacketed Pairs
• Color Coded & Alphanumeric Pair Identification
• Additional Overall Foil Shield
• All-Weather GEP-FLEX Master Jacket
• CMR Riser Rated

Technical Specifications

Nominal OD 0.475"
Conductors
22 AWG (7x30) Stranded TC
Insulation/Color Code
PE, 0.010" Wall/Red & Black
Pair Shield
100% Foil
Pair Drain
22 AWG (7x30) Stranded TC
Pair Jacket (Type, OD)/ Color Code
PVC, 0.140"/Black
Overall Shield
100% Foil
Overall Common Drain
16 AWG (19x29) Stranded TC
Master Jacket
Riser GEP-FLEX TPE, Blue
UL Type
CMR
