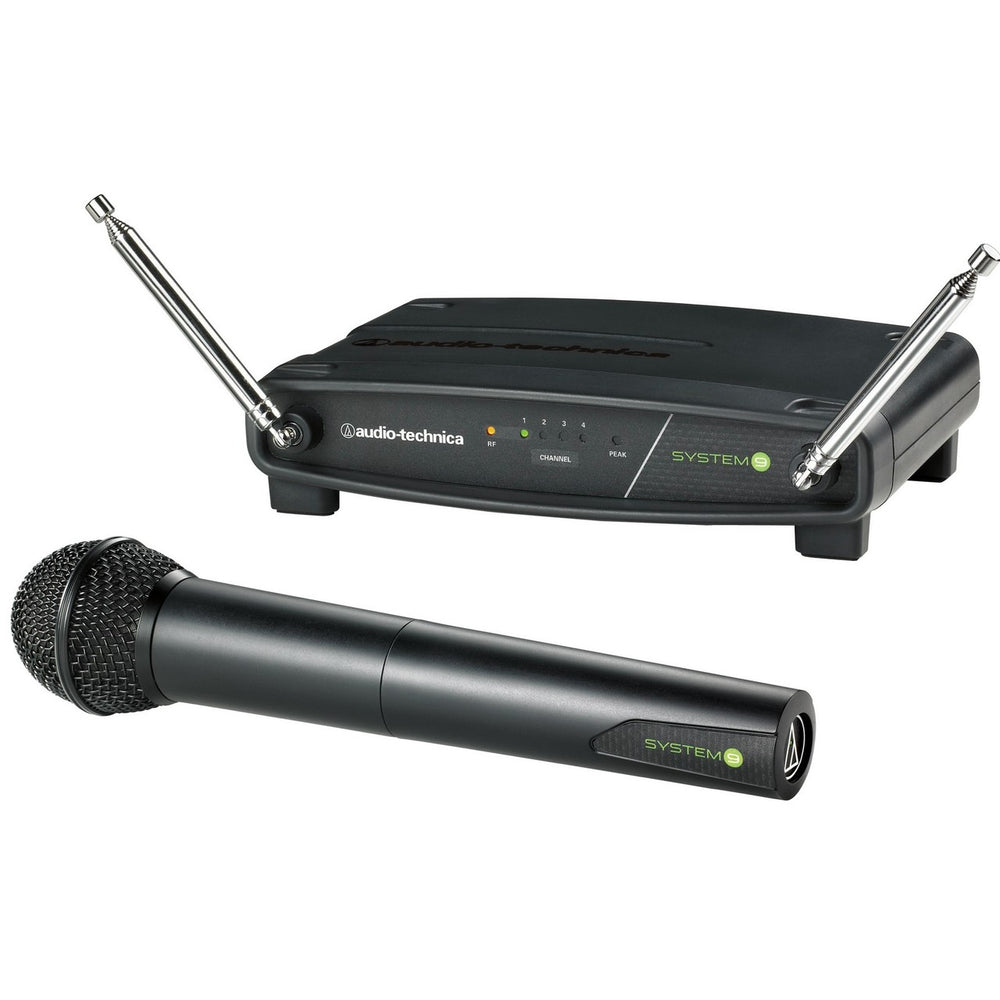

Audio Technica ATW-902a | System 9 VHF Wireless System with Handheld Unidirectional Microphone

The Audio Technica ATW-902a System 9 VHF Wireless System brings high-quality audio performance, reliability, and user-friendly setup to the forefront of your audio needs. This sophisticated wireless system is designed with sleek, stackable, and contemporary styling, making it perfect for any setting. Whether you are a musician, public speaker, or event organizer, the ATW-902a ensures clear, natural sound quality through its four-channel frequency-agile system. With configurations available for handheld, headworn, guitar, lavalier, and body-pack, this system provides versatility for any application.System 9's four compatible user-switchable VHF channels (169.505, 170.245, 171.045, and 171.905 MHz) allow for flexible frequency management, ensuring interference-free performance. The system includes the robust ATW-R900 receiver and the ATW-T902 handheld dynamic unidirectional microphone/transmitter. Coupled with an advanced dipole antenna system, the System 9 offers an extended operating range and improved signal reliability. Its design ensures not only high audio quality but also ease of use, making it suitable for both beginners and professionals.Moreover, the system is built with durable construction to withstand the rigors of any environment. Its reliable performance ensures that events proceed smoothly with minimal technical issues. With key features focusing on easy operation, natural sound quality, and reliability, the Audio Technica ATW-902a System 9 VHF Wireless System stands out as a top choice for those seeking professional-grade wireless audio solutions.

Key Features

• ATW-R900 receiver and ATW-T902 handheld dynamic unidirectional microphone/transmitter included
• 4 selectable frequency-coordinated VHF channels
• Easy operation and clear, natural sound quality
• Reliable performance and durable construction
• Advanced dipole antenna system for extended operating range

Specifications

• Operating Frequencies: VHF highband, 169 MHz to 172 MHz
• Modulation Mode: FM
• Maximum Deviation: +/-10 kHz
• Dynamic Range: >/=90 dB (A-weighted), typical
• Total Harmonic Distortion: <1% (at 1 kHz +/-10 kHz deviation)
• Operating Range: 200' (60 m) typical
• Operating Temperature Range: 40° F (4° C) to 110° F (43° C)
• Frequency Response: 80 Hz to 13 kHz
• Receiving System: Non-diversity, single-channel, dual antenna system
• Image Rejection: 50 dB minimum
• RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
• Audio Output: XLR, balanced: 350 mV; 1/4" (6.3 mm), unbalanced: 700 mV
• Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A
• Receiver Dimensions: 7.48" (190.0 mm) W x 1.82" (46.2 mm) H x 5.06" (128.5 mm) D
• Receiver Net Weight: 12.0 oz (337 grams)
• Body-Pack Transmitter RF Power Output: 10 mW
• Body-Pack Transmitter Battery Life: 8 hours (alkaline)
• Body-Pack Transmitter Dimensions: 2.76" (70.2 mm) W x 4.08" (103.7 mm) H x 0.98" (24.9 mm) D
• Handheld Transmitter RF Power Output: 10 mW
• Handheld Transmitter Battery Life: 8 hours (alkaline)
• Handheld Transmitter Dimensions: 9.91" (251.8 mm) long, 2.11" (53.5 mm) diameter

Package Contents

• ATW-R900 receiver
• ATW-T902 handheld dynamic unidirectional microphone/transmitter
• AT8456a Quiet-Flex stand clamp
• Power supply
