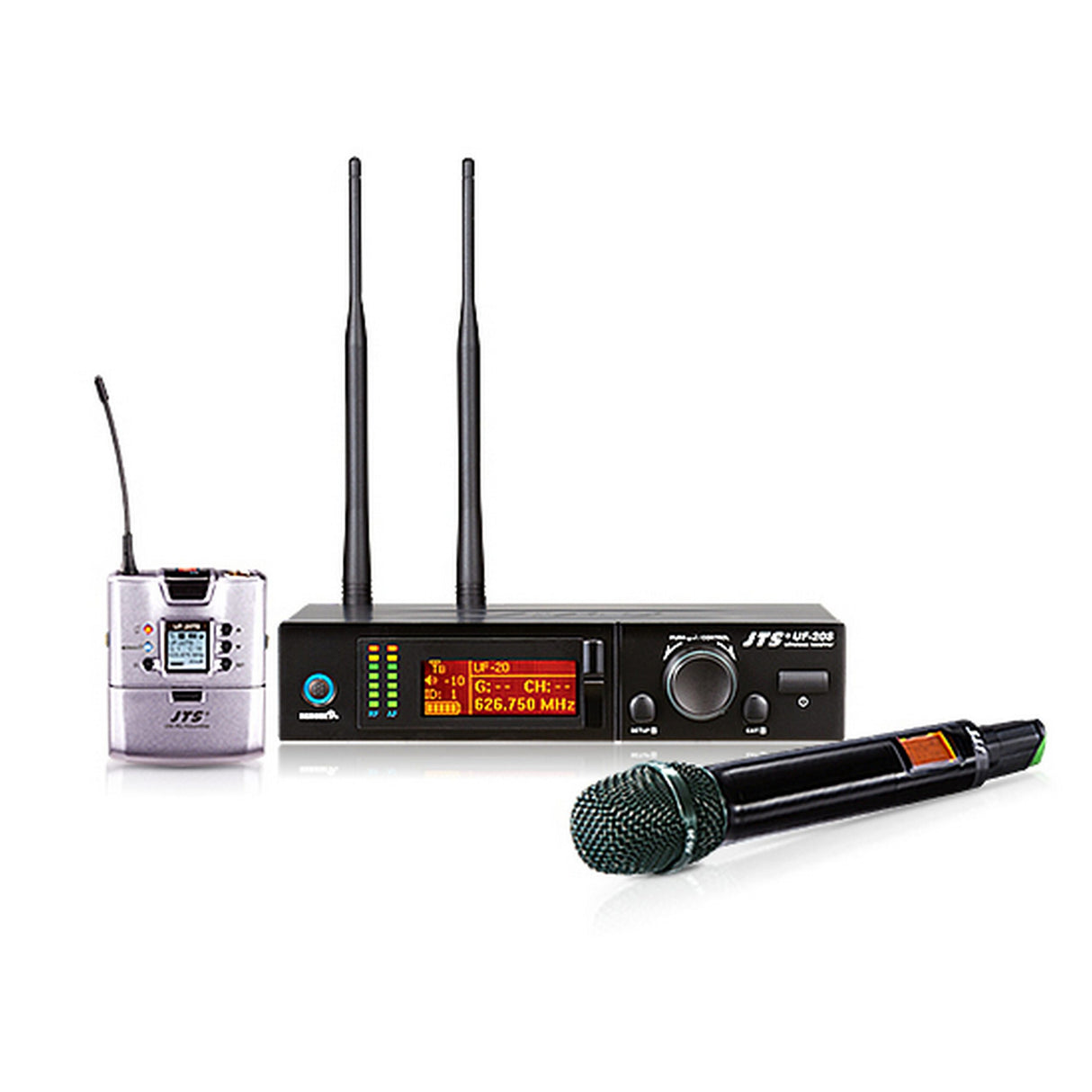

JTS UF-20S UHF Single Channel Wideband True Diversity Wireless Receiver
Dual Channel Wideband True Diversity System
Key Features
- UHF True diversity technology renders 200-480 meters of operation distance
- Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
- Preset 15 groups each of up to 63 compatible channels
- User programmable 6 groups each of 64 channels
- Free space scan function
- JTS Patented obstacle-free RF
- function synchronizes a transmitter by pushing a button
- JTS LCX circuit design technology minimizes companding noise
- Built in equalizer
Technical Specifications
UF-20S
Frequency Preparation
PLL Synthesized Control
Frequency Setting
JTS patented obstacles-free RF REMOSET
Carrier Frequency Range
UHF 470~960 MHz
Channel
Single
Bandwidth
60~75MHz Wideband
S / N Ratio
> 108dB (A)
T.H.D
<0.5% @ 1KHz
Chassis
1/2U standard metal chassis
Preset Channels / Group
From group 1 ~ 15 up to 63 interference-free compatible channels.
844 preset channels / group and 3000 selectable frequencies across 63 to 75 Hz Bandwidth.
User programmable from U1 ~ U6 each of 64 channels reserved.
Display
LCD
Display Contents
Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch
Sensitivity
6dB?V, at S / N> 80dB
Receiving Mode
True diversity
Audio Output Level
Maximum 6dBu
Receiving Mode
True diversity
Audio Output Level
Maximum 6dBu
AF Output Impedance
600
Frequency Response
50Hz ~ 18kHz, with high-pass filter
Squelch
Pilot Tone & Noise Mute
Power Supply
100 ~ 240V or 12V DC
Output Connector
1 XLR Balanced Socket
1 -6.3mm Unbalanced phone jack
Dimension (m / m)
212mm(W)x44Mmm(H)x213.9mm(D)
Notes
Actual product specifications may vary depending on model and region.
JSS-20
Frequency Preparation
PLL Synthesized Control
Carrier Frequency Range
UHF 502~960 MHz
Bandwidth
75MHz Wideband
RF Outputs
10mW / 50mW
(Depend on Local Regulation)
Stability
< -10KHz
Frequency Deviation
-48KHz (Peak)
LCD Display
Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust
Controls
Power ON / OFF, AF Level, Frequency (Up / Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Spurious Emissions
<-50 dBC
Audio Frequency Response
50Hz ~ 18k Hz
Capsule Module
Interchangeable
Battery
AA NiMH x2
Dimensions
50mm (W) x253mm (H) x35.5mm (D)
Weight
350g
Notes
Actual product specifications may vary depending on model and region.
UF-20TB
Frequency Preparation
PLL Synthesized Control
Carrier Frequency Range
UHF 502~960 MHz
Bandwidth
75MHz Wideband
RF Outputs
10mW / 50mW
Stability
< -10KHz
Frequency Deviation
- 48KHz (Peak)
Chassis
Aluminum alloy
LCD Display
Group, Channel, Frequency, Battery Status, User Name , GAIN Adjust
Controls
Power ON/OFF, AF Level, Frequency (Up/ Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
Output Connector
4P Mini XLR
Spurious Emissions
<-50 DBC
Audio Frequency Response
50Hz ~ 18k Hz
Battery
AA NiMH x2
Dimensions
62mm (W) x80.3mm (H) x22.6mm (D)
Weight
93g
Notes
Actual product specifications may vary depending on model and region.
