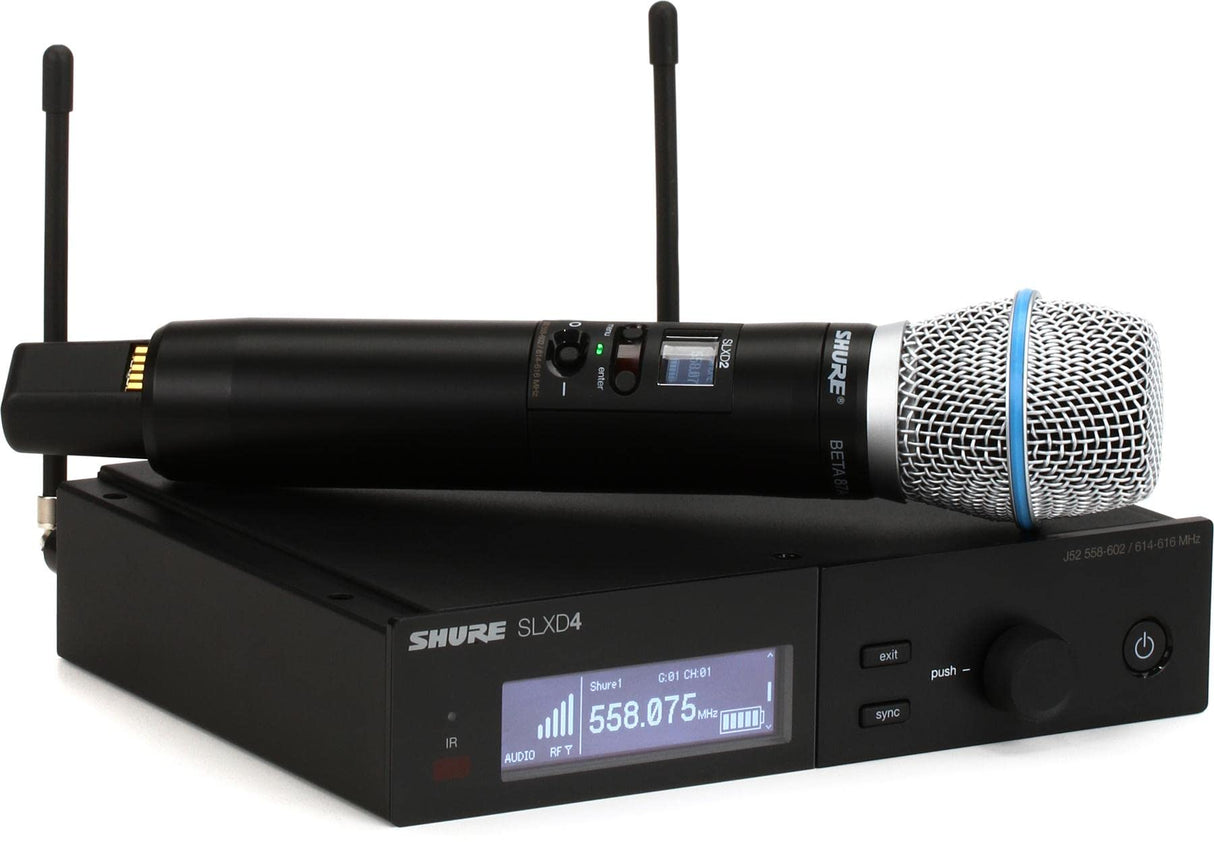

Shure SLXD24/B87A Wireless Handheld Microphone System with Beta 87A - G58: 470 - 514 MHz

Shure SLXD24/B87A Wireless Handheld Microphone System with Beta 87A: Studio-Quality Audio for Every Occasion

The Shure SLXD24/B87A Wireless Handheld Microphone System with the Beta87A Supercardioid Condenser Microphone capsule is designed to deliver unparalleled audio clarity and RF stability. Whether you're presenting in a lecture hall or performing live on stage, this wireless system ensures that your voice is captured with precision and consistency. The system comprises the SLXD2 handheld wireless transmitter and the SLXD4 single-channel receiver, guaranteeing a reliable and efficient audio experience. Highlights include flawless 24-bit digital audio and the capacity to support up to 32 compatible systems per 44 MHz band, making it a versatile choice for various professional setups.

Setting up the SLXD24/B87A is a breeze, thanks to the user-friendly design and clear operational guidelines. Accommodate multiple users simultaneously without experiencing dropouts or interference. Enhance your system's mobility and convenience with optional rechargeability accessories, ensuring your microphone is always ready to go, even during extended sessions. Crafted with top-tier components and backed by Shure's long-standing reputation for quality and performance, the SLXD24/B87A is an invaluable addition to your audio equipment collection.

Make your voice stand out with the superior audio capture of the Shure SLXD24/B87A. Perfect for educators, event coordinators, and performers seeking a dependable wireless microphone system, this product assures smooth and uninterrupted sound transmission every time. Embrace the freedom of wireless audio with this exceptional solution from Shure.

Key Features

• Wireless system designed to provide clear and consistent digital audio in various settings such as lecture halls and live performances.
• Equipped with Beta87A Supercardioid Condenser Microphone capsule on the SLXD2 handheld wireless transmitter, ensuring excellent audio capture.
• Exemplary 24-bit audio clarity and robust RF stability make this system reliable and versatile.
• Enables operation of up to 32 compatible systems within a 44 MHz band.
• Easy setup and operational flexibility guaranteed, with optional rechargeability accessories available.
• Package includes an SLXD4 single-channel receiver, SLXD2/B87A handheld transmitter, antenna, and rackmount accessories.
• Comes with 2 AA batteries, ensuring convenience right out of the box.

Specifications

• SLXD2 Handheld Transmitter
• Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
• Dimensions: 37.1 x 176 mm (1.46 x 6.93 in.), D x L
• Weight: 147 g
• Housing: Aluminum
• Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
• Note: Dependent on microphone type
• Antenna Type: Integrated Single Band Helical
• Occupied Bandwidth: <200 kHz
• Modulation Type: Shure proprietary digital
• Power: 1 mW or 10 mW
• SLXD4 / SLXD4D Rack Receiver
• Dimensions (SLXD4): 42 x 197 x 152 mm (1.65 x 7.76 x 5.98 in.), H x W x D
• Dimensions (SLXD4D): 42 x 393 x 152 mm (1.65 x 15.47 x 5.98 in.), H x W x D
• Weight (SLXD4): 816 g, without antennas
• Weight (SLXD4D): 1451 g, without antennas
• Housing: Galvanized Steel
• Power Requirements: 15 V DC @ 600 mA, supplied by external power supply (tip positive)
• Spurious Rejection: >75 dB, typical
• Connector Type: BNC
• Impedance: 50 Ω
• Phantom Power Protection: 1/4" (6.35 mm): Yes, XLR: Yes
• Gain Adjustment Range: -18 to +42 dB in 1 dB steps
• Configuration: 1/4" (6.35 mm): Balanced (Tip = audio +, Ring = audio -, Sleeve = ground); XLR: Balanced (1=ground, 2=audio +, 3=audio -)
• Impedance: 1/4" (6.35 mm): 1.3 kΩ (670 Ω Unbalanced); XLR (line): 400 Ω (200 Ω Unbalanced); XLR (mic): 150 Ω
• Full Scale Output: 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single); XLR: LINE setting= +15 dBV, MIC setting= -15 dBV
• Mic/Line Switch: 30 dB pad
• Network Interface: Single Port Ethernet 10/100 Mbps
• Network Addressing Capability: DHCP or Manual IP address
• Maximum Cable Length: 100 m (328 ft)

Installation / Use Cases

• Use as a digital wireless handheld microphone system for live performance, lecture halls, events, presentations, and professional speech applications.
• Suitable for users who need a complete SLX-D wireless system with a handheld transmitter and single-channel receiver.
• Use the SLXD2/B87A handheld transmitter with Beta 87A supercardioid condenser capsule for vocal and speech pickup.
• Use the SLXD4 single-channel receiver for rack-based wireless system integration.
• Use 24-bit digital audio and robust RF stability for clear wireless sound.
• Use up to 32 compatible systems within a 44 MHz band in compatible multi-system setups.
• Use optional rechargeability accessories when rechargeable operation is preferred.
• Available in multiple frequency band options.

Package Contents

• SLXD2/B87A handheld transmitter
• SLXD4 single-channel receiver
• Antenna and rackmount accessories
• Two AA batteries
