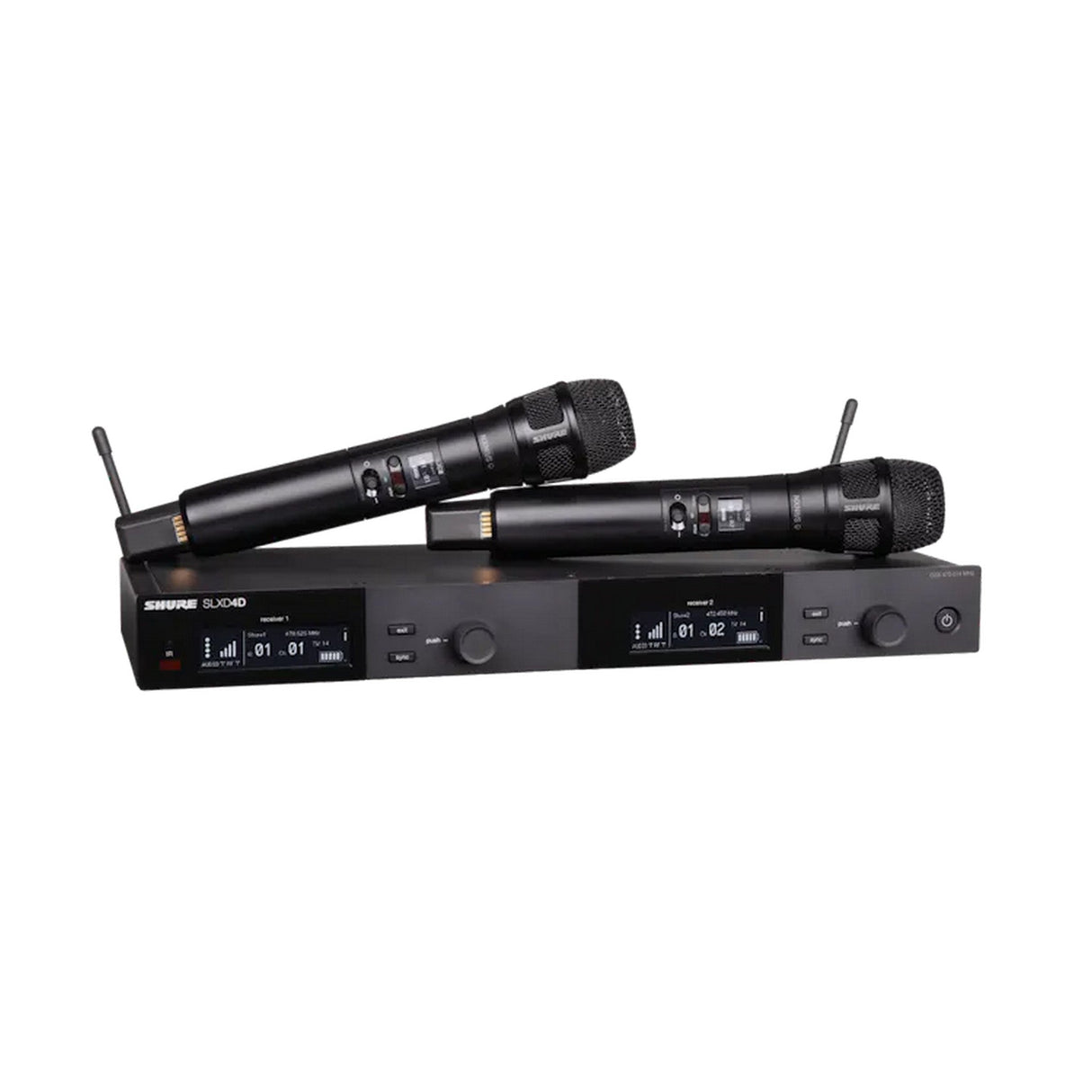

Shure SLXD24D/N8S Supercardioid Dual Handheld Microphone Wireless System - G58: 470-514 MHz

Shure SLXD24D/N8S Supercardioid Dual Handheld Microphone Wireless System

The Shure SLXD24D/N8S Supercardioid Dual Handheld Microphone Wireless System revolutionizes your live performances, presentations, and recording sessions with impeccable digital audio and reliable wireless operations. Engineered for vocalists, presenters, and musicians, this system guarantees top-tier performance across various applications, making it an ideal choice for any professional setup.

Equipped with transparent 24-bit digital audio, the Shure SLXD24D/N8S ensures an uncompromised sound quality, offering a clear and natural listening experience. With strong RF performance, you can rely on this system for optimal wireless stability, perfect for crowded RF environments found in live music settings and large venues. The included Nexadyne 8/S Supercardioid Dynamic Microphone Capsule exquisitely captures rich vocals while efficiently rejecting unwanted background noise, ensuring that your voice remains the focal point.

The system supports up to 32 compatible systems per band, allowing for seamless operation in crowded RF spaces. It boasts a quick and easy setup process with optional rechargeable batteries to secure continuous and long-lasting power. The robust SLXD4D Dual-Channel Receiver, constructed with durable metal, and two SLXD2/N8SB Handheld Transmitters with Nexadyne 8/S microphone capsules complete this professional package, ensuring your performances and presentations impressively clear and reliable.

Key Features

• Clear 24-bit digital sound
• Wide frequency range from 20 Hz to 20 kHz
• Dynamic range of 118 dB
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (varies by region)
• 32 channels available per frequency band (varies by region)
• Up to 10 systems compatible per 6MHz TV band; 12 systems per 8 MHz band
• Simple scanning and IR sync for pairing transmitters and receivers
• Compatible with Shure Wireless Workbench control software
• Remote monitoring and control via ShurePlus Channels app
• Sturdy metal construction

Specifications

• Receiver Dimensions (H × W × D): 1.65 × 15.5 × 5.98 in (42 × 393 × 152 mm)
• Receiver Weight: 3.2 lb (1451 g) without antennas
• Receiver Housing: Galvanized Steel
• Receiver Power Requirements: 15 VDC @ 600 mA (supplied by external power supply, tip positive)
• RF Spurious Rejection: >75 dB Typical
• RF Connector Type: BNC
• RF Impedance: 50 Ω
• Audio Output Gain Adjustment Range: –18 to +42 dB in 1 dB steps
• Audio Output Configuration: 1/4" (6.35 mm) Balanced (Tip=audio +, Ring=audio –, Sleeve=ground); XLR Balanced (1=ground, 2=audio +, 3=audio –)
• Audio Output Impedance: 1/4" (6.35 mm): 1.3 kΩ (670 Ω Unbalanced); XLR (line): 400 Ω (200 Ω Unbalanced); XLR (mic): 150 Ω
• Full Scale Output: 1/4" (6.35 mm): +15 dB differentially (+9 dBV single); XLR (LINE setting): +15 dBV; XLR (MIC setting): –15 dBV
• Mic/Line Switch: 30 dB pad
• Phantom Power Protection: 1/4" (6.35 mm) and XLR
• Network Interface: Single Port Ethernet 10/100 Mbps
• Network Addressing Capability: DHCP or Manual IP address
• Maximum Cable Length: 100 m (328 ft)
• Transmitter Polar Pattern: Supercardioid
• Transmitter Connector: Three-pin professional audio (XLR), male
• Frequency Options: G58 (470-514 MHz); H55 (514-558 MHz); J52 (558-602, 614-616 MHz)

Package Contents

• SLXD4D Dual-Channel Receiver
• Two SLXD2/N8SB Handheld Transmitters
• Nexadyne 8/S Supercardioid Dynamic Microphone Capsules
• Two zippered carrying pouches
• Two WA371 mic clips
• Four AA batteries
• Antenna
• Rackmount kit
