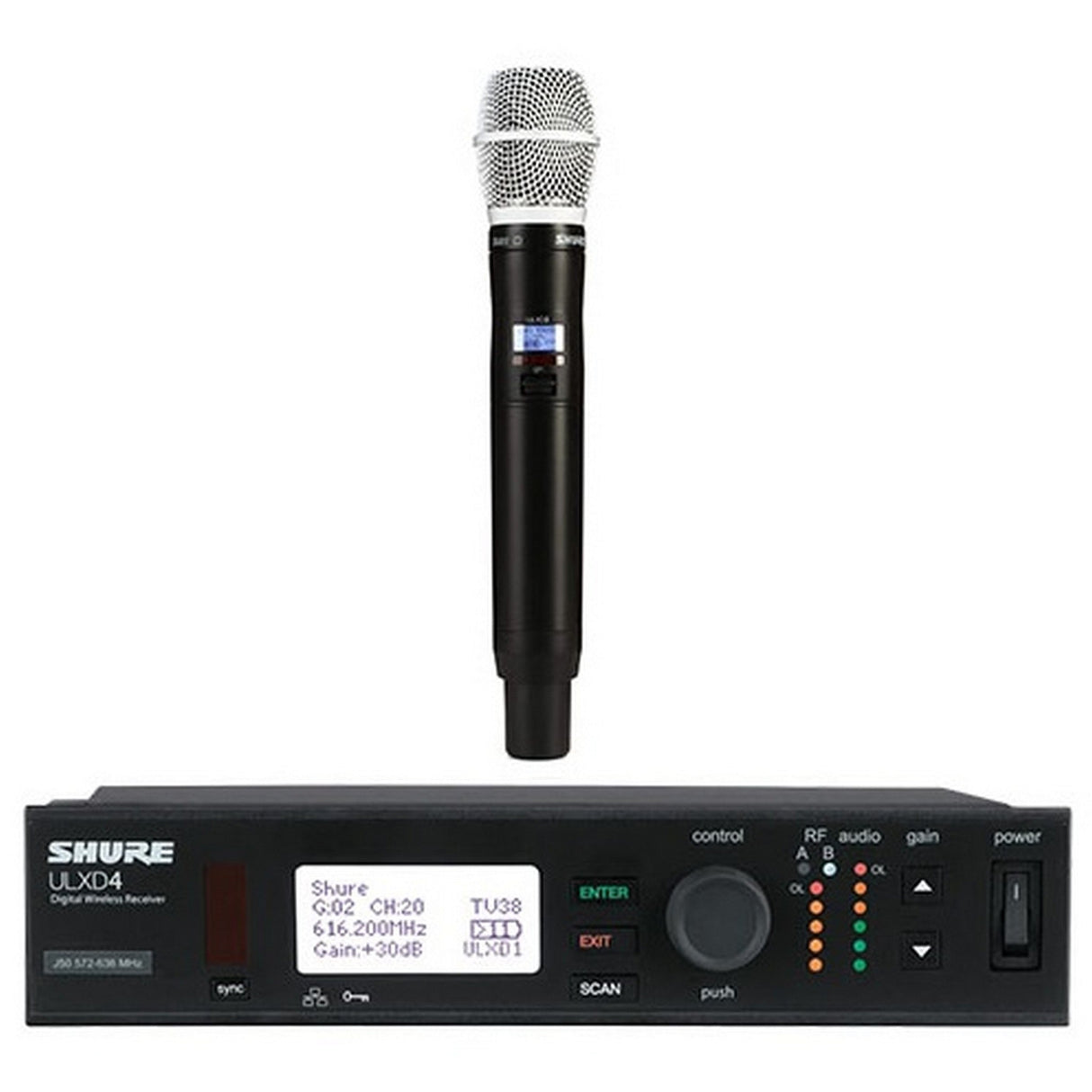

Shure ULXD24/SM86 Handheld Wireless Microphone System, H50 534-598 MHz

The Shure ULXD24/SM86 Handheld Wireless Microphone System is a professional-grade solution designed for users who demand exceptional audio quality and reliable performance. This system operates in the H50 534-598 MHz frequency band and features the renowned ULXD2/SM86 handheld transmitter, known for its crystal-clear sound reproduction and durable construction. Perfect for live sound applications, presentation environments, and secure audio transmissions, the ULXD24/SM86 is a versatile choice for any professional audio setup.

The ULXD2/SM86 transmitter works seamlessly with the ULX-D Wireless Systems, providing a 24-bit/48 kHz digital audio quality that ensures premium sound fidelity. This microphone system is equipped with advanced tech features like AES 256-bit encryption for secure transmissions, making it ideal for high-stakes environments such as corporate events and government applications. The ULXD4 receiver is a half-rack, networkable unit that further enhances the system's usability by offering interference detection, intelligent scanning, and streamlined network setups.

Thanks to its rugged metal construction and intuitive interface, the Shure ULXD24/SM86 not only promises durability but also user-friendly operation. The system is designed to perform efficiently, even in challenging environments, with predictive switching diversity and high-density mode allowing for more simultaneous operations within a 30-meter range. All these professional features make the ULXD24/SM86 an uncompromising option for those who demand the best in wireless microphone technology.

Key Features

• AES 256-bit encryption for secure transmission needs
• Proprietary Shure Gain Ranging for optimized dynamic range
• Optional Shure SB900 lithium-ion rechargeable battery for 12+ hours of life
• External charging contacts for docking
• Transmitter Mute Mode for muting without losing RF channel presence
• Backlit LCD with intuitive menu navigation
• Rugged metal construction
• Frequency and power lockout
• Predictive switching diversity for optimal performance
• High Density mode for operating more channels within 30 meters
• Intelligent scanning for finding and deploying clean frequencies
• Interference detection and alerts via receiver and Wireless Workbench 6
• Up to 60 dB additional gain via front panel adjustment buttons
• Ethernet networking for ease of multi-receiver setup
• Support for frequency coordination with Axient Spectrum Manager
• Yamaha device ID for simplified channel patching on CL consoles
• Audio and RF LED meters with peak indicator
• Remoteable 1/2 wave antennas
• Includes furnished rack hardware

Specifications

• Frequency Band: H50 534-598 MHz
• Audio Quality: 24-bit / 48 kHz digital
• Encryption: AES 256-bit
• Receiver Type: Half-rack, networkable
• Battery Life: Over 12 hours with Shure SB900 rechargeable battery
• Display: Backlit LCD with menu navigation
• Construction: Rugged metal chassis
• Compatibility: ULX-D Systems

Package Contents

• ULXD2/SM86 Handheld Wireless Microphone Transmitter
• ULXD4 Wireless Receiver
• Rack hardware
• Power supply
• User guide
