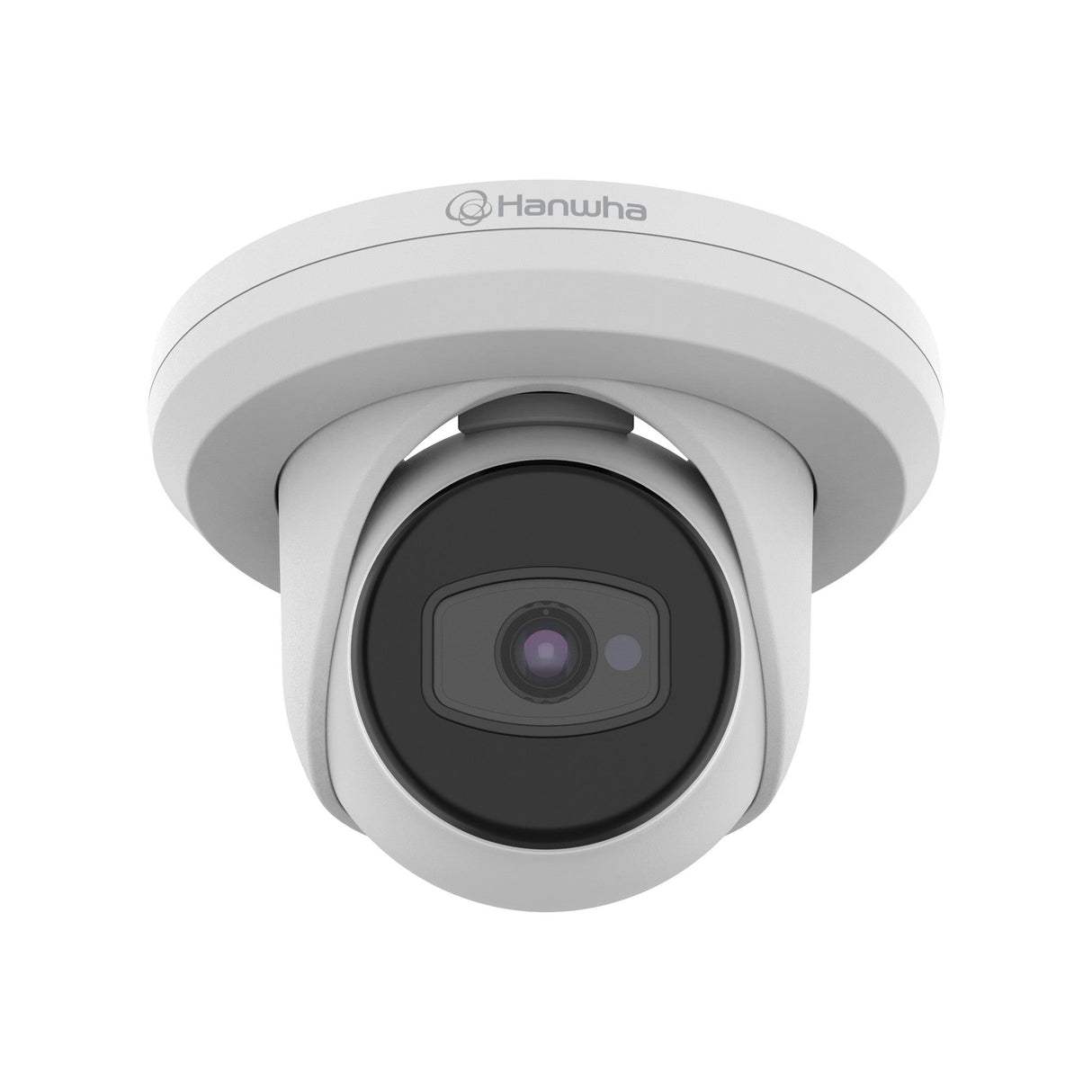

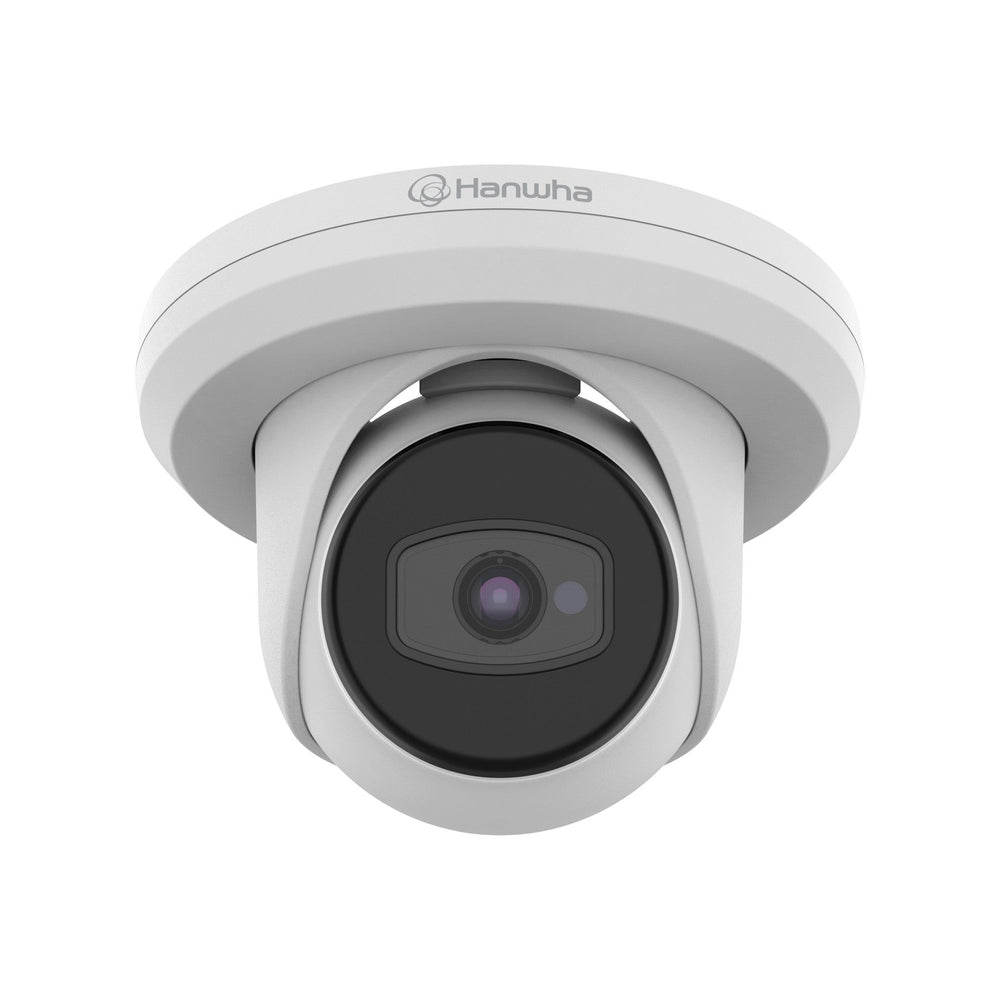

Hanwha Vision ACE-6020R: Advanced IP Camera for High-Resolution Security

The Hanwha Vision ACE-6020R is a high-performance IP camera designed to offer superior image quality and durability for comprehensive security solutions. Engineered to meet the demands of both indoor and outdoor environments, this camera provides clear and detailed video footage, ensuring enhanced surveillance and security. Its advanced technology ensures reliable performance in various lighting conditions, making it a perfect choice for safeguarding critical areas.

With its robust build and high-definition capabilities, the ACE-6020R is tailored for use in diverse settings, from commercial establishments to sensitive areas. The camera's sophisticated features, including a high-resolution imaging sensor and excellent low-light performance, guarantee detailed and accurate video capture. Integrate the ACE-6020R into your security system to benefit from its advanced specifications and reliable performance.

Key Features

• High-definition video quality for clear and detailed imagery
• Advanced low-light performance for effective night-time surveillance
• Robust and weather-resistant design for durability
• Flexible video output options for easy integration with existing systems
• Smart features for enhanced security management

Technical Specifications

Imaging Device
1/3" CMOS

Resolution
1920x1080

Max. Framerate
30fps

NETD
None

Pixel Size
None

Min. Illumination
Color: 0.08Lux (F1.6, 1/30sec) B/W: 0Lux (IR LED on)

Video Out
BNC: AHD/TVI/CVI/CVBS Selectable

Video Transmission Distance
300m (5C2V Coaxial Cable)

Lens
Focal Length (Zoom Ratio): 3.6mm fixed focal
Max. Aperture Ratio: F1.6
Angular Field of View: H: 77.6° / V: 40.3° / D: 91.5°
Min. Object Distance: 2.0m (6.56ft)

Focus Control
None

Lens Type
None

Mount Type
None

Optional Lens
None

Pan / Tilt / Rotate
Pan / Tilt / Rotate Range: None
Pan Range: None
Pan Speed: None
Tilt Range: None
Tilt Speed: None
Rotate Range: None

Sequence
None

Preset Accuracy
None

Operational
Camera Title: None
Direction Indicator: None
Day & Night: Auto (ICR)
Backlight Compensation: BLC
Wide Dynamic Range: DWDR
Digital Noise Reduction: 2D + 3DNR
Digital Image Stabilization: None
Defog: None
Motion Detection: None
Privacy Masking: None
Gain Control: LOW / MIDDLE / HIGH
White Balance: ATW / AWC
LDC: None
Electronic Shutter Speed: AUTO (1/30~1/50,000)
Digital PTZ: None
Video Rotation: MIRROR / V-FLIP / ROTATE

Analytics
None

Business Intelligence
None

Serial Interface
None

Alarm I/O
None

Alarm Triggers
None

Alarm Events
None

Audio In
None

Audio Out
None

IR Viewable Length
25m (82.02ft)

IR Illuminator (Optional)
None

Water Removal
None

Auto Tracking
None

Coaxial Protocol
ACP (AHD Coax Protocol), TCP (TVI Coax Protocol), CCP (CVI Coax Protocol), CVBS: Pelco-C (Coaxitron)

Color Palettes
None

Radiometry
Temperature Detect Range: None
Temperature Accuracy: None
Temperature Detection: None

Additional
None

Network
Ethernet: None
Video Compression: None
Audio Compression: None
Smart Codec: None
Video Quality Adjustment: None
Bitrate Control: None
Streaming: None
Protocol: None
Security: None
Application Programming Interface: None

General
Webpage Language: None
Web Viewer: None
Edge Storage: None
Memory: None

Environmental & Electrical
Operating Temperature / Humidity: -30°C~+55°C (-22°F~+131°F) / 0~90% RH
Storage Temperature / Humidity: -30°C~+60°C (-22°F~+140°F) / 0~90% RH
Certification: IP67, IK10
Input Voltage: 12VDC
Power Consumption: Max 3.6W, Typical 2.9W

Mechanical
Color / Material: White / Aluminum / Plastic
RAL Code: None
Product Dimensions / Weight: ø120x82mm (ø4.72"x3.23"), 410g (0.90lb)
Compatible Conduit hole / Gangbox: None
Hanging Mount (Dome): None
Skin Cover (Dome): None
Weather Cap (Dome): None
Power Module: None
Backbox: SBV-A14B

Certifications & Standards
Network: None
EMC: FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A)
Safety: UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environmental: None
Video: None
