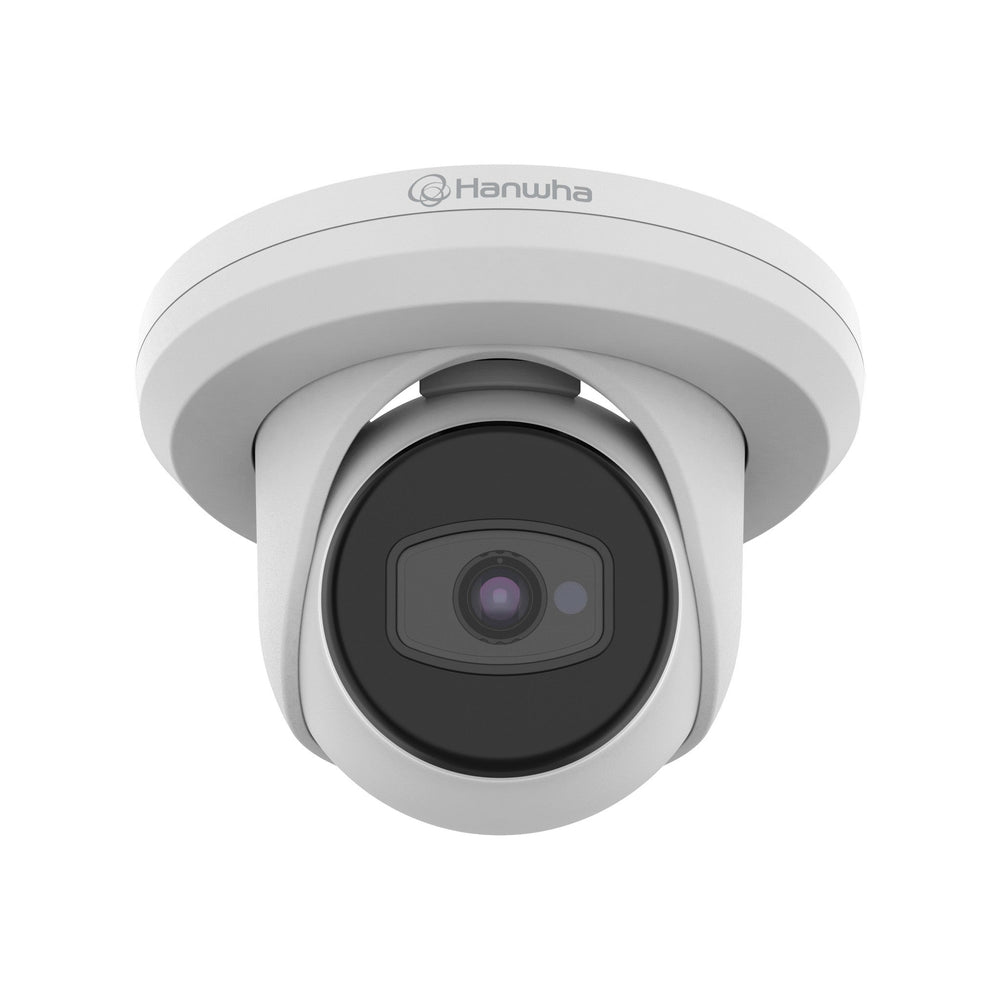

Hanwha ACE-8020R Wisenet Series 5MP Turret Camera with Day and Night Sensor and IP67

The Ace 8020R by Hanwha Vision America is an advanced surveillance camera designed to deliver top-notch video quality and exceptional reliability. Perfectly suited for high-security environments, this camera integrates cutting-edge technology with a robust design to ensure superior performance in all conditions. Whether you’re looking to enhance security for commercial properties or residential areas, the Ace 8020R offers a blend of clarity, durability, and intelligent features that meet the highest standards of modern surveillance systems.

Featuring a powerful 1/2.5" CMOS imaging device, the Ace 8020R captures video in high resolution, providing clear and detailed images even in challenging lighting conditions. Its fixed focal length lens with a wide field of view ensures comprehensive coverage, while the advanced video processing features enhance image quality and stability. With its weather-resistant design and easy integration into various setups, this camera is ideal for diverse monitoring needs.

Key Features

• High-resolution imaging for detailed video clarity.
• Fixed focal length lens with a broad angular field of view.
• Auto (ICR) day & night functionality for clear imaging in varying light conditions.
• Weather-resistant design suitable for both indoor and outdoor use.
• Advanced video processing including digital noise reduction and wide dynamic range.

Technical Specifications

Video Imaging Device
1/2.5" CMOS
Resolution
2592x1944, 2560x1440
Max. Framerate
Max. 30fps (@5MP Max. 20fps, CVI supports up to 4M)
NETD
None
Pixel Size
None
Min. Illumination
Color : 0.4Lux (F1.6, 1/30sec)
B/W : 0Lux (IR LED on)
Video Out
BNC: AHD/TVI/CVI/CVBS Selectable
Video Transmission Distance
300m (5C2V Coaxial Cable)
Lens Focal Length (Zoom Ratio)
3.6mm fixed focal
Max. Aperture Ratio
F1.6
Angular Field of View
H: 83.9° / V: 63.4° / D: 104°
Min. Object Distance
0.8m (2.62ft)
Focus Control
None
Lens Type
None
Mount Type
None
Optional Lens
None
Pan / Tilt / Rotate Range
None
Pan Range
None
Pan Speed
None
Tilt Range
None
Tilt Speed
None
Rotate Range
None
Sequence
None
Preset Accuracy
None
Operational
Camera Title
None
Direction Indicator
None
Day & Night
Auto (ICR)
Backlight Compensation
BLC
Wide Dynamic Range
DWDR
Digital Noise Reduction
2D + 3DNR
Digital Image Stabilization
None
Defog
None
Motion Detection
None
Privacy Masking
None
Gain Control
LOW / MIDDLE / HIGH
White Balance
ATW / AWC
LDC
None
Electronic Shutter Speed
AUTO (1/30~1/50,000)
Digital PTZ
None
Video Rotation
MIRROR / V-FLIP / ROTATE
Analytics
None
Business Intelligence
None
Serial Interface
None
Alarm I/O
None
Alarm Triggers
None
Alarm Events
None
Audio In
None
Audio Out
None
IR Viewable Length
20m (65.62ft)
IR Illuminator (Optional)
None
Water Removal
None
Auto Tracking
None
Coaxial Protocol
ACP (AHD Coax Protocol), TCP (TVI Coax Protocol), CCP (CVI Coax Protocol), CVBS: Pelco-C (Coaxitron)
Color Palettes
None
Radiometry
Temperature Detect Range
None
Temperature Accuracy
None
Temperature Detection
None
Additional
None
Network
Ethernet: None
Video Compression
None
Audio Compression
None
Smart Codec
None
Video Quality Adjustment
None
Bitrate Control
None
Streaming
None
Protocol
None
Security
None
Application Programming Interface
None
General
Webpage Language
None
Web Viewer
None
Edge Storage
None
Memory
None
Environmental & Electrical
Operating Temperature / Humidity
-30°C~+55°C (-22°F~+131°F) / 0~90% RH
Storage Temperature / Humidity
-30°C~+60°C (-22°F~+140°F) / 0~90% RH
Certification
IP67, IK10
Input Voltage
12VDC
Power Consumption
Max 5.4W, Typical 4.3W
Mechanical
Color / Material
White / Aluminum / Plastic
RAL Code
None
