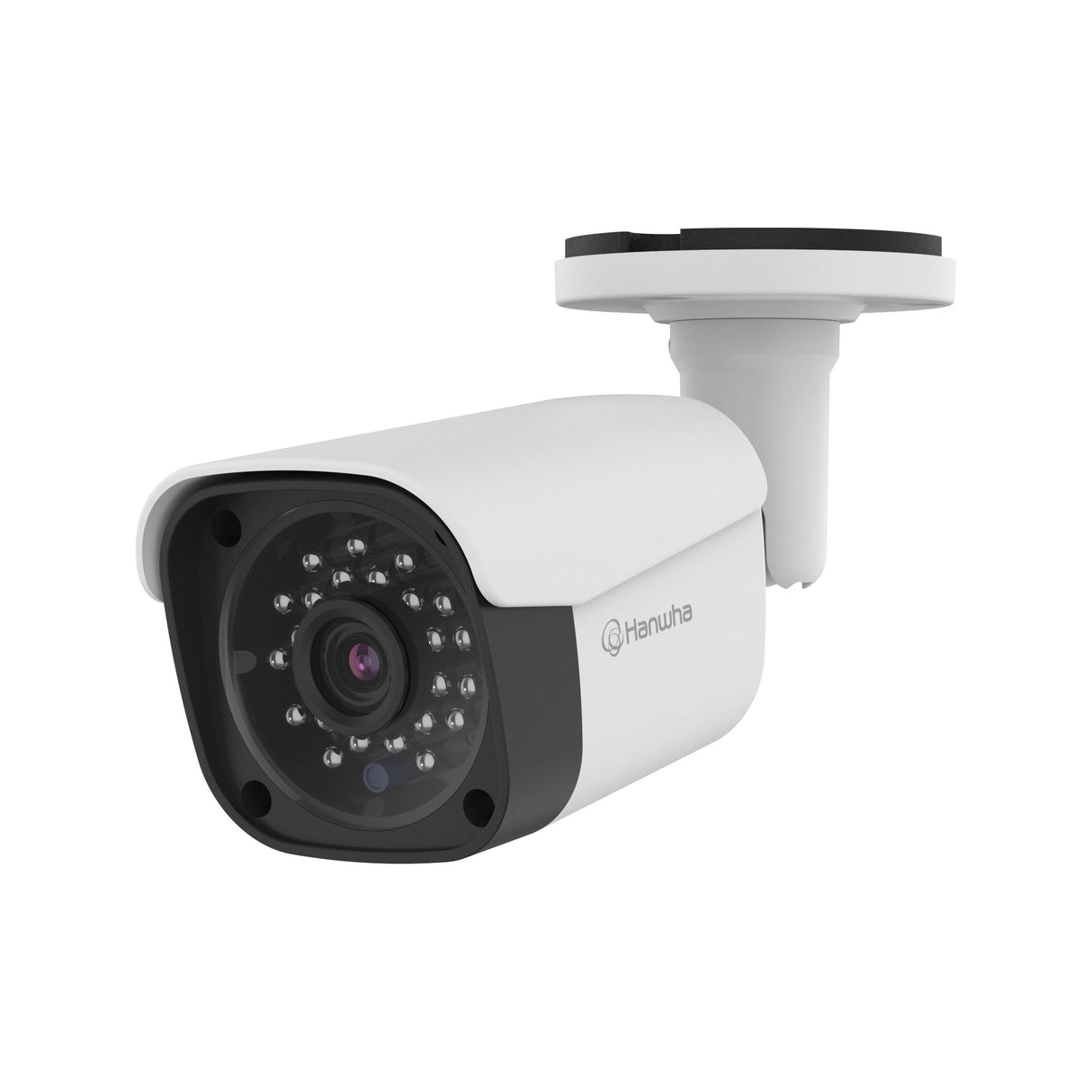

Hanwha ACO-8020R A-Series 5MP Analog HD Bullet Camera
The Hanwha Vision ACO-8020R is a premium outdoor surveillance camera designed to deliver high-resolution video and reliable performance in various weather conditions. Featuring advanced imaging technology, this camera provides exceptional clarity and detail, making it an excellent choice for both residential and commercial security needs. Its rugged design ensures durability and resistance to harsh environmental factors, while its user-friendly features guarantee ease of installation and operation.
With a high-resolution CMOS sensor and versatile video output options, the ACO-8020R captures clear and detailed footage even in challenging lighting conditions. The camera's integrated infrared capabilities allow for effective night-time surveillance, ensuring that your property is monitored around the clock. The robust build and advanced features of the ACO-8020R make it a reliable choice for enhancing security and monitoring applications.
Key Features
- High-resolution video capture for clear and detailed images.
- Durable, weather-resistant design suitable for outdoor use.
- Advanced infrared capabilities for effective low-light surveillance.
- Versatile video output options for easy integration into existing systems.
- Simple installation and user-friendly operation.
Technical Specifications
Imaging Device
1/2.5" CMOS
Resolution
2592x1944, 2560x1440
Max. Framerate
Max. 30fps (@5MP), Max. 20fps (CVI supports up to 4M)
NETD
None
Pixel Size
None
Min. Illumination
Color: 0.4Lux (F1.6, 1/30sec)
B/W: 0Lux (IR LED on)
Video Out
BNC: AHD/TVI/CVI/CVBS Selectable
Video Transmission Distance
300m (5C2V Coaxial Cable)
Lens
Focal Length (Zoom Ratio): 3.6mm fixed focal
Max. Aperture Ratio: F1.6
Angular Field of View: H: 83.9Ā° / V: 63.4Ā° / D: 104Ā°
Min. Object Distance: 0.8m (2.62ft)
Focus Control: None
Lens Type: None
Mount Type: None
Optional Lens: None
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range: None
Pan Range: None
Pan Speed: None
Tilt Range: None
Tilt Speed: None
Rotate Range: None
Sequence: None
Preset Accuracy: None
Operational
Camera Title: None
Direction Indicator: None
Day & Night: Auto (ICR)
Backlight Compensation: BLC
Wide Dynamic Range: DWDR
Digital Noise Reduction: 2D + 3DNR
Digital Image Stabilization: None
Defog: None
Motion Detection: None
Privacy Masking: None
Gain Control: OFF/LOW/MIDDLE/HIGH
White Balance: ATW / AWC
LDC: None
Electronic Shutter Speed: AUTO (1/30~1/50,000)
Digital PTZ: None
Video Rotation: MIRROR/V-FLIP/ROTATE
Analytics
None
Business Intelligence
None
Serial Interface
None
Alarm I/O
None
Alarm Triggers
None
Alarm Events
None
Audio In
None
Audio Out
None
IR Viewable Length
20m (65.62ft)
IR Illuminator (Optional)
None
Water Removal
None
Auto Tracking
None
Coaxial Protocol
ACP (AHD Coax Protocol), TCP (TVI Coax Protocol), CCP (CVI Coax Protocol)
CVBS: Pelco-C (Coaxitron)
Color Palettes
None
Radiometry
Temperature Detect Range: None
Temperature Accuracy: None
Temperature Detection: None
Additional
None
Network
Ethernet: None
Video Compression
None
Audio Compression
None
Smart Codec
None
Video Quality Adjustment
None
Bitrate Control
None
Streaming
None
Protocol
None
Security
None
Application Programming Interface
None
General
Webpage Language: None
Web Viewer: None
Edge Storage: None
Memory: None
Environmental & Electrical
Operating Temperature / Humidity: -30Ā°C~+55Ā°C (-22Ā°F~+131Ā°F) / 0~90% RH
Storage Temperature / Humidity: -30Ā°C~+60Ā°C (-22Ā°F~+140Ā°F) / 0~90% RH
Certification: IP67, IK10
Input Voltage: 12VDC
Power Consumption: Max 5.4W, Typical 4.3W
Mechanical
Color / Material: White / Aluminum / Plastic
RAL Code: None
Product Dimensions / Weight: 70(W)x69(H)x186(D)mm (2.76"x2.72"x7.32"), 420g (0.93lb)
Compatible Conduit hole / Gangbox: None
Hanging Mount (Dome): None
Skin Cover (Dome): None
Weather Cap (Dome): None
Power Module: None
Backbox: SBV-A14B
Certifications & Standards
Network: None
EMC: FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A)
Safety: UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environmental: None
