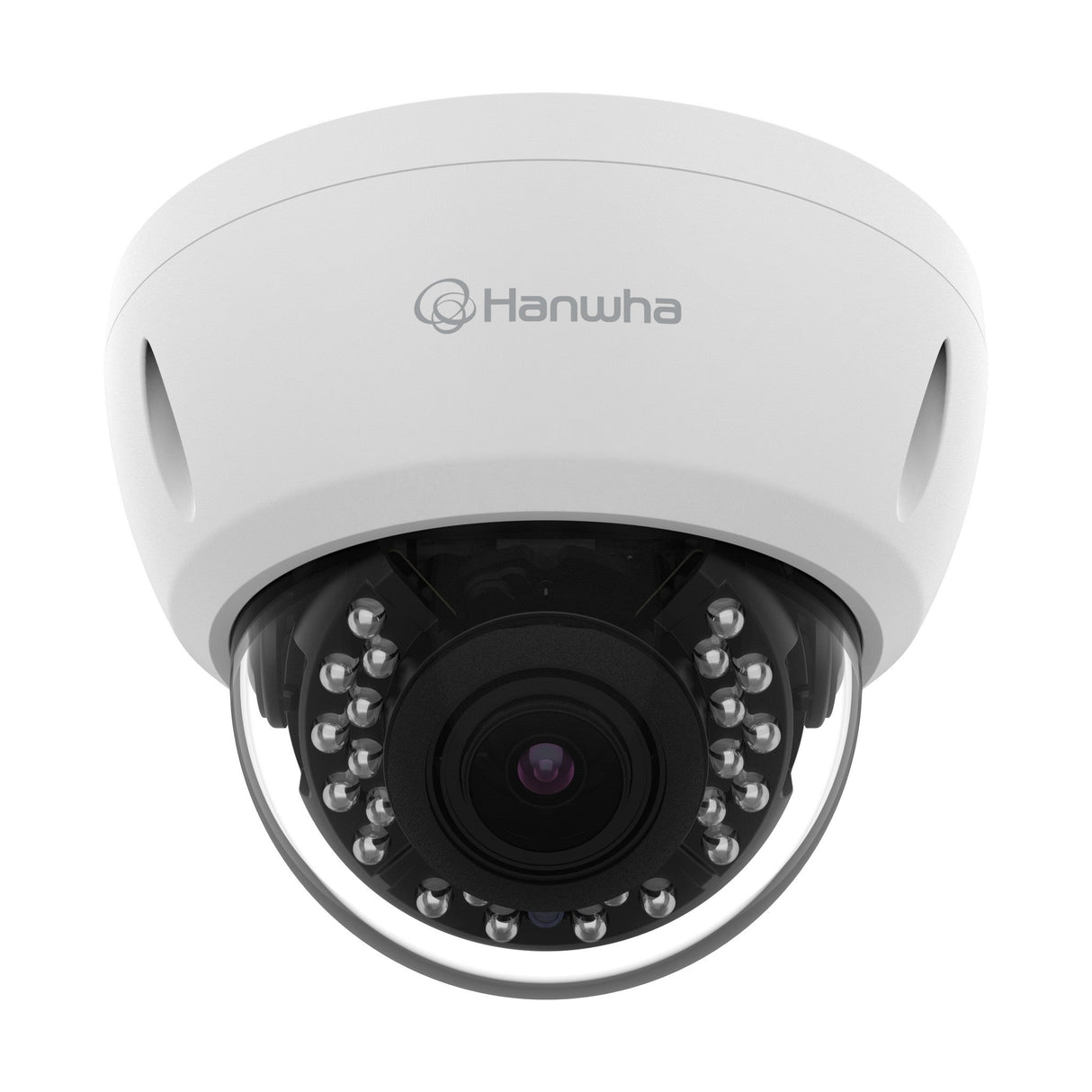

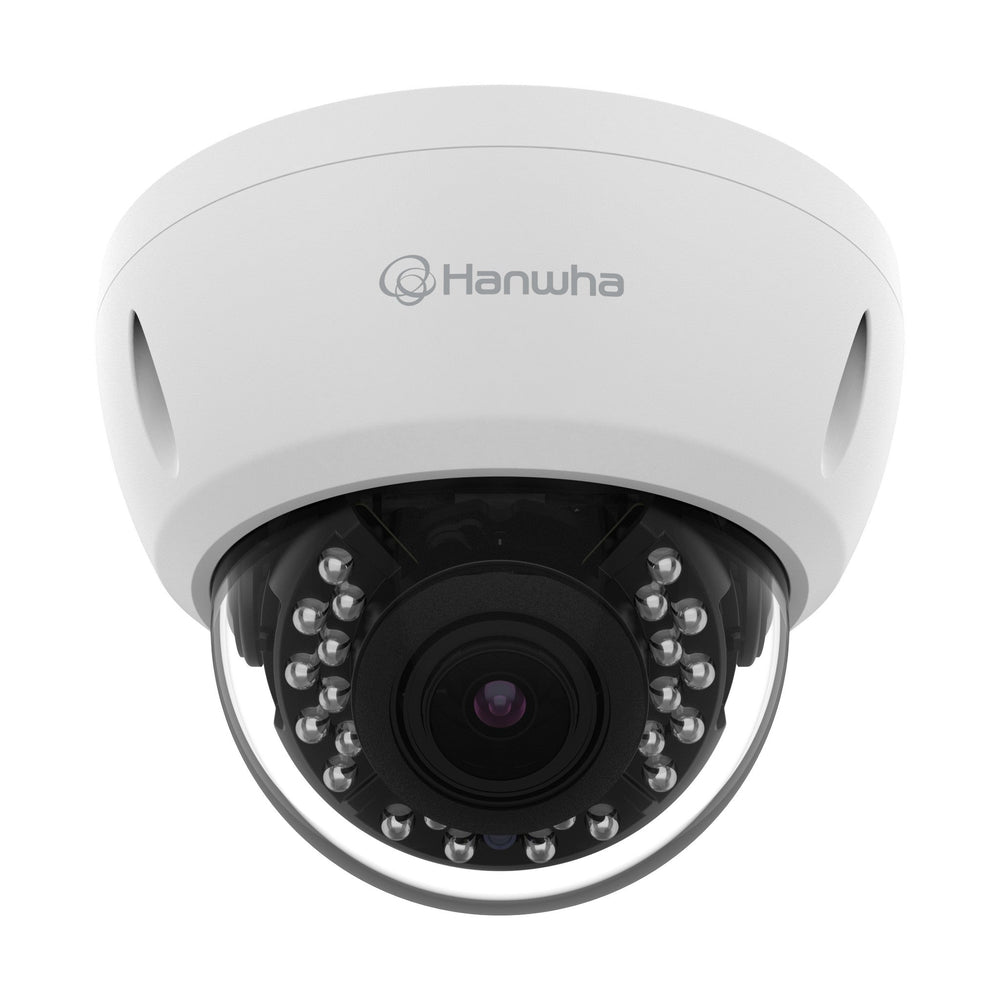

Hanwha ACV-8081R A-Series 5MP IR Vandal Dome Camera

The Hanwha Vision ACV-8081R is engineered to deliver exceptional performance and high-resolution imagery in various surveillance environments. This advanced camera is perfect for demanding security applications, combining superior image quality with robust features for reliable performance. Designed with the latest technology, the ACV-8081R ensures detailed video capture and enhanced low-light performance, making it suitable for both indoor and outdoor installations. Its versatile design allows for seamless integration into existing systems, providing clear and accurate video surveillance to meet your security needs.

Key Features

• High-resolution imaging for detailed and clear video capture
• Advanced low-light performance with IR illumination
• Flexible lens with motorized varifocal for adjustable field of view
• Robust weatherproof and vandal-resistant construction
• Easy installation and compatibility with various video formats and protocols

Technical Specifications

Imaging Device
1/2.8" CMOS
Resolution
2592x1944, 2560x1440
Max. Framerate
Max. 30fps (@5MP), Max. 20fps
NETD
None
Pixel Size
None
Min. Illumination
Color: 0.06 Lux (F1.6, 1/30 sec)
B/W: 0 Lux (IR LED on)
Video Out
BNC: AHD/TVI/CVI/CVBS Selectable
Video Transmission Distance
300m (5C2V Coaxial Cable)
Lens
Focal Length (Zoom Ratio): 3.5mm~10.5mm (3x) motorized varifocal
Max. Aperture Ratio: F1.6
Angular Field of View: H: 82° (Wide)~27° (Tele), V: 60° (Wide)~20° (Tele), D: 105° (Wide)~33° (Tele)
Min. Object Distance: 0.8m (2.62ft)
Focus Control: None
Lens Type: None
Mount Type: None
Optional Lens: None
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range: None
Pan Range: None
Pan Speed: None
Tilt Range: None
Tilt Speed: None
Rotate Range: None
Sequence: None
Preset Accuracy: None
Operational
Camera Title: None
Direction Indicator: None
Day & Night: Auto (ICR)
Backlight Compensation: BLC, WDR
Wide Dynamic Range: 95dB
Digital Noise Reduction: 2D + 3DNR
Digital Image Stabilization: None
Defog: None
Motion Detection: None
Privacy Masking: None
Gain Control: LOW / MIDDLE / HIGH
White Balance: ATW / AWC
LDC: None
Electronic Shutter Speed: AUTO (1/30~1/30,000)
Digital PTZ: None
Video Rotation: MIRROR/V-FLIP/ROTATE
Analytics
None
Business Intelligence
None
Serial Interface
None
Alarm I/O
None
Alarm Triggers
None
Alarm Events
None
Audio In
None
Audio Out
None
IR Viewable Length
25m (82.02ft)
IR Illuminator (Optional)
None
Water Removal
None
Auto Tracking
None
Coaxial Protocol
ACP (AHD Coax Protocol), TCP (TVI Coax Protocol), CCP (CVI Coax Protocol)
CVBS: Pelco-C (Coaxitron)
Color Palettes
None
Radiometry
Temperature Detect Range: None
Temperature Accuracy: None
Temperature Detection: None
Additional
None
Network
Ethernet: None
Video Compression
None
Audio Compression
None
Smart Codec
None
Video Quality Adjustment
None
Bitrate Control
None
Streaming
None
Protocol
None
Security
None
Application Programming Interface
None
General
Webpage Language: None
Web Viewer: None
Edge Storage: None
Memory: None
Environmental & Electrical
Operating Temperature / Humidity: -30°C~+55°C (-22°F~+131°F) / 0~90% RH
Storage Temperature / Humidity: -30°C~+60°C (-22°F~+140°F) / 0~90% RH
Certification: IP66, IK10
Input Voltage: 12VDC
Power Consumption: Max 7.2W, Typical 5.8W
Mechanical
Color / Material: White / Aluminum / Plastic
RAL Code: None
Product Dimensions / Weight: ø132x103mm (ø5.20"x4.06"), 550g (1.21lb)
Compatible Conduit hole / Gangbox: None
Hanging Mount (Dome): None
Skin Cover (Dome): None
Weather Cap (Dome): None
Power Module: None
Backbox: SBV-A14B
Certifications & Standards
Network: None
EMC: FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A)
Safety: UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environmental: None
Video: None
