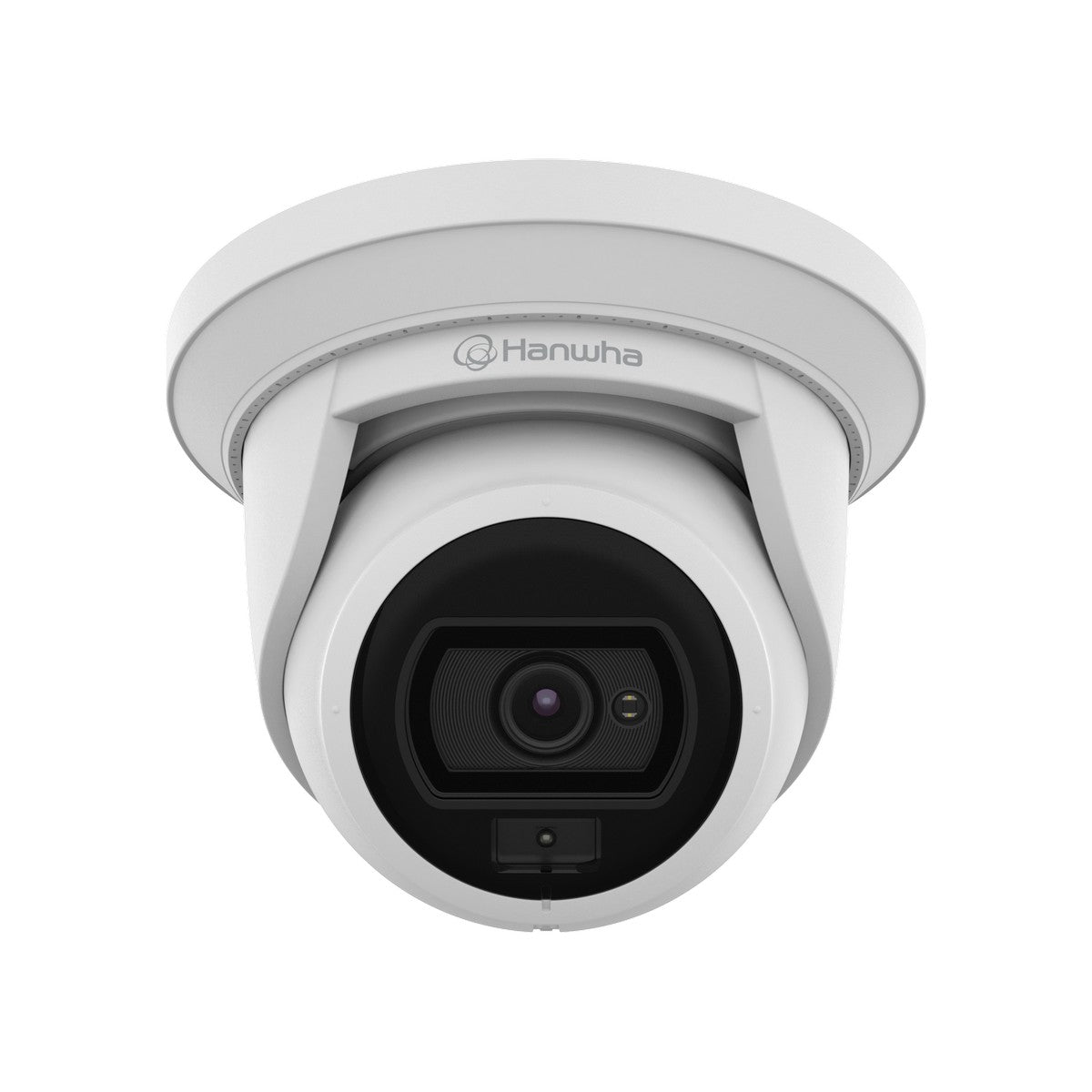

Hanwha ANE-L7012L 4MP IP66 Flateye Camera, 3mm Fixed Lens, White

Hanwha | SKU: HAN-ANEL7012L
1 4
$22950

Free Shipping

Estimated Shipping Widget will be displayed here!

Condition: New

Hanwha ANE-L7012L 4MP IP66 Flateye Camera, 3mm Fixed Lens, White

Introducing the Wisenet a Series White Light Flateye Camera - Now Offering 24-Hour Color Video
Take advantage of crystal-clear footage with 4-megapixel (2560 x 1440) resolution, H.265/H.264, and 30fps at all resolutions. The camera comes with a built-in 3mm fixed lens and an impressive FoV of H: 98.3° / V: 54.2°. Plus, with the Micro SD/SDHC memory slot, you can store up to 32GB of data.

Key Features

  • Resolution: 4-megapixel (2560 x 1440)
  • Lens: Built-in 3mm fixed lens with FoV H: 98.3° / V: 54.2°
  • Frame Rate: 30fps at all resolutions (H.265/H.264)
  • Codec: H.265/H.264, MJPEG triple codec
  • Features: Day & Night (ICR), WDR (120dB)
  • Advanced Analytics: virtual area (intrusion/enter/exit), virtual Line (crossing/direction), motion detection, tampering
  • Storage: Micro SD/SDHC memory slot (Max. 32GB)
  • Power: PoE powered
  • Additional Features: Hallway view, WiseStream II support
  • Durability: IP66, IK10 support

Technical Specifications

Video
Imaging Device
1/2.8” CMOS
Resolution
2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate
H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps (@4MP Max. 2fps)
NETD
None
Pixel Size
None
Min. Illumination
Color: 0.05Lux (F1.2, 1/30sec)
Video Out
None
Video Transmission Distance
None
Lens
Focal Length (Zoom Ratio)
3.0mm fixed focal
Max. Aperture Ratio
F1.2
Angular Field of View
H: 97° / V: 53° / D: 113°
Min. Object Distance
1.1m(3.6ft)
Focus Control
Fixed
Lens Type
None
Mount Type
None
Optional Lens
None
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range
0 Degrees ~350 Degrees / 0 Degrees 75 Degrees / 0 Degrees ~360 Degrees
Pan Range
None
Pan Speed
None
Tilt Range
None
Tilt Speed
None
Rotate Range
None
Sequence
None
Preset Accuracy
None
Operational
Camera Title
Displayed up to 85 characters
Direction Indicator
None
Day & Night
Auto (ICR)
Backlight Compensation
BLC, WDR, SSDR
Wide Dynamic Range
120dB
Digital Noise Reduction
SSNR
Digital Image Stabilization
None
Defog
None
Motion Detection
4ea, polygonal zones
Privacy Masking
6ea, rectangular zones
Gain Control
Low / Middle / High
White Balance
ATW / AWC / Manual / Indoor / Outdoor
LDC
Support
Electronic Shutter Speed
Minimum/Maximum/Anti flicker (1/5~1/12,000sec)
Digital PTZ
None
Video Rotation
Flip, Mirror, Hallway view (90°/270°)
Analytics
Motion detection, Tampering, Defocus detection, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction)
Business Intelligence
None
Serial Interface
None
Alarm I/O
None
Alarm Triggers
Analytics, Network disconnect
Alarm Events
When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Handover (PTZ preset) - Light alarm
Audio Streaming
None
Audio In
None
Audio Out
None
Light Type
Warm color (3000K)
Light Viewable Length
20m(65.61ft)
IR Viewable Length
None
IR Illuminator (Optional)
None
IR Radiation angle
None
IR LED
None
IR Wavelength
None
IR Operation
None
Water Removal
None
Auto Tracking
None
Coaxial Protocol
None
Color Palettes
None
Radiometry
Temperature Detect Range
None
Temperature Accuracy
None
Temperature Detection
None
Additional
None
Network
Ethernet
RJ-45 (10/100BASE-T)
Video Compression
H.265/H.264: Main/High, MJPEG
Audio Compression
None
Smart Codec
Manual (5ea area), WiseStreamⅡ
Video Quality Adjustment
H.265/H.264: Target bitrate level control MJPEG: Quality level control
Bitrate Control
H.264/H.265: CBR or VBR MJPEG: VBR
Streaming
Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles)
Protocol
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
SIP support (VoIP, Peer-to-peer, SIP/PBX integration)
None
Security
None
Application Programming Interface
ONVIF Profile S/G/T, SUNAPI (HTTP API)
Security
OS / Firmware Protect
Firmware encryption
User authentication
Digest Authentication, Prevent brute-force attack
Network authentication
802.1X Authentication (EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication
HTTPS, SRTP, WSS (Websocket secure)
Access Control
Access control based on IP address
Data Protect
Authentication information encryption, ZIP compression encryption
Audit
User Access/System/Event log management
Device ID
Device Certificate (Hanwha Private Root CA)
Secure Storage
SDcard partition encrypt
Security Certificate
None
General
Webpage Language
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer
None
Edge Storage
Micro SD/SDHC/SDXC 1slot 128GB
Memory
512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity
-30 Degrees C~+55 Degrees C (-22 Degrees F ~ +131 Degrees F) / 0~95% RH * Start up should be done at above -20 Degrees C (-4 Degrees F)
Storage Temperature / Humidity
-30 Degrees C ~ +55 Degrees C (-22 Degrees F ~ +131 Degrees F) / 0~95% RH
Certification
IP66, IP67, IK10
Input Voltage
PoE (IEEE802.3af, Class3)
Power Consumption
Max: 7.6W, Typ: 4.2W
Mechanical
Color / Material
White / Plastic, Aluminum
RAL Code
RAL9003
Product Dimensions / Weight
ø125.0x87.4mm (ø4.92x3.44”), 620g
Compatible Conduit hole / Gangbox
None / Single, Double, 4” Octagon
Hanging Mount (Dome)
SBP-125HMW
Skin Cover
None
Skin Cover (Dome)
None
Weather Cap (Dome)
None
Power Module
None
Backbox
SBV-125BW
Certifications & Standards
Network
None
EMC
FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
Safety
UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471
Environment
IEC/EN 63000 IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10
Video
None
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)
45.3m(148.62ft)
Observe (63PPM/ 19PPF)
18.1m(59.45ft)
Recognize (125PPM/ 38PPF)
9.1m(29.72ft)
Identify (250PPM/ 76PPF)
4.5m(14.86ft)
LPR/ANPR/MMCR
Speed Description
None
Speed limit
None
Min. Forward Distance
None
Max. Forward Distance
None
Max. Horizontal Angle
None
Max. Vertical Angle
None
Horizontal Offset
None
Camera Height
None
Lane Coverage
None
Vehicle Recognition
None
Available Countries
None
Wisenet Road AI LPR/ANPR/MMCR
Solution
None
Speed Description
None
Lane Coverage
None
Speed limit
None
Min. Forward Distance
None
Max. Forward Distance
None
Max. Horizontal Angle
None
Max. Vertical Angle
None
Horizontal Offset
None
Camera Height
None
Vehicle Recognition
None
Available Countries
None
