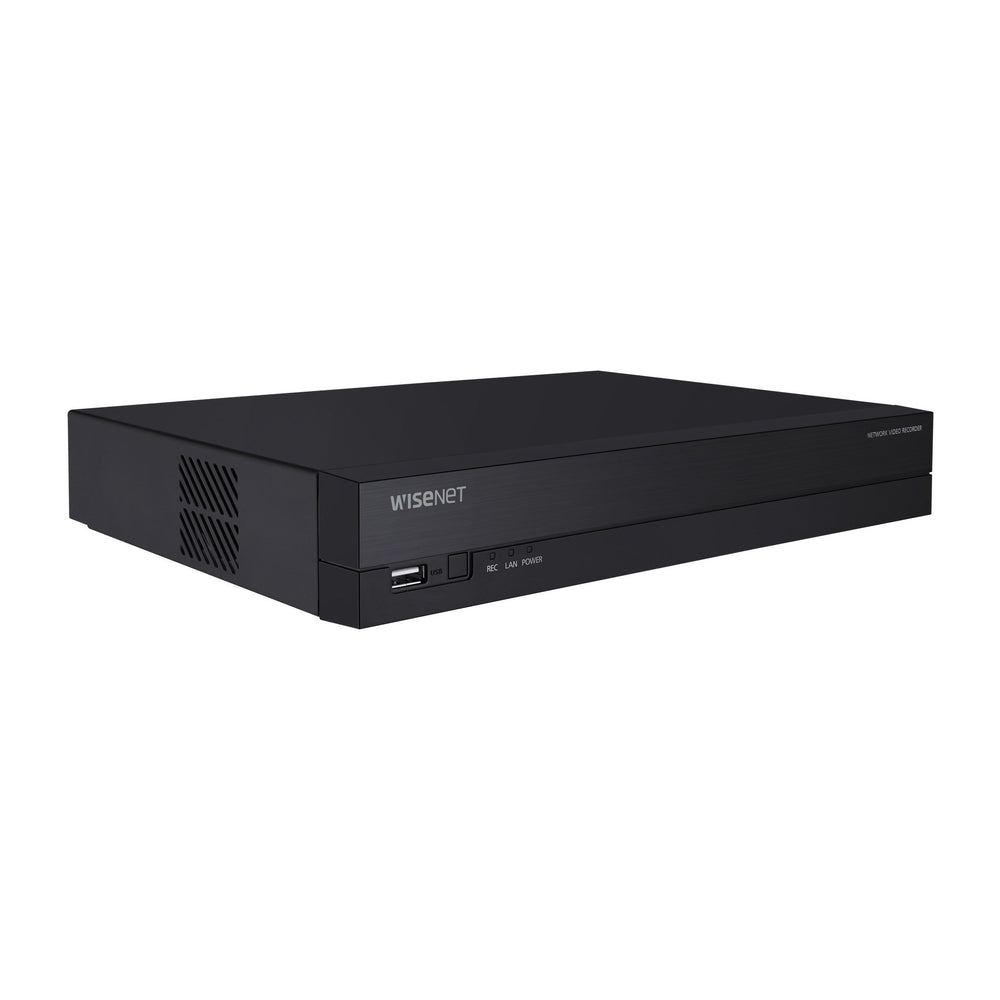

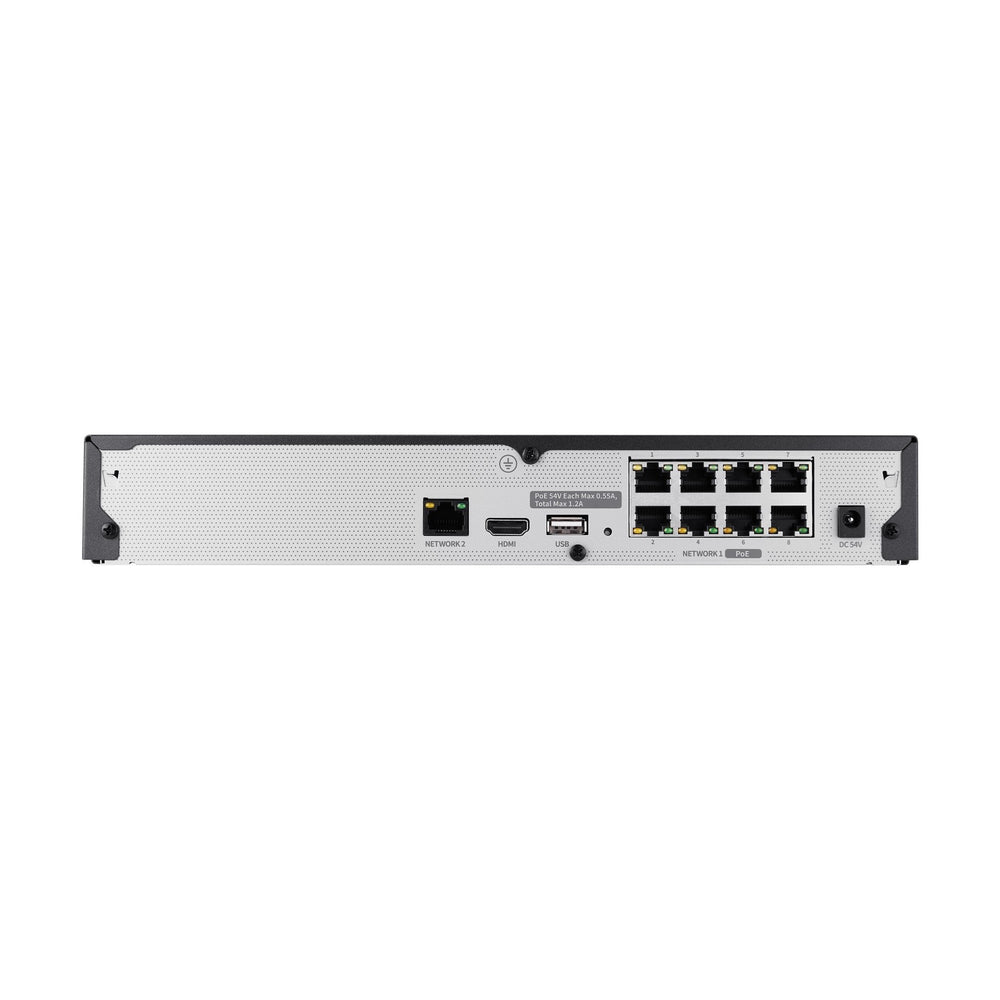

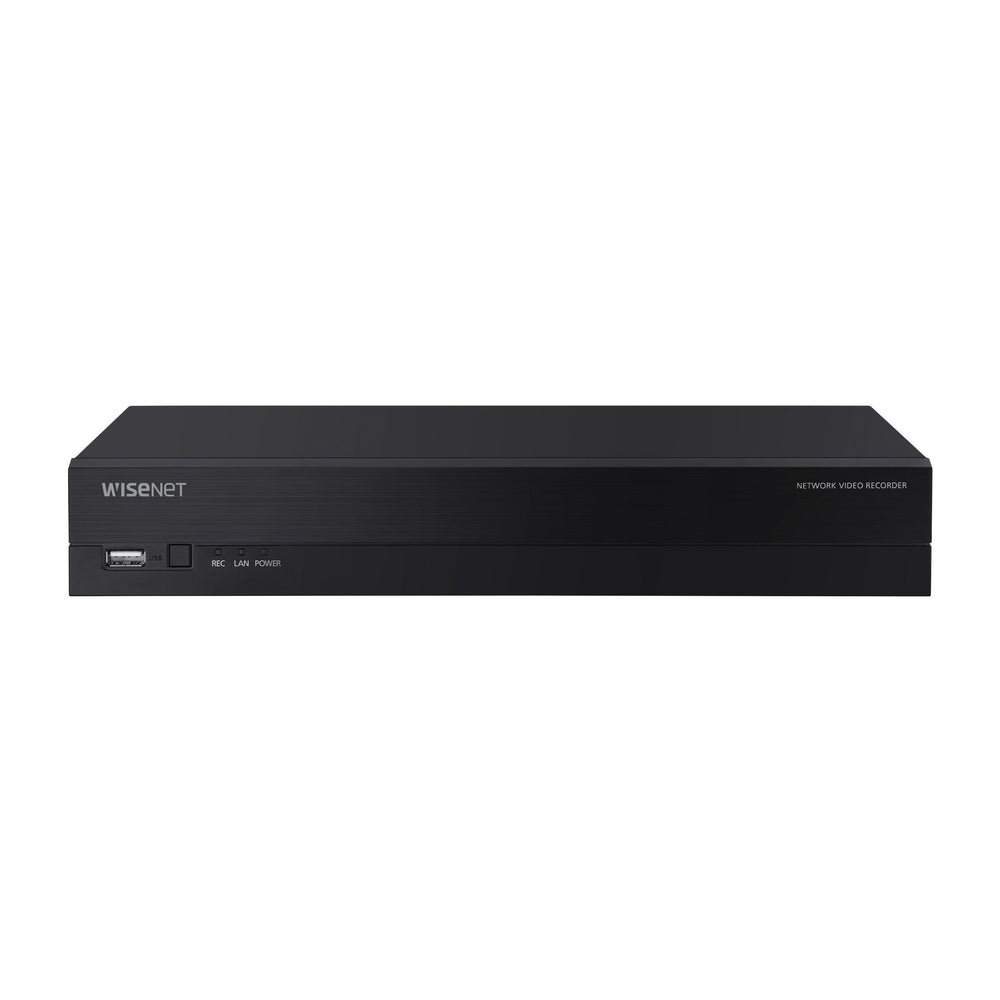

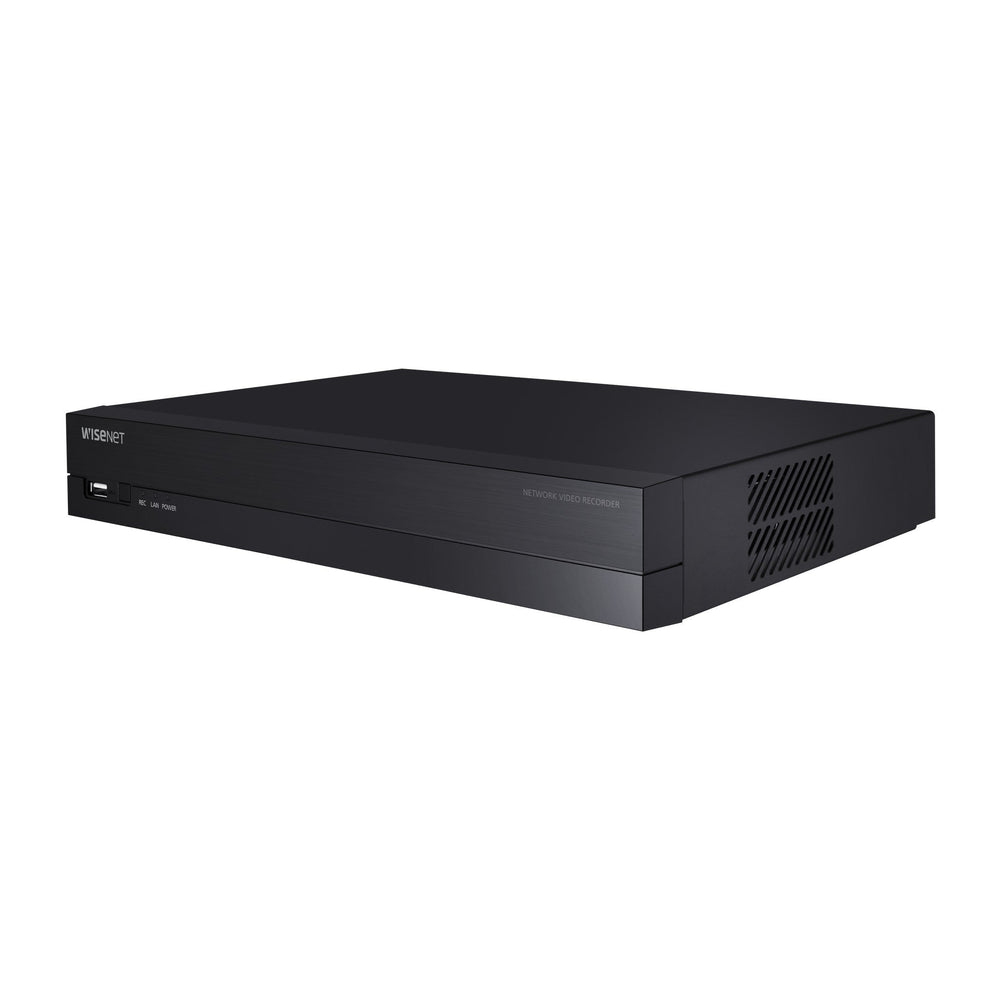

Hanwha ARN-810S 8-Channel 65W PoE Network Video Recorder

Introducing the ARN-810S Network Camera from Hanwha Vision, a high-end surveillance solution designed to offer exceptional image clarity and reliable performance. This advanced network camera is perfect for various applications, providing high-resolution video capture and robust features that enhance your security system's capabilities. Its sophisticated design ensures easy integration and durability, making it an ideal choice for both commercial and residential environments.

The ARN-810S excels in performance with its impressive array of features. It supports up to 8 channels of input and offers a wide range of resolutions from CIF to 8MP. The camera's decoding capabilities include HDMI for local display and supports multiple screen displays for flexible viewing options. With an embedded Linux operating system and comprehensive recording features including H.265, H.264, and MJPEG compression, the ARN-810S ensures efficient video storage and playback. Advanced search functionalities and support for a variety of backup methods further enhance its usability.

Equipped with extensive network protocols and robust security features, the ARN-810S facilitates seamless connectivity and secure data management. Its user-friendly interface supports various web browsers and operating systems, making it accessible from multiple platforms. The camera also includes options for easy configuration and remote control, ensuring that managing your surveillance system is straightforward and efficient.

Key Features

• Supports up to 8 channels of video input
• High-definition video resolutions from CIF to 8MP
• Decoding via HDMI and multi-screen display options
• Embedded Linux operating system for reliable performance
• Comprehensive recording features with multiple compression options
• Advanced search and playback capabilities
• Extensive network protocol support and robust security features
• Easy configuration with P2P and QR code support

Technical Specifications

Display
Network camera

Inputs
Max. 8CH

Resolution
8MP ~ CIF

Protocols
SUNAPI, ONVIF

Local Display
HDMI

Multi Screen Display
[Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9/ Sequence
[Web] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9

Decoding Resolution
[Local Monitor] 8M (30fps), 1080p (120fps), 720P (120fps), D1 (120fps)

Operating System
Embedded Linux

Compression
H.265, H.264, MJPEG

Recording Bandwidth
Max. 60Mbps

Recording Resolution
8MP ~ CIF

Recording Mode
Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark

Event Trigger
Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event

Event Action
e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out

Playback Bandwidth
Max. 32Mbps

User
Max. 4 Users (Local 1, Remote 3)

Simultaneous Playback
Max. 16CH (Local 4CH, Remote 4CH per user)

Playback Mode
Date & Time (Calendar), Event list, Text Search, Smart Search

Playback Resolution
CIF ~ 8MP

Playback Control
Fast/Slow Forward / Backward, Move one step Up / Down

Supported HDD
Up to 6TB

HDD Slot
SATA 1ea (Max. 6TB)

File Backup
BU/Exe (GUI), JPG/AVI (Network)

Backup Function
Multi-channel (Up to 4CH) Play, Date-Time/Title display

Network Protocol
IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client)

DDNS
Hanwha DDNS

Transmission Bandwidth
Max. 60Mbps

Audio Input/Output
8 CH (network)

Audio Compression
G.711, G.726, AAC (16/48KHz)

Audio Communication
2-Way

Max Remote Users
Search (3), Live Unicast (10), Multicast (20)

Security
IP address filtering, User access Log, 802.1x, Encryption Device certificate (Hanwha Techwin Root CA), Signed firmware

Web Viewer Supported OS
Windows 10, macOS 10.13

Web Viewer Supported Browser
Google Chrome, Microsoft Edge, Mac Safari

Viewer Software
WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile Support CGI (SUNAPI) for integration to 3rd party VMS

Camera Setup Register
Auto, Manual

Camera Setup Item
IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage

PTZ Control
Via GUI, Webviewer

PTZ Preset
300 Presets

Smartphone Support Model
iOS, Android

Smartphone Protocol Support
RTP, RTSP, HTTP, CGI (SUNAPI)

Smartphone Control
Live 4CH (Multi-Profile Support), Playback 4CH

Smartphone Max. Remote Users
Search (3), Live Unicast (10)

Redundancy Failover
N+1

Redundancy ARB
Support

Easy Configuration
P2P (QR code)

Front Indicator
Power, Record, Network

Reset
Support
