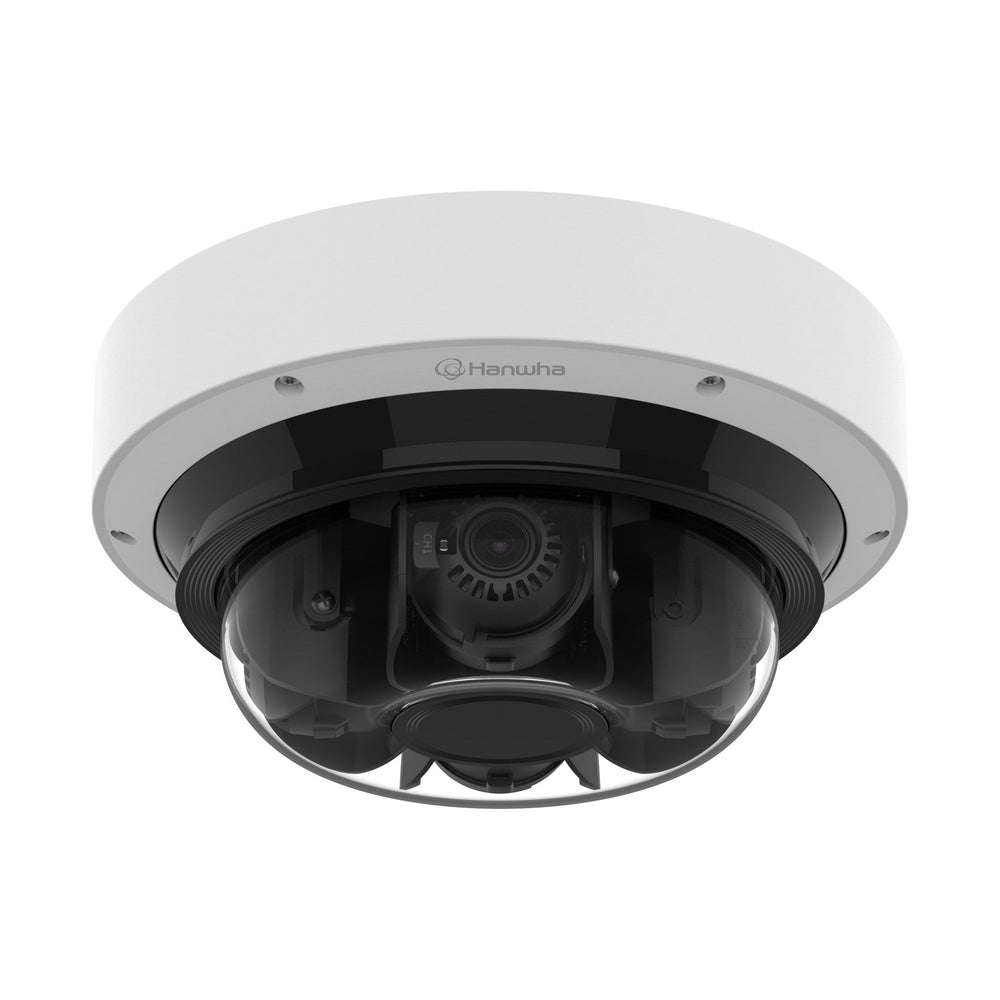

Hanwha PNM-C32083RVQ 4K 4-Channel Smart Camera with IP66 Protection
Hanwha PNM-C32083RVQ 4K 4-Channel Smart Camera with IP66 Protection
Free Shipping
Hanwha PNM-C32083RVQ Camera - Advanced 4K Security Surveillance
Upgrade your surveillance capabilities with the Hanwha PNM-C32083RVQ camera, designed to deliver exceptional image clarity and reliability. This advanced camera features a high-resolution 4K imaging sensor, ensuring detailed and accurate video capture for comprehensive security monitoring. Whether in daylight or low-light conditions, the PNM-C32083RVQ excels with its superior low-light performance, making it ideal for 24/7 surveillance.
Engineered with durability in mind, the PNM-C32083RVQ is built to withstand various environmental conditions, making it a robust choice for outdoor applications. Its versatile design supports a range of mounting options and integrates advanced video analytics to enhance incident detection and response. With its powerful zoom capabilities and intelligent features, this camera ensures broad coverage and precise monitoring in diverse settings.
Key Features
- 4K Ultra HD resolution for superior image clarity
- Advanced low-light performance for reliable 24/7 surveillance
- Durable construction for outdoor use
- Flexible mounting options for various installations
- Powerful zoom and advanced analytics for detailed monitoring
Technical Specifications
Imaging Device
1/2.8" CMOS x 4CH
Resolution
3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate
[AI On] H.265/H.264: Max. 15fps/15fps (60Hz/50Hz) MJPEG: Max. 15fps/15fps (@8MP Max. 5fps)
[AI Off] H.265/H.264: Max. 20fps/20fps (60Hz/50Hz) MJPEG: Max. 20fps/20fps (@8MP Max. 5fps)
NETD
None
Pixel Size
None
Min. Illumination
Color: 0.1Lux (F1.5, 1/30sec, 30IRE) BW: 0.01Lux (F1.5, 1/30sec, 30IRE), 0Lux (IR LED on)
Video Out
USB: Micro USB Type B, 1280x720 for installation
Video Transmission Distance
None
Lens
Focal Length (Zoom Ratio)
3.3~5.7mm (1.7x) motorized varifocal
Max. Aperture Ratio
F1.5 (Wide) ~ F1.9 (Tele)
Angular Field of View
H: 109Ā° (Wide) ~ 56Ā° (Tele) V: 55Ā° (Wide) ~ 31Ā° (Tele) D: 136Ā° (Wide) ~ 65Ā° (Tele)
Min. Object Distance
1.3m (4.27ft)
Focus Control
Simple focus
Lens Type
Fixed iris
Mount Type
None
Optional Lens
None
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range
0Ā° ~ 360Ā° / 0Ā° ~ 65Ā° / 0Ā° ~ 90Ā°
Pan Range
None
Pan Speed
None
Tilt Range
None
Tilt Speed
None
Rotate Range
None
Sequence
None
Preset Accuracy
None
Operational
Camera Title
Displayed up to 85 characters
Direction Indicator
None
Day & Night
Auto (ICR)
Backlight Compensation
BLC, WDR, SSDR
Wide Dynamic Range
120dB
Digital Noise Reduction
SSNRā
¤, WiseNRā
” (Based on AI engine)
Digital Image Stabilization
None
Defog
None
Motion Detection
8ea, 8point Polygonal zones
Privacy Masking
6ea, rectangular zones - Color: Grey/Black/White
Gain Control
Low / Middle / High
White Balance
ATW / AWC / Manual / Indoor / Outdoor
LDC
Support
Electronic Shutter Speed
Minimum / Maximum / Anti flicker (2~1/12,000sec) Prefer shutter control (Based on AI engine)
Digital PTZ
None
Video Rotation
Flip, Mirror, Hallway view (90Ā°/270Ā°) - Each channel separately
Analytics
Classified object type: Person/Face/Vehicle/License plate
Attributes: Vehicle (Type: car/bus/truck/motorcycle/bicycle)
Support BestShot Analytics events based on AI engine - Object detection, Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit)
Analytics events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area (Appear/Disappear)
Business Intelligence
None
Serial Interface
None
Alarm I/O
2 configurable I/O ports * Support extra alarm I/O via optional SPM-4210 I/O box
Alarm Triggers
Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm Events
When alarm trigger occurred - File upload (image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication
Audio Streaming
None
Audio In
Selectable (mic in/line in)
Audio Out
Line out
Light Type
None
Light Viewable Length
None
IR Viewable Length
WiseIR 15m (49.21ft)
IR Illuminator (Optional)
None
IR Radiation Angle
None
IR LED
None
IR Wavelength
None
IR Operation
None
Water Removal
None
