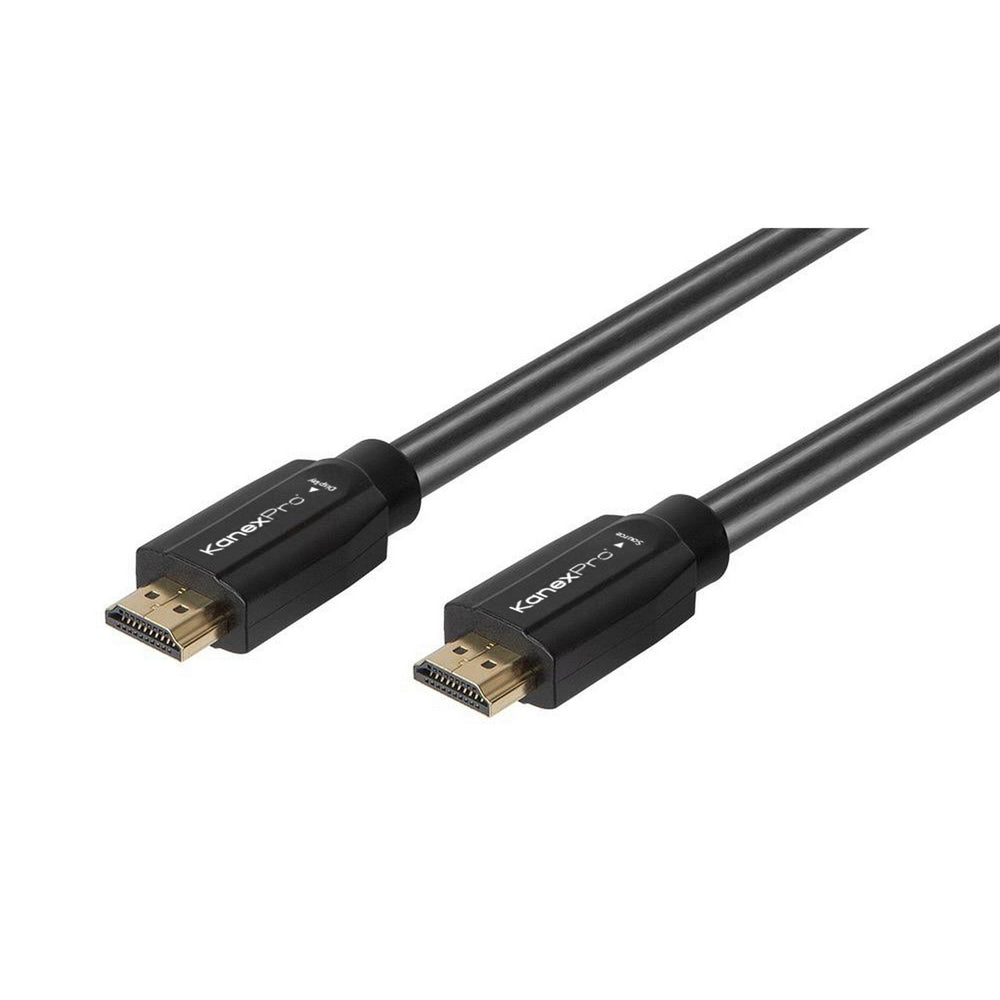

KanexPro CBL-HT7180HDMI75FT Active High Speed CL3 Rated HDMI Cable, 75-Feet

KanexPro Active High Speed HDMI Cables let you connect an HDMI source, distribution amplifier, extender or computer to an HDMI enabled display. These rated cables are available in the right lengths ideal for running through walls, between floors, and top performance is a must.

Next generation active HDMI cables are designed for next generation 4K UHD content. The KanexPro active HDMI cable delivers uncompressed full bandwidth 10.2Gbps HDMI content up to 100ft using the latest transmission technology whilst supporting additional HDMI features such as CEC and ARC. Delivering 10.2Gbps of bandwidth means that these cables are guaranteed to work with modern 4K equipment. Active HDMI Cables make sure that the signal reaches its destination and should be your only choice for all your 4K and High Speed HDMI display needs. Backed by KanexPro’s 3 Year warranty, rest assured that this cable will provide years of flawless 4K performance.

Key Features

• Spectra7 Active transmission technology
• Active technology delivers 10.2Gbps HDMI content at 4K/30Hz or 1080p/60Hz
• Gold plated connectors prevent corrosion for when deployed on long term projects
• UL CL3 fire safety rating makes It'safe for use in walls of commercial and residential buildings
• Supports HD Multichannel audio up to DTS:X and Dolby Atmos
• Supports SA-CD, DVD-Audio, DTS-HD Master Audio, Dolby TrueHD, and other high-definition audio standards
• Supports Deep Color, up to 16-bits per channel, including Sony's x.v.Color standard
• Supports extended CEC (Consumer Electronics Control) commands and functions, the HDMI Ethernet Channel, and the Audio Return Channel features
• ARC and CEC enabled for true native HDMI communication
• Supports HDCP 2.2 content encryption
• Reliable data transfer with 0% signal loss
• No external power required
• Low power consumption
• Compatible with Apple TV 4K, MacBook, Media Players, Distribution Amplifiers, Extender, Converters, Gaming Systems, Xbox One, PlayStation 4, PCs, and HDMI enabled device.
• Available in lengths of 75ft and 100ft

Technical Specifications

Bandwidth
10.2Gbps
Color Depth
1080p 16bit | 4K UHD 8bit | HDR @24p 10bit BT .2020
Maximum Pixel Clock
600MHz
Audio Return Channel (ARC)
Supported
Connector Dimensions
40.65mm x 20mm x 12mm
Cable Length
75ft 22875mm +/- 200mm
Cable Length
100ft 30,500mm +/- 200mm
Cable Construction
PVC Jacket, Aluminum Connector
Safety and Emission
CE | FCC | RoHS
Ratings
CL3 Rating
